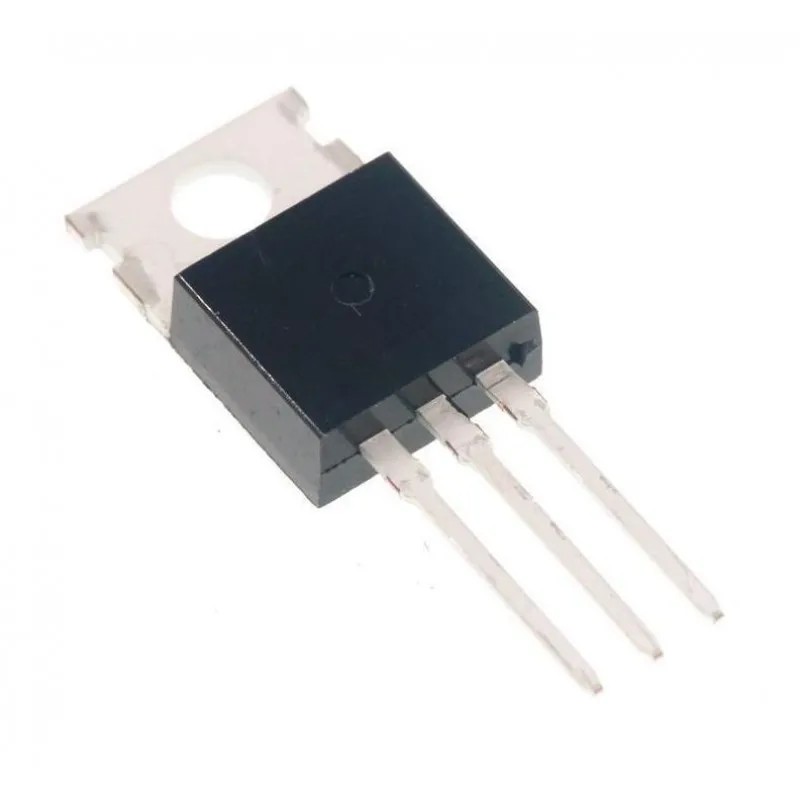

- IGP15N60T IGBT - 600V 15A Low Loss IGBT
Click Image to Preview
IGP15N60T IGBT - 600V 15A Low Loss IGBT
Brand: Generic | SKU: 9241728
₹ 294.00
₹ 551.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
The IGP15N60T is a low loss IGBT : IGBT in TRENCH STOPâ„¢ and Field stop technology. It is designed for frequency converters and Uninterrupted Power Supply.
The T RENCH STOP™ and Field stop technology for 600V applications offers :
- very tight parameter distribution
- high ruggedness, temperature stable behavior
- very high switching speed
Features:-
•  Very low VCE (sat) 1.5V (typ.)
• Maximum Junction Temperature 175°C
• Short circuit withstand time 5µs
• Positive temperature coefficient in VCE(sat)
• Low EMI
• Pb-free lead plating; RoHS compliant
• Qualified according to JEDEC1 for target applications
Specification:-
| Symbol | Parameter | Ratings | Units |
| VCE | Collector-emitter voltage, Tj ≥ 25°C | 600 | V |
| IC | DC collector current, limited by Tjmax |
|
A |
| TC = 25°C, value limited by bond wire | 26 | ||
| TC = 100°C | 23 | ||
| ICpuls | Pulsed collector current, tp limited by Tjmax | 45 | |
|
|
Turn off safe operating area, VCE = 600V, Tj = 175°C, tp = 1µs | 45 | |
| VGE | Gate-emitter voltage | ±20 | V |
| tsc | Short circuit withstand time V | 5 | µs |
| GE = 15V, VCC ≤ 400V, Tj ≤150°C |
|
||
| Ptot | Power dissipation TC = 25°C | 130 | W |
| Tj | Operating junction temperature | -40...+175 | °C |
| Tstg | Storage temperature | -55...+150 | |
|
|
Soldering temperature waves oldering, 1.6 mm (0.063 in.) from case for 10s | 260 |
