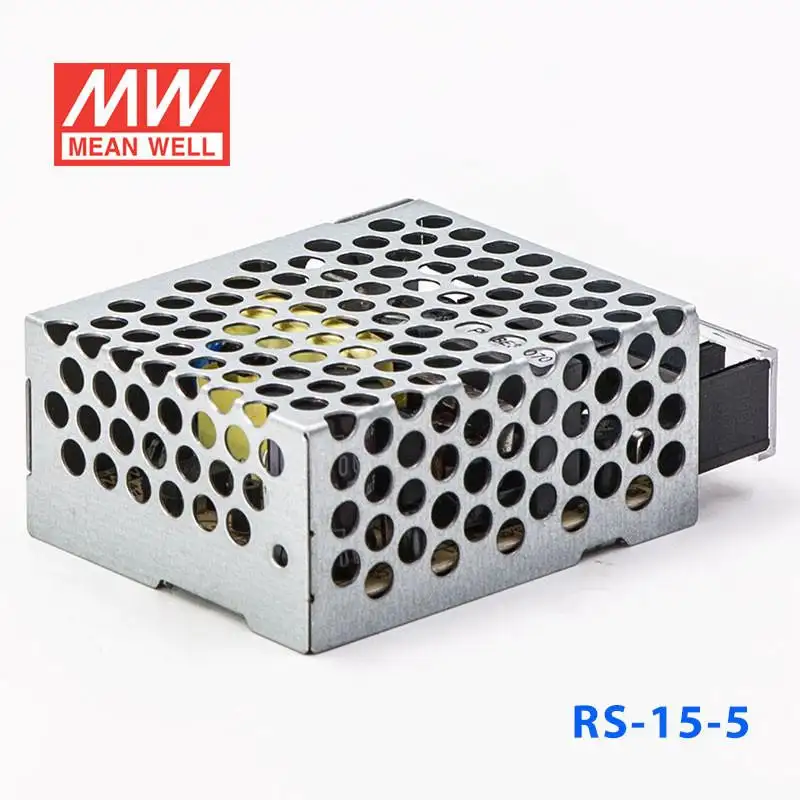

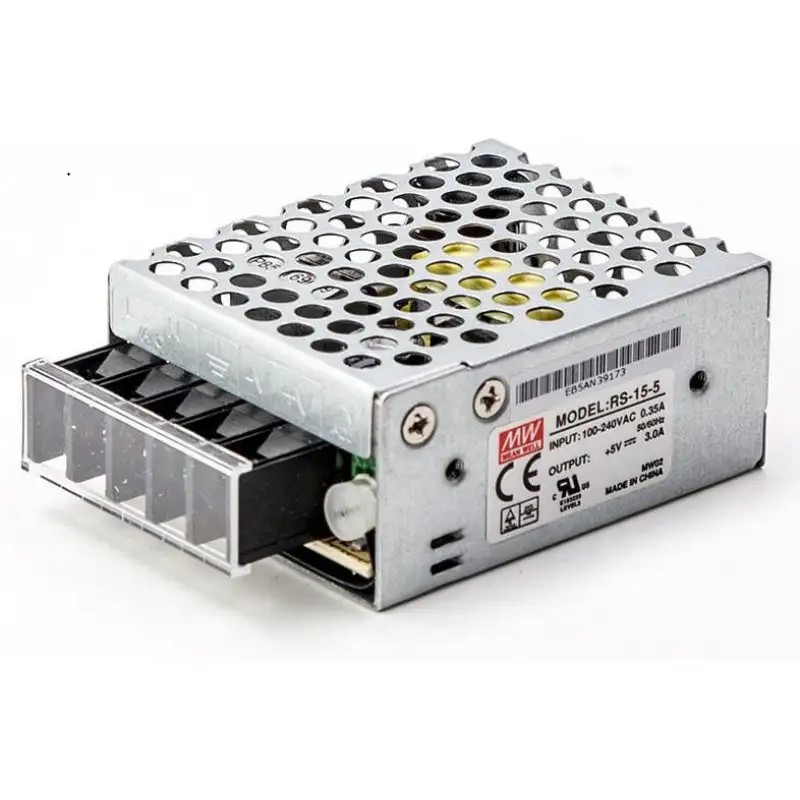

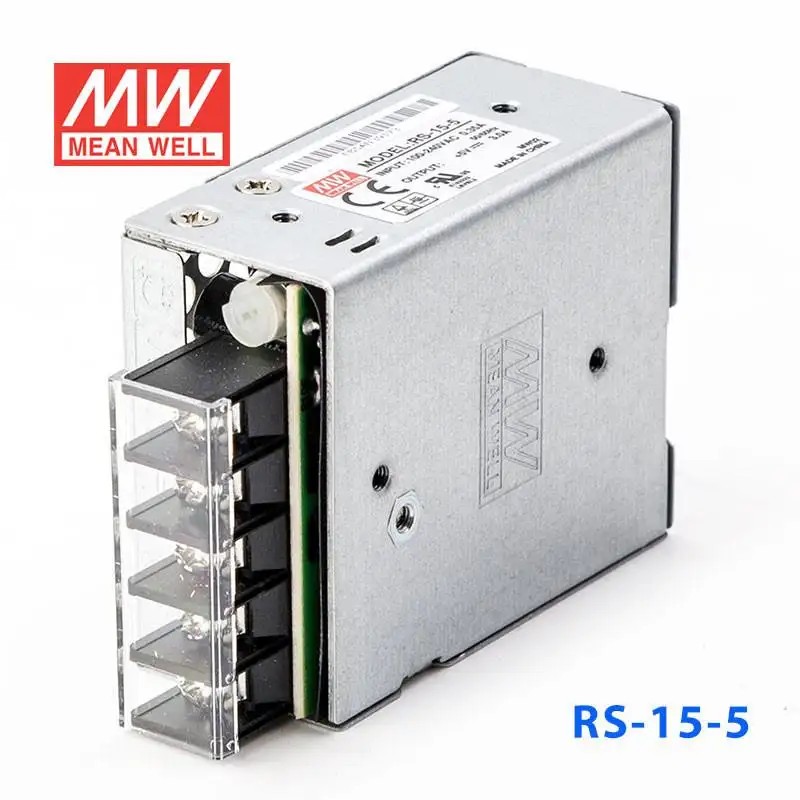

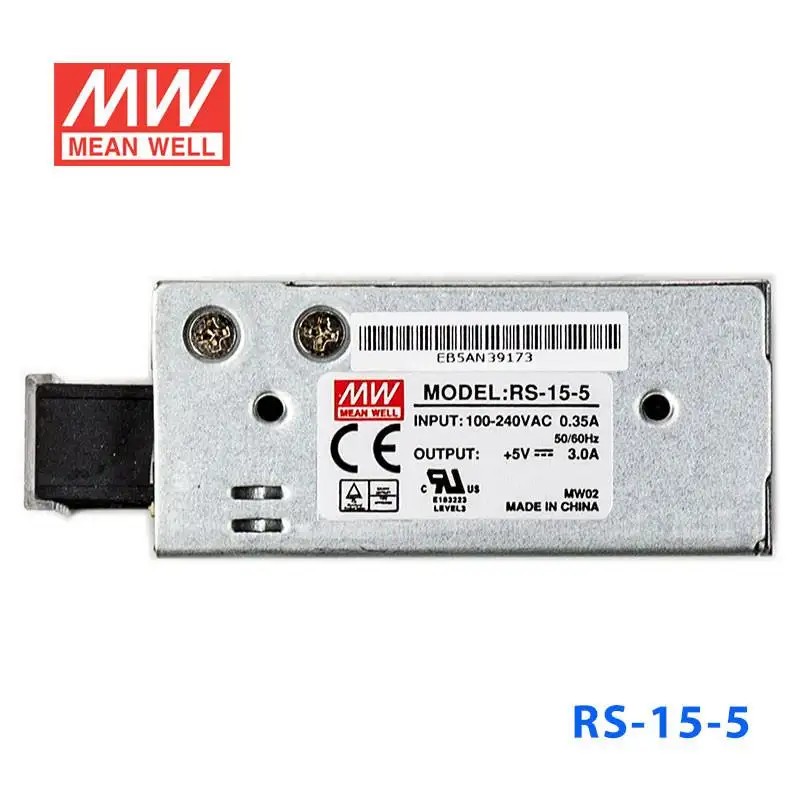

RS-15-5 Mean Well SMPS - 5V 3A - 15W Metal Power Supply

Key Specifications:-

• Output Voltage 5V

• Type                         Enclosed Type

• Approx. Wattage 15W

• Features Standard

• Series G3(Reliable)

• Mechanical Form Enclosed

• Warranty 3 Years Warranty

• IP Level Non-Waterproof

• Input Voltage 100-240V auto-select


Features:-

• No load power consumption <0.5W

• All using 105°C long life electrolytic capacitors

• Protections: Short circuit / Overload / Over voltage / Over Temp.

• Meet EMS EN50082-2/EN61000-6-2

• heavy industry level (35~150W)

• Withstand 300VAC surge input for 5 sec.

• High operating temperature up to 70°C

• Withstand 5G vibration test

• Miniature size, high power density

• High efficiency, long life and high reliability

• LED indicator for power on

• 100% full load burn-in test

• Suitable for critical applications

• 3 years warranty


Specifications:-

AC input voltage range	85~264VAC, 120~370VDC
AC inrush current	Cold start, 65A at 230VAC
DC adjustment range	±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
Overload protection	>105%, hiccup mode
Over voltage protection	115%~135%, shut off
Withstand voltage	I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature	-20~+70°C
Vibration	10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W)

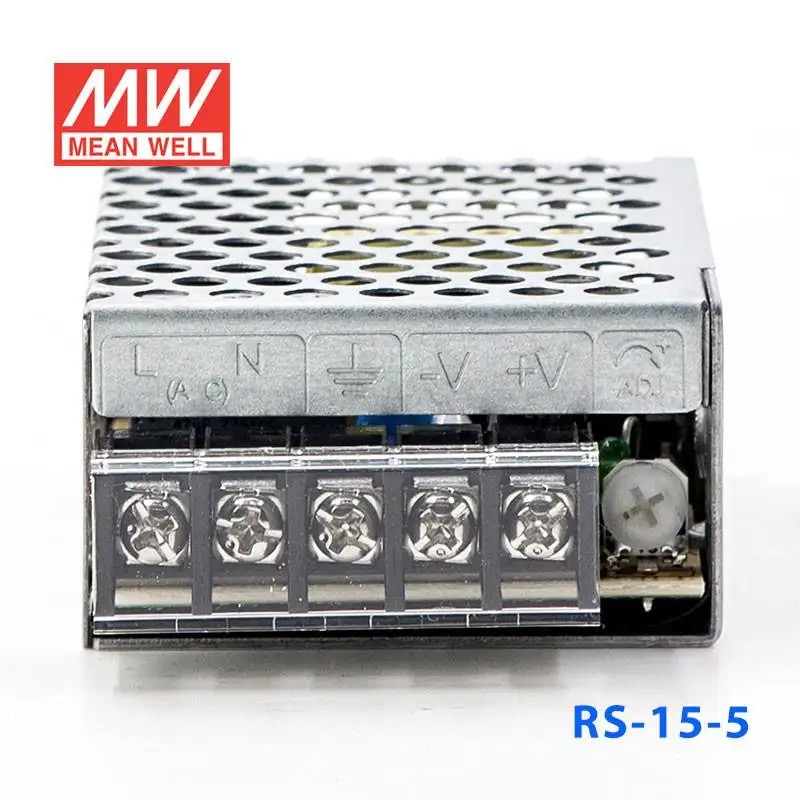

Connection	Terminal block for input and output
Dimension (LxWxH)	62.5x 51x 28
Case No.	971A
Packing	108pcs /15.0kg
