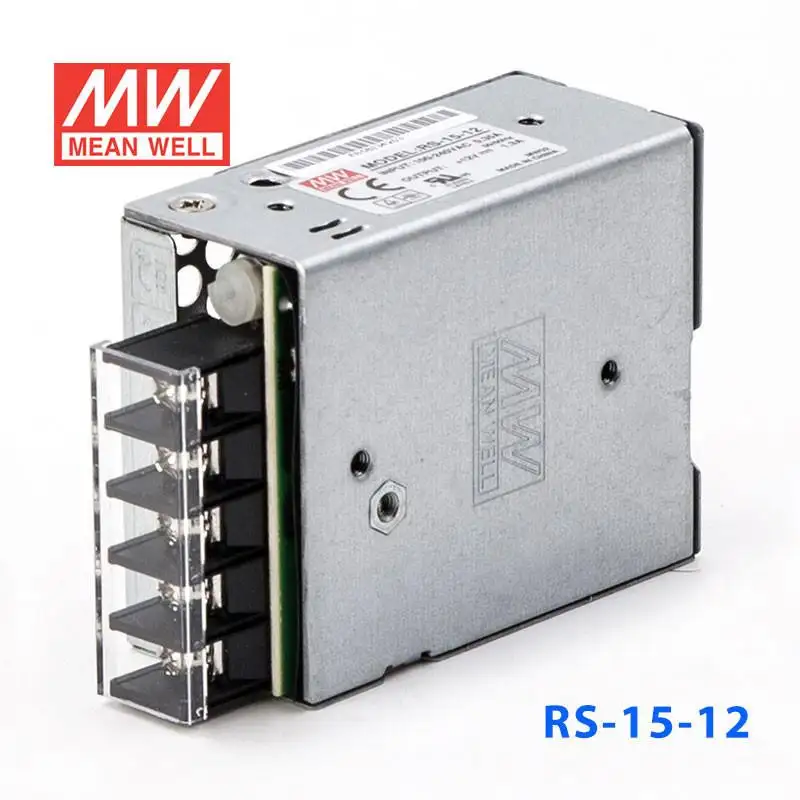

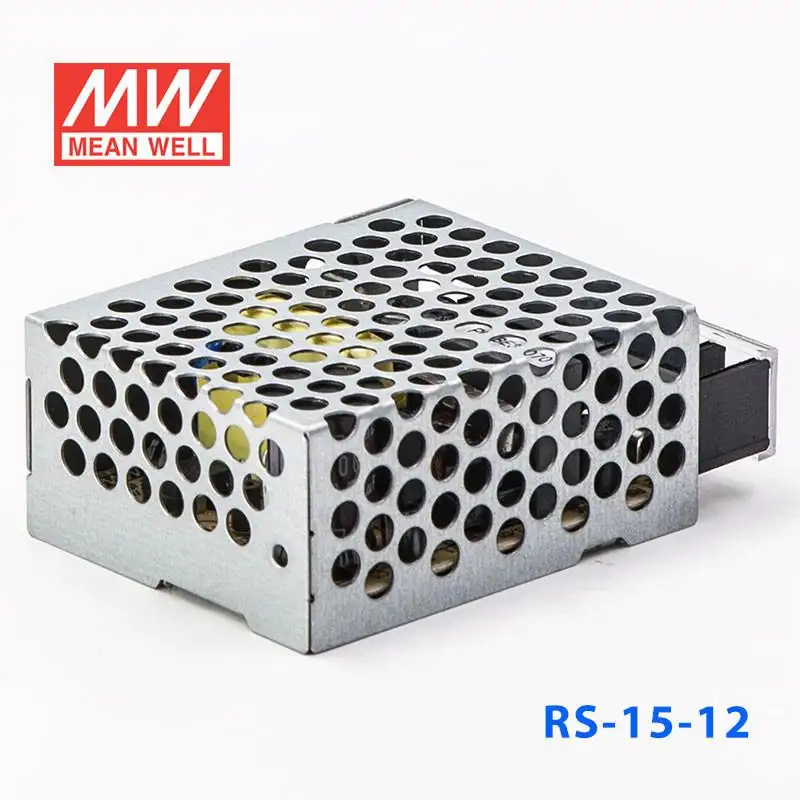

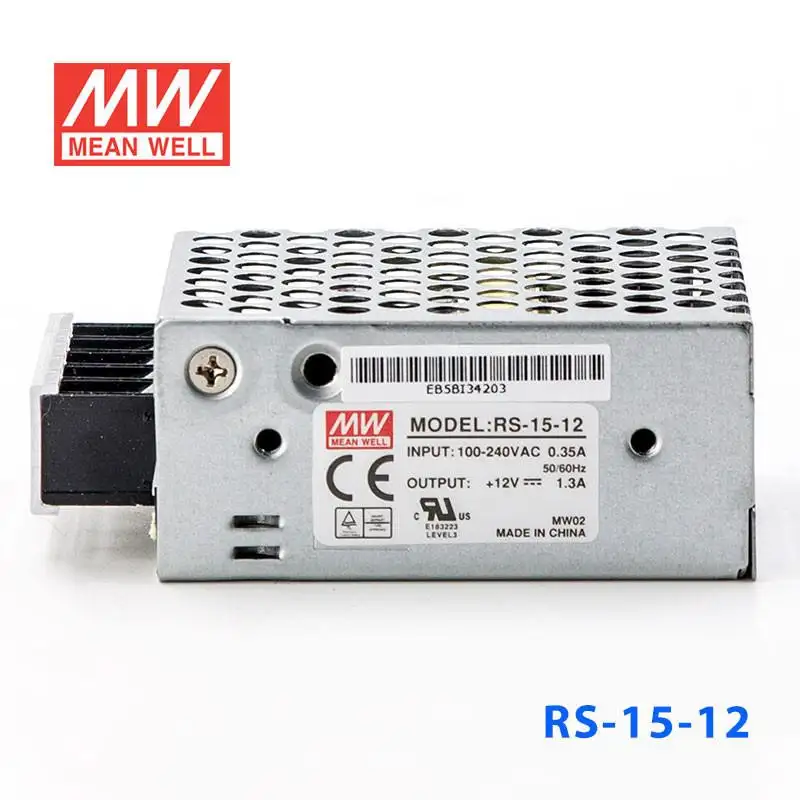

Name: RS-15-12 Mean Well SMPS - 12V 1.3A - 15W Metal Power Supply
Brand: Generic
SKU: 0-9123338
Price: 1061 INR
Availability: InStock

Key Specifications:-

Output Voltage 12V
TypeÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Enclosed Type
Approx. Wattage 15W
Features Standard
Series G3(Reliable)
Mechanical Form Enclosed
Warranty 3 Years Warranty
IP Level Non-Waterproof
Input Voltage 100-240V auto-select

Features:-

No load power consumption <0.5W
All using 105Â°C long life electrolytic capacitors
Protections: Short circuit / Overload / Over voltage / Over Temp.
Meet EMS EN50082-2/EN61000-6-2
heavy industry level (35~150W)
Withstand 300VAC surge input for 5 sec.
High operating temperature up to 70Â°C
Withstand 5G vibration test
Miniature size, high power density
High efficiency, long life and high reliability
LED indicator for power on
100% full load burn-in test
Suitable for critical applications
3 years warranty

Specifications:-

AC input voltage range	85~264VAC, 120~370VDC
AC inrush current	Cold start, 65A at 230VAC
DC adjustment range	Â±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
Overload protection	>105%, hiccup mode
Over voltage protection	115%~135%, shut off
Withstand voltage	I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature	-20~+70Â°C
Vibration	10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W)

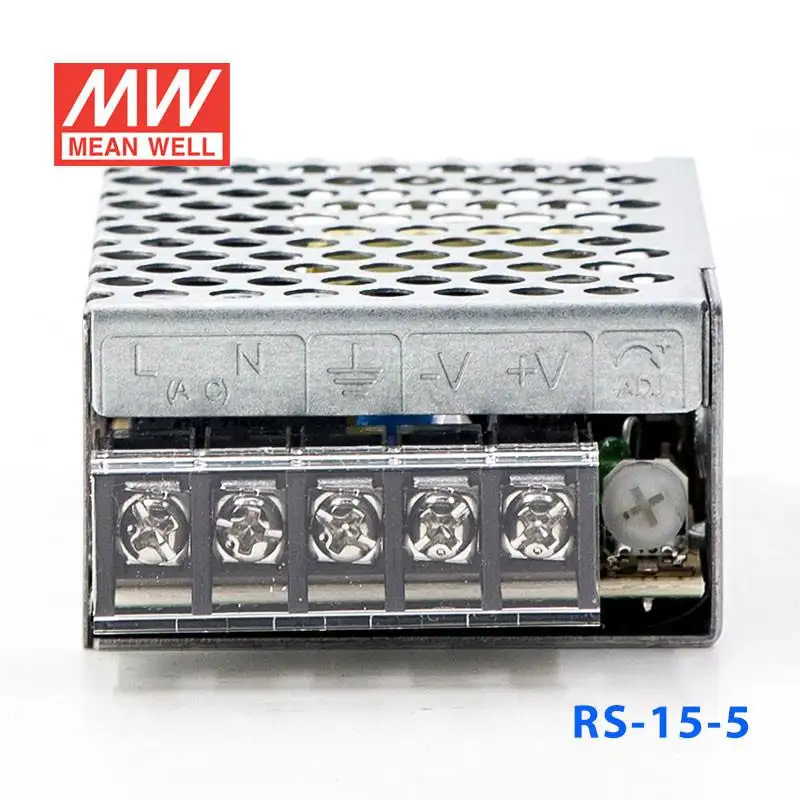

Connection	Terminal block for input and output
Dimension (LxWxH)	62.5x 51x 28
Case No.	971A
Packing	108pcs /15.0kg
