- RS-25-24 Mean Well SMPS - 24V 1.1A - 26W Metal Power Supply
Click Image to Preview

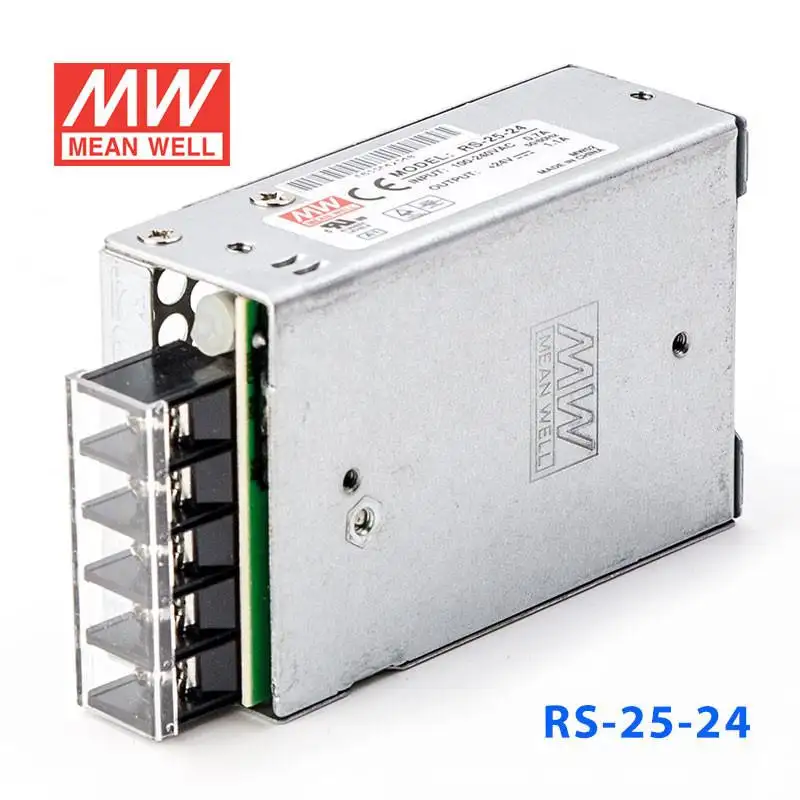

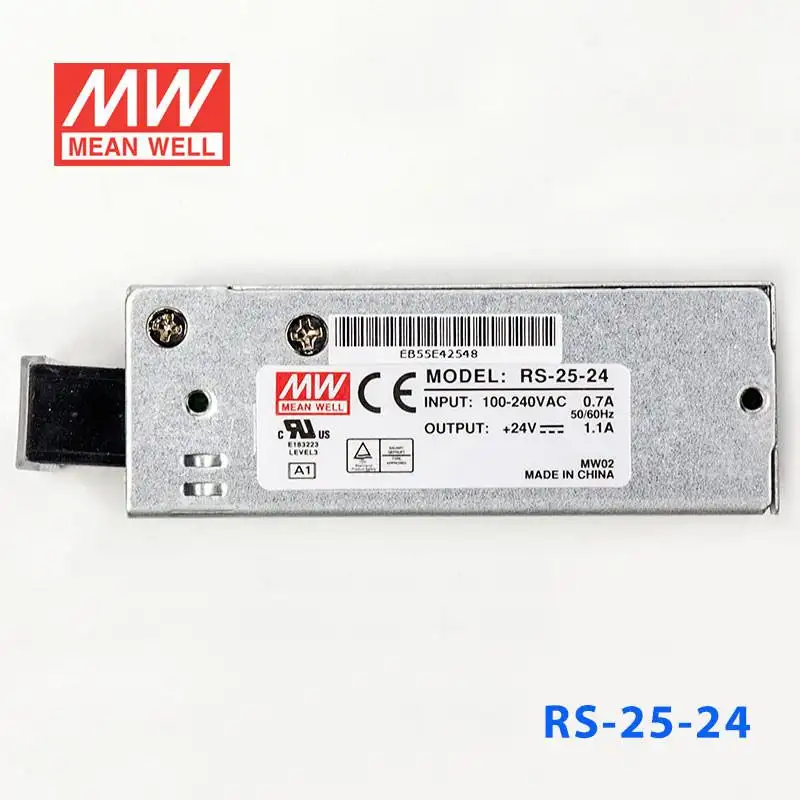

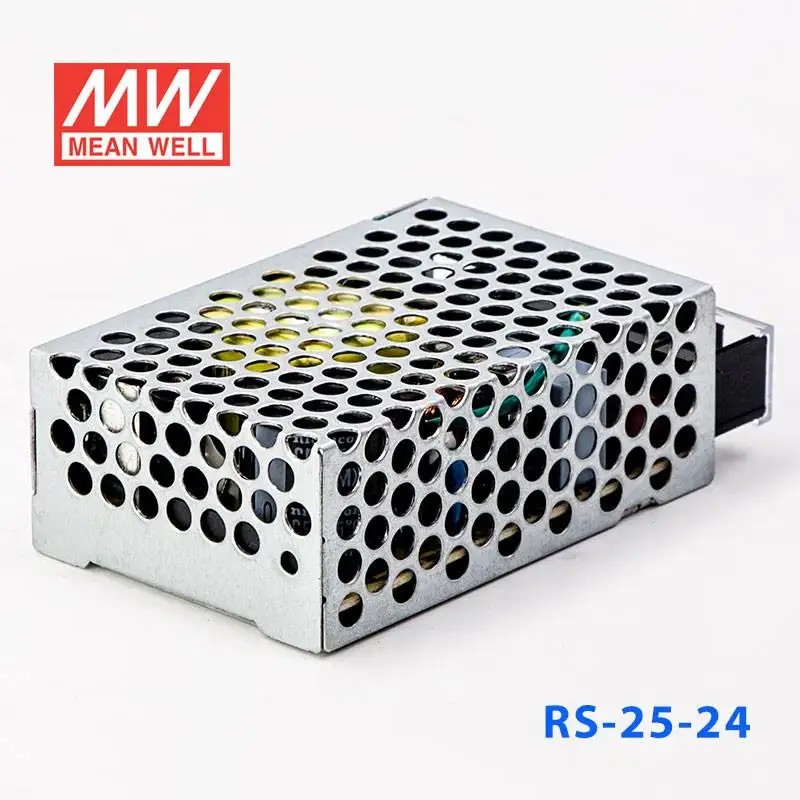

RS-25-24 Mean Well SMPS - 24V 1.1A - 26W Metal Power Supply
In Stock
Brand: Generic | SKU: 4985895
₹ 1,061.00
₹ 1,680.00
Tax Included and Shipping Rate Calculated at Checkout
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
Key Specifications:-
-
Output Voltage
24V
-
Type                         Enclosed Type
-
Approx. Wattage
26W
-
Features
Standard
-
Series
G3(Reliable)
-
Mechanical Form
Enclosed
-
Warranty
3 Years Warranty
-
IP Level
Non-Waterproof
-
Input Voltage
100-240V auto-select
Features:-
-
No load power consumption <0.5W
-
All using 105°C long life electrolytic capacitors
-
Protections: Short circuit / Overload / Over voltage / Over Temp.
-
Meet EMS EN50082-2/EN61000-6-2
-
heavy industry level (35~150W)
-
Withstand 300VAC surge input for 5 sec.
-
High operating temperature up to 70°C
-
Withstand 5G vibration test
-
Miniature size, high power density
-
High efficiency, long life and high reliability
-
LED indicator for power on
-
100% full load burn-in test
-
Suitable for critical applications
-
3 years warranty
Specifications:-
| AC input voltage range | 88~264VAC, 125~373VDC |
| AC inrush current (max.) | 30A at 230VAC |
| DC adjustment range | ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output |
| Overload protection | 110%~180% |
| Over voltage protection | 115%~135% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute |
| Working temperature | -20~+70°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W) |

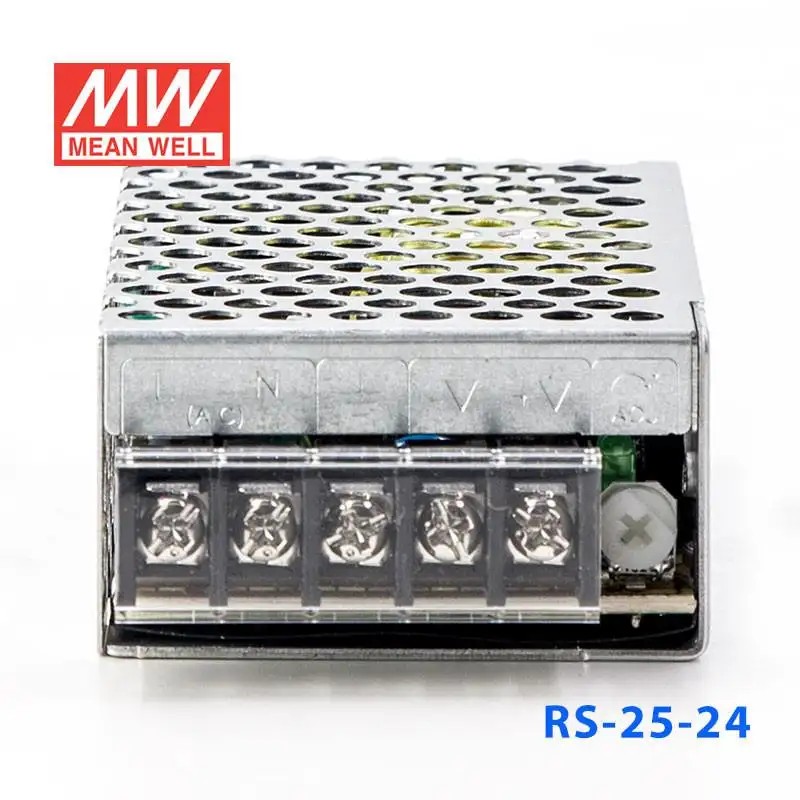

| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 78x 51x 28 |
| Case No. | 931A |
| Packing | 60pcs /13.0kg |
Related Documents:-
