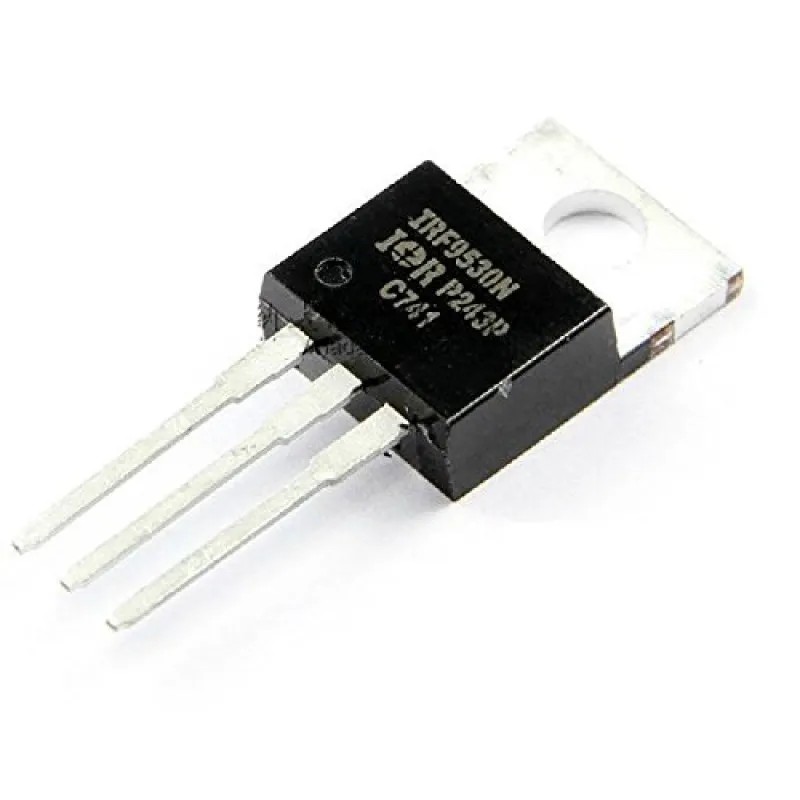

IRF9530 MOSFET- 100V 14A P-Channel Power MOSFET TO-220 Package

IRF9530 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.

Features:-

• Dynamic dV/dt rating

• 100% avalanche rated

• Fast switching

• Ease of paralleling

• New high voltage benchmark

• P-Channel

• Compliant to RoHS directive 2002/95/EC

Detailed Specifications:-

Number of Channels	1 Channel
Transistor Polarity	P-Channel
Drain-Source Breakdown Voltage (Vds)	-100V
Continuous Drain Current (Id)	-14A
Drain-Source Resistance (Rds On)	0.20Ohms
Gate-Source Voltage (Vgs)	20V
Gate Charge (Qg)	58 nC
Operating Temperature Range	-55 - 175°C
Power Dissipation (Pd)	79W

Related Documents

IRF9530 MOSFET Datasheet
