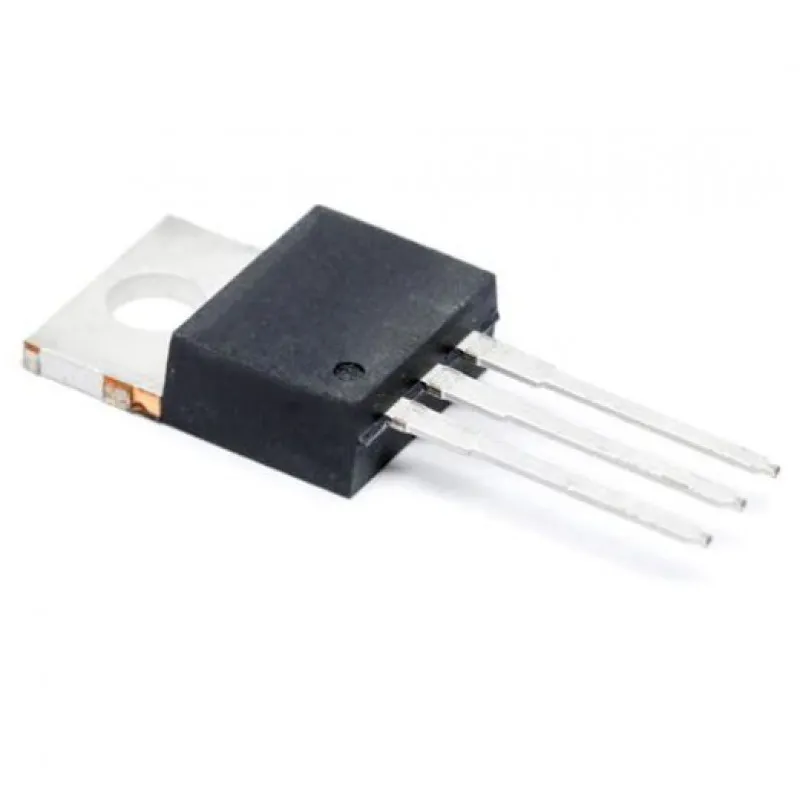

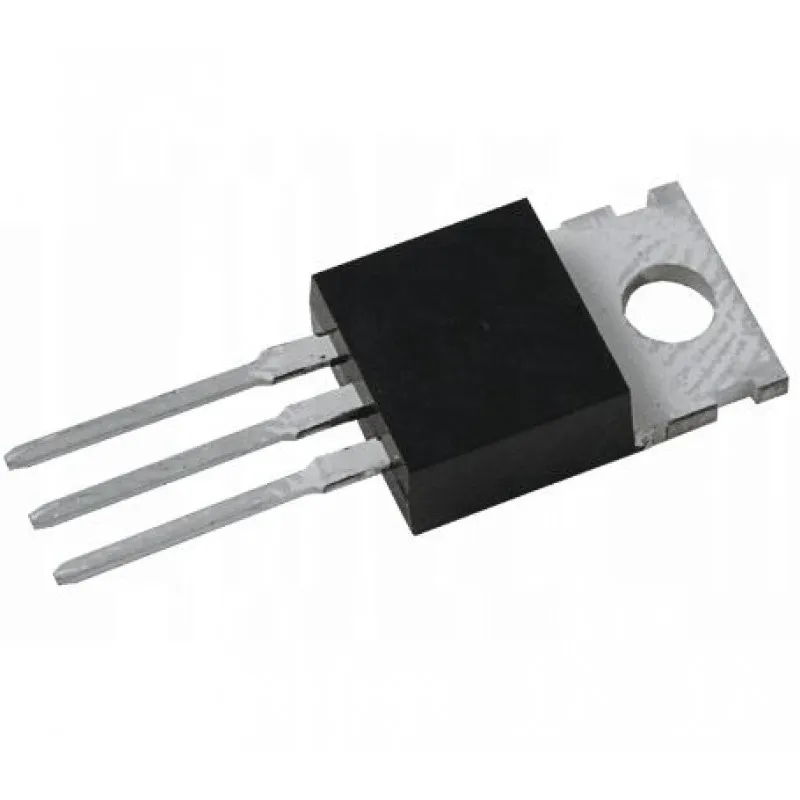

IRF9Z34 MOSFET - 60V 18A P-Channel Power MOSFET TO-220 Package

In Stock

Brand: Generic | SKU: 3561007

₹ 63.00

~~₹ 82.00~~

Save 23%

Tax Included and Shipping Rate Calculated at Checkout

Min Qty: 1

Check Delivery Availability:

Enter your pincode to check delivery options

Offer & Other Details

Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

IRF9Z34 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.

Features:-

â€¢ Dynamic dV/dt rating

â€¢ 100% avalanche rated

â€¢ Fast switching

â€¢ Ease of paralleling

â€¢ Simple Drive Requirements

â€¢ P-Channel

â€¢ Advanced process technology

Detailed Specifications:-

Number of Channels	1 Channel
Transistor Polarity	P-Channel
Drain-Source Breakdown Voltage (Vds)	-60V
Continuous Drain Current (Id)	-18A
Drain-Source Resistance (Rds On)	0.14Ohms
Gate-Source Voltage (Vgs)	20V
Gate Charge (Qg)	34 nC
Operating Temperature Range	-55 - 175Â°C
Power Dissipation (Pd)	88W
