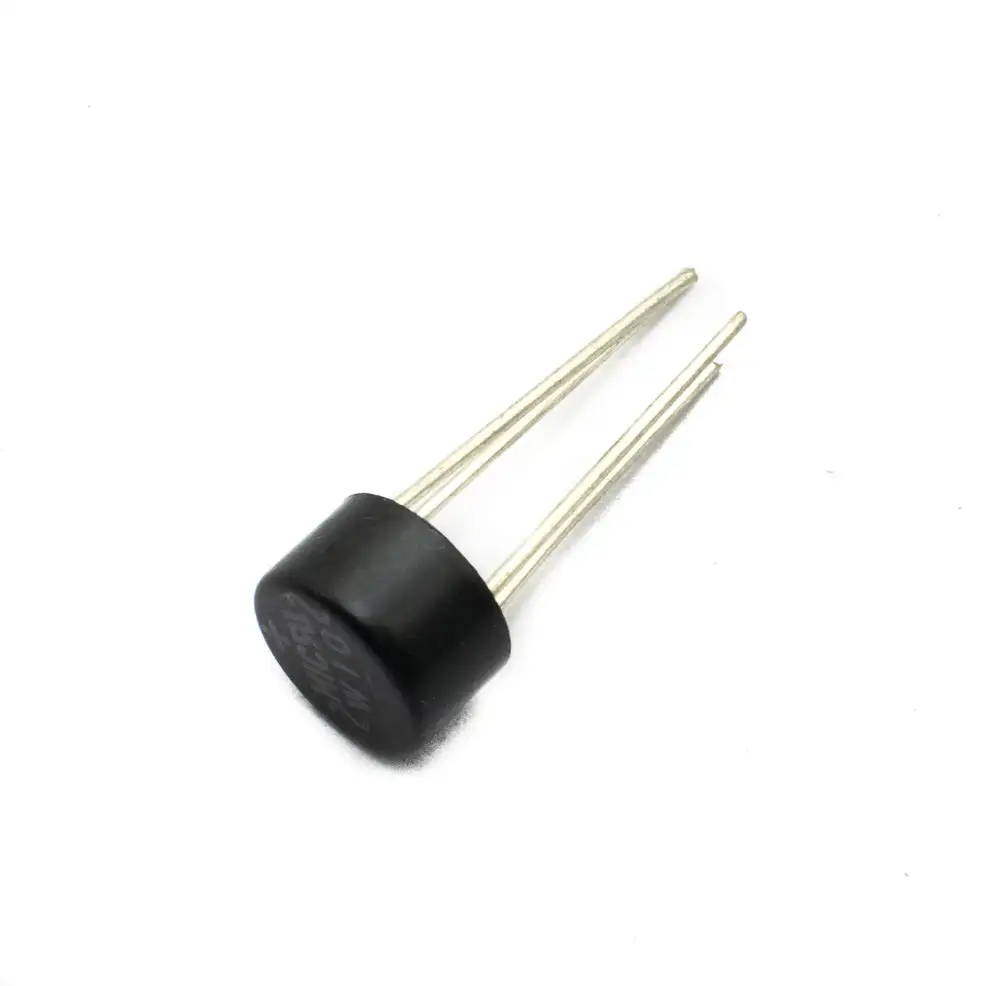

W10 1.5A 1000V Single-Phase Silicon Bridge Rectifier

The W10 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 1.5A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop. It has high efficiency and a high surge current capability of 40A. If you are looking for a compact IC for rectification application this can be a good choice.

PINOUT

Pin Number

Pin Name

Pin Description

1

Positive

Positive of Rectified Output

2

AC Input

AC Input

3

Negative

Negative of Rectified Output

4

AC Input

AC Input

FEATURES

Input Voltage

50-1000V

DC Blocking Voltage per element

500uA

Maximum RMS Bridge Input Voltage

700V

Maximum DC Blocking Voltage

1000V

Maximum Average Forward Output Current

1.5A

Operating Temperature Range:

-55°C to + 150°C
