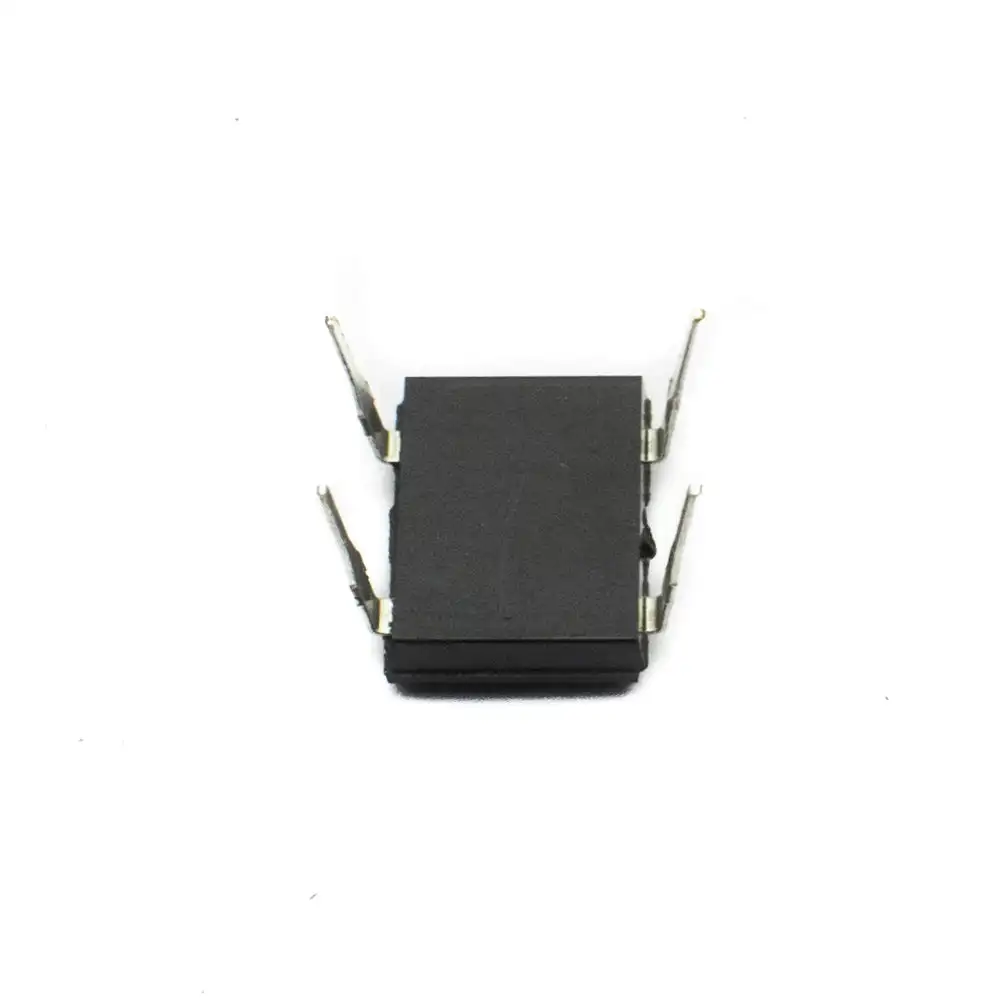

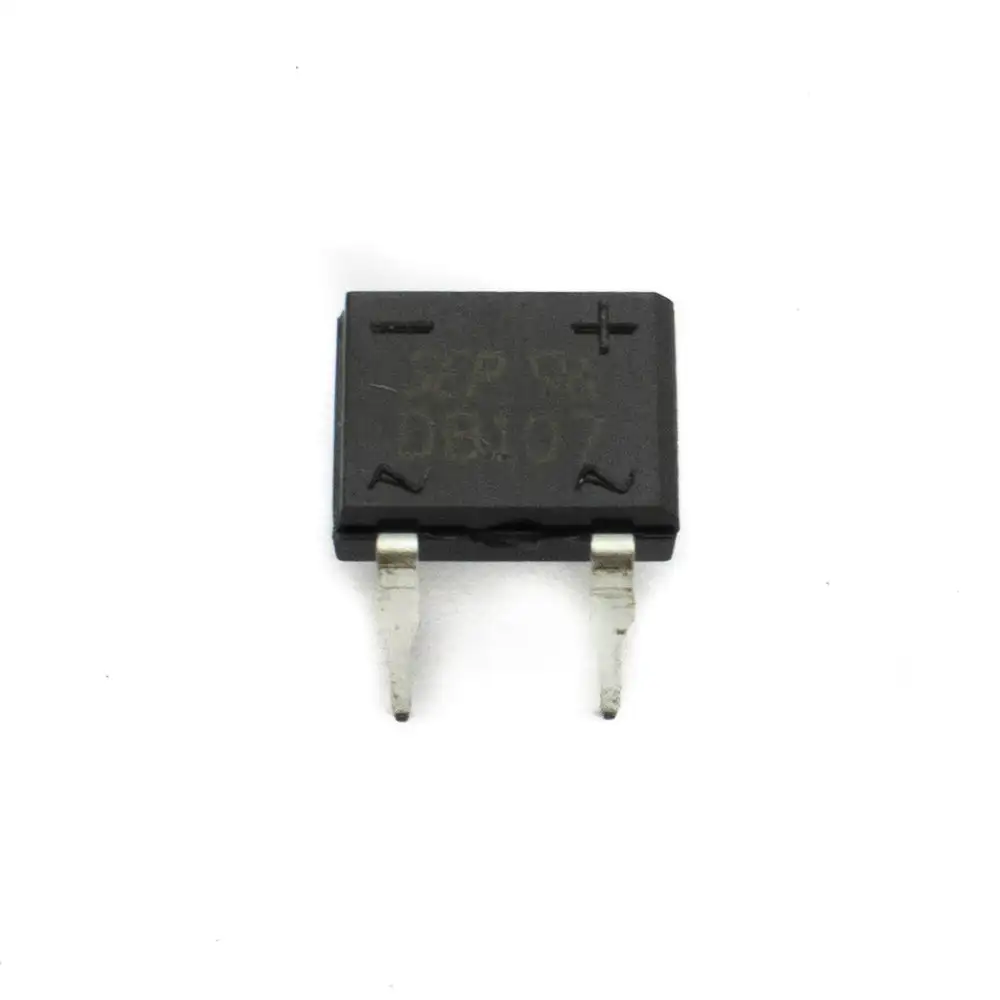

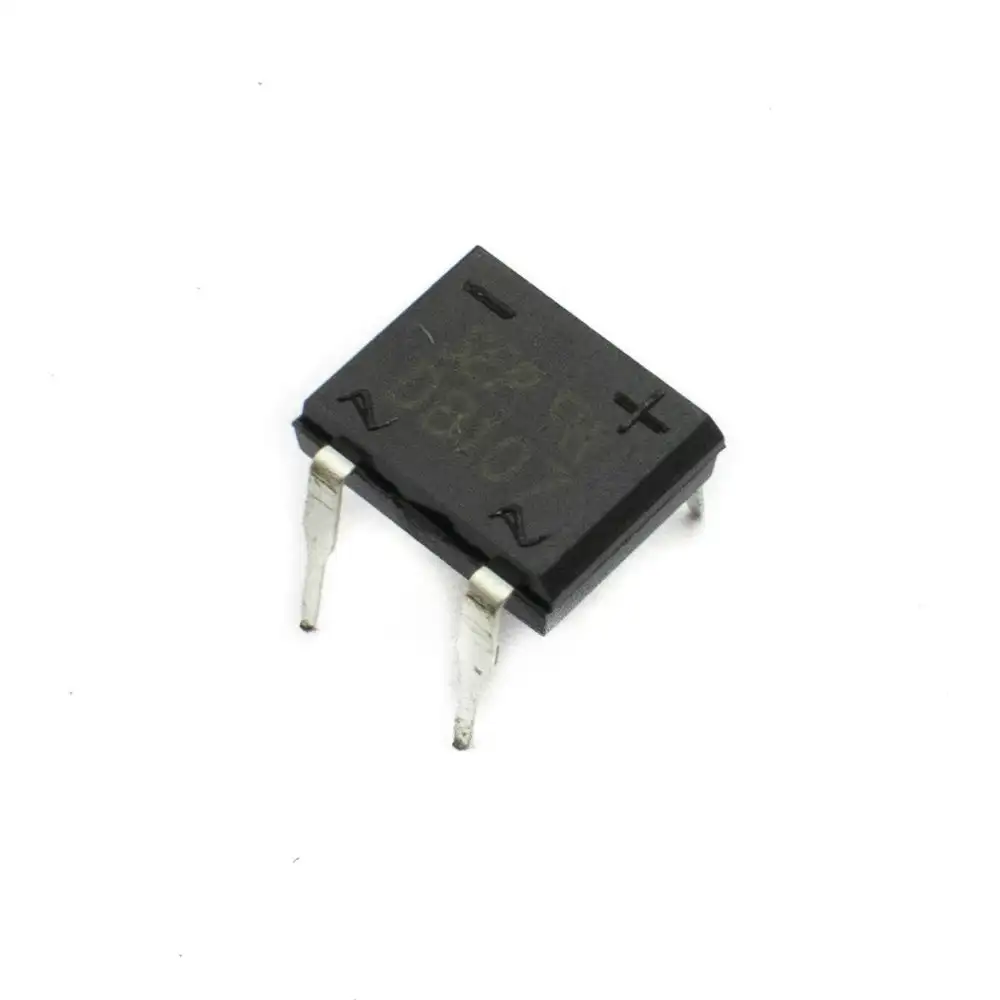

DB107 1A 1000V Bridge Rectifier Diode IC

The DB107 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence, can be used for a broad range of applications. The maximum DC current that this IC can handle is 1A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.1V. It has high efficiency and a high surge current capability of 50A. If you are looking for a compact IC for rectification application this can be a good choice.

Pinout

Pin Number

Pin Name

Pin Description

1

Positive

Positive of Rectified Output

2

AC Input

AC Input

3

Negative

Negative of Rectified Output

4

AC Input

Ac Input

Features:

Input Voltage

50-1000V

DC Blocking Voltage per element

0.5mA

Maximum RMS Bridge Input Voltage

700V

Maximum DC Blocking Voltage

1000V

Maximum Average Forward Output Current

1A

Maximum Forward Voltage Drop per Bridge

1.1V

Operating Temperature Range:

-65 to + 150°C
