UF4007 Diode €“ 1A Ultrafast Recovery Rectifier Diode

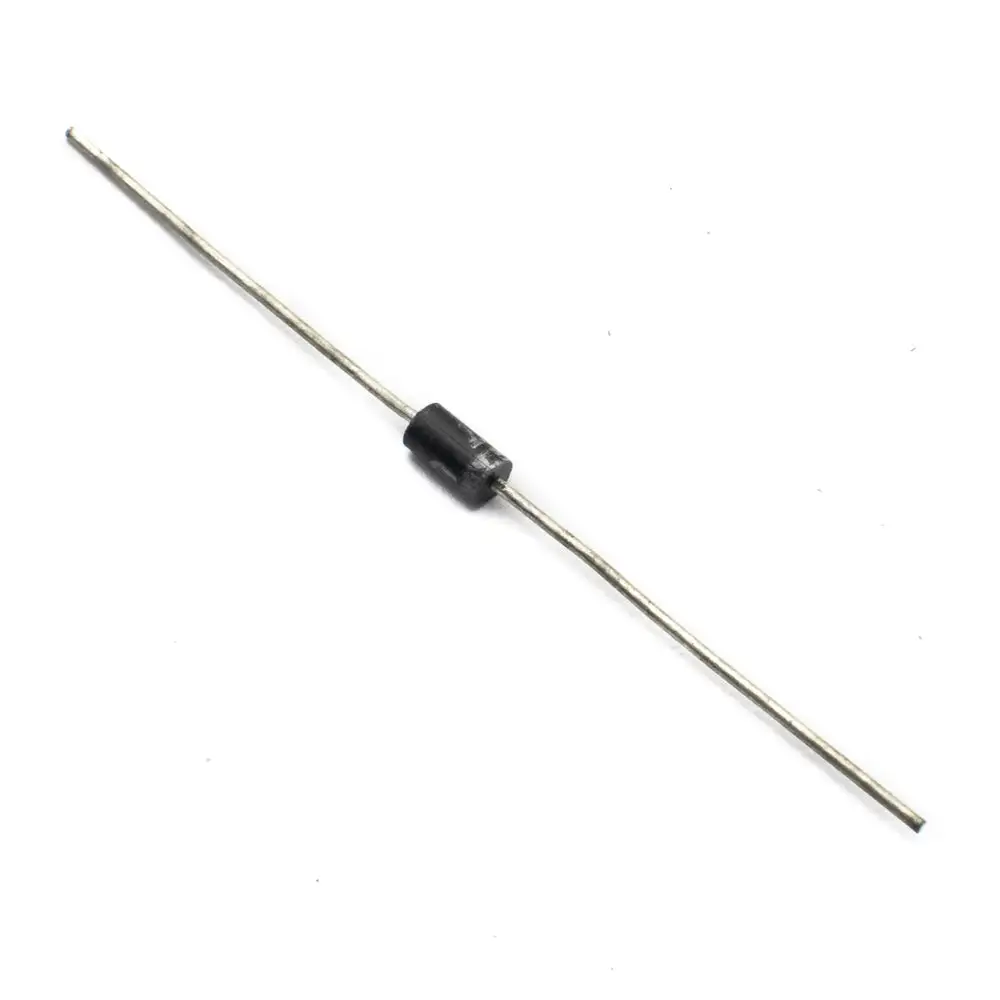

The diode is a device that allows current flow through only one direction. That is the current should always flow from the anode to the cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above.For UF4007 Diode, the maximum current carrying capacity is 1A it withstands peaks up to 30A. Hence we can use this in circuits that are designed for less than 1A. The reverse current is 5uA which is negligible.

Features

Forward Voltage

1.7V (1A)

Peak Reverse Voltage

1000V

Maximum RMS Voltage

700V

Average Forward Current

1A

Non-Repetitive Peak Forward Surge Current

30A

Operating Temperature Range

-65 to + 150°C

Low Reverse Leakage Current

5µA
