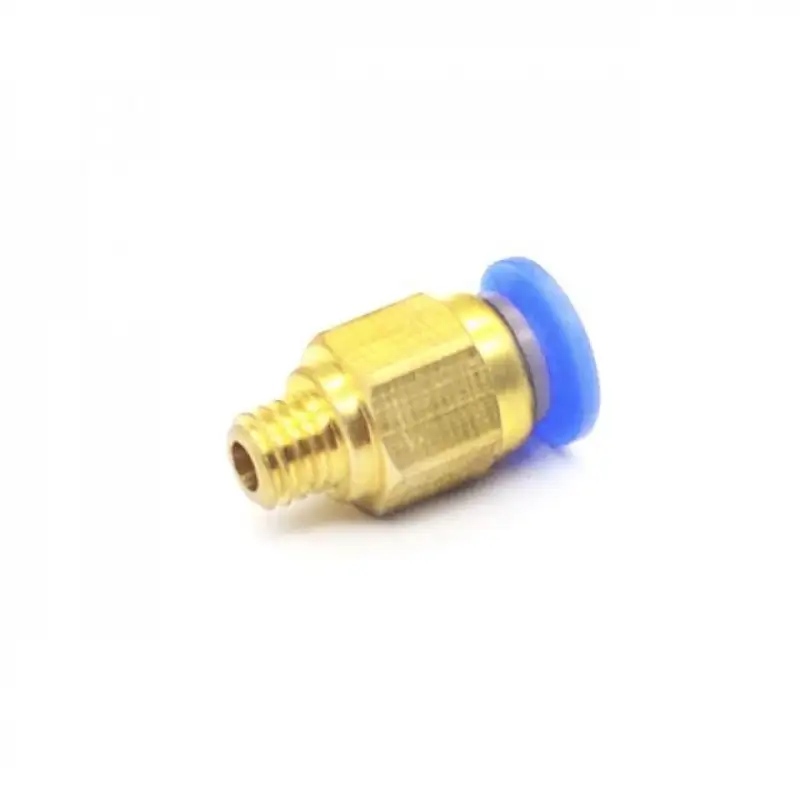

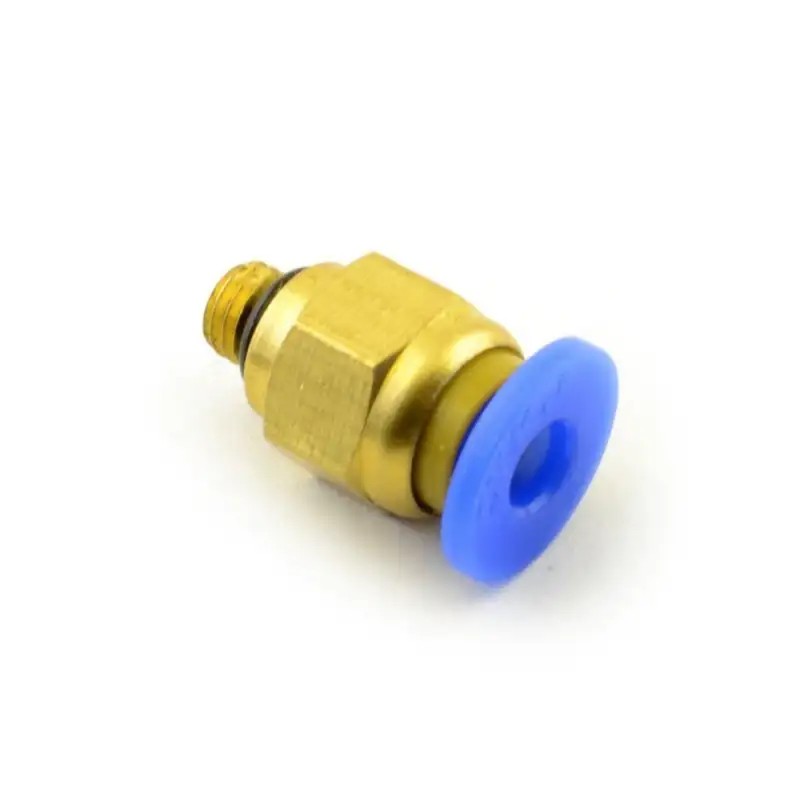

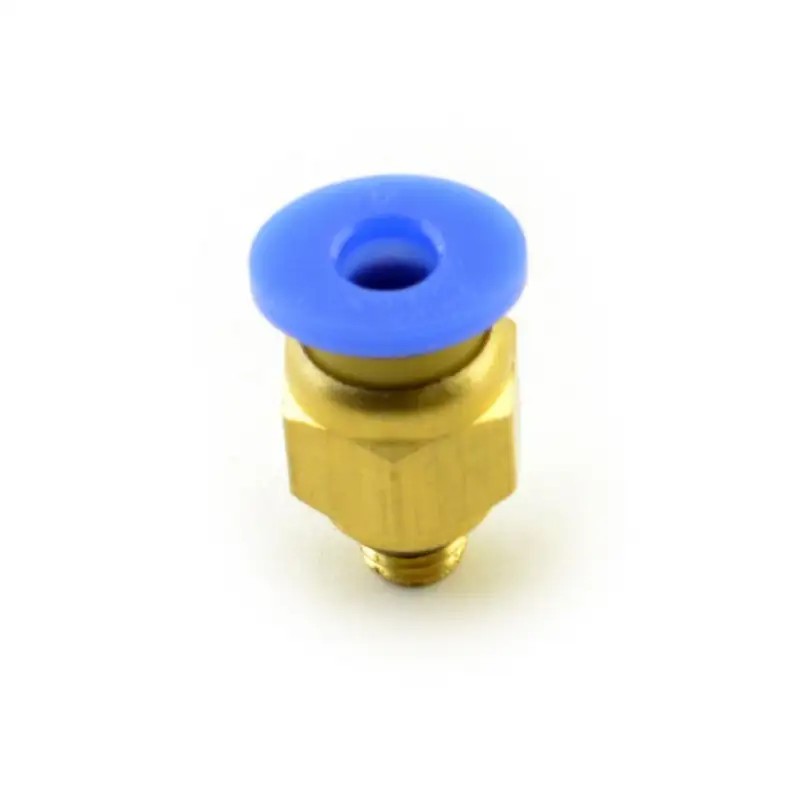

Pneumatic Coupler Air Connectors PC4-M5 4MM Straight Fitting For PTFE Bowden Tube 3D Printer

Pneumatic Coupler Air Connectors PC4-M5 4MM Straight Fitting For PTFE Bowden Tube 3D Printer push to connect fitting for 4mm OD tubing, M5x0.8 thread. This item is often used in 3d printers to connect Bowden tubing to the extruder and to the hot end.

ThePneumatic Coupler Air Connectors PC4-M5 4MM Straight Fitting For PTFE Bowden Tube 3D Printer is designed for polyurethane or nylon tubing.Made of nickel plated brass for corrosion resistance.Even after installation, the direction of the tube can be changed freely.

Oval release ring assists to connect the hose easily by manual, without special tools required.Outside (and inside available) hexagon wrench.

Features :

1. The tube fitting comes in a wide variety of tube and thread sizes.
2. Even after installation, the direction of the tubing can be changed freely.

Package Includes :

1 xPneumatic Coupler Air Connectors PC4-M5 4MM Straight Fitting For PTFE Bowden Tube 3D Printer

Specifications :-

Model	PC4-M5
Outer Diameter (mm)	5
Material	Copper
Color	Brass color
Inner Diameter (blue) (mm)	4
Working Pressure(PSI)	0 to 150
Operating Temperature (C)	0 to 55
Air Tube Connected	Nylon and Polyurethane
Weight(g)	3
