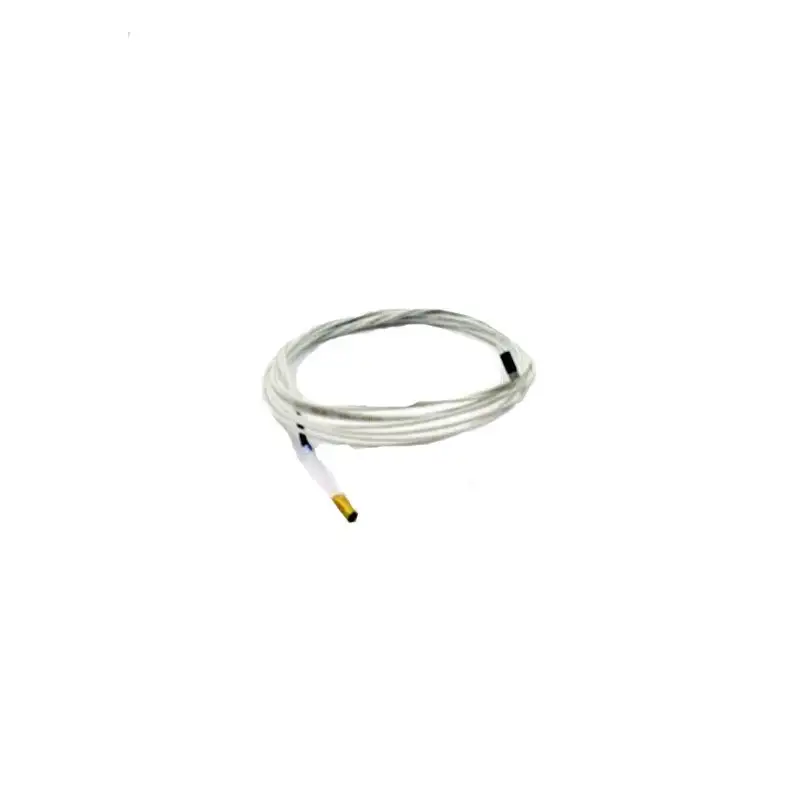

100k NTC Thermistor With Copper Cap for MK8 Extruder

This is Thermistor 100k NTC with 1 Meter Cable Temperature Sensor for 3D Printer Reprap. The thermistor is a thermally sensitive resistor known for exhibiting a large change in resistance with only a small change in temperature.

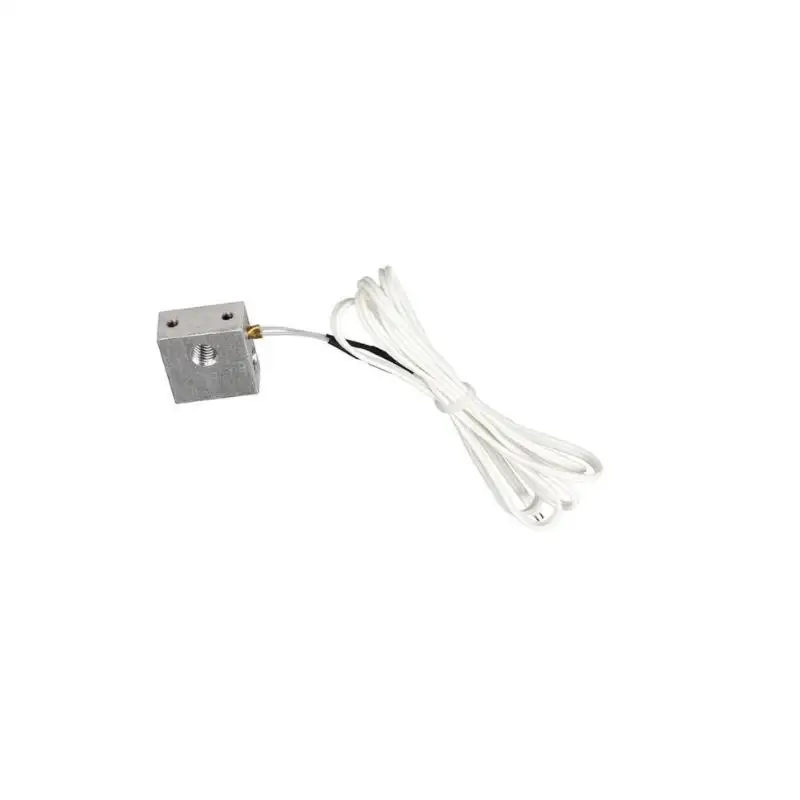

The thermistor installed with the copper sleeve, make the temperature control more accurately, it will have a better thermal transfer and solve the problem for thermistor fixed unstably and the problem of easy damage

In 3D printers, the temperature and fine-tuning of printers are very important, as print quality can be greatly reduced if the temperature is not set correctly.The thermistor, a temperature sensor capable of withstanding temperatures above 200 degrees Celsius, is used to fine-tune the nozzles temperature and heat the device.In most RepRaps, a thermistor senses the temperature of the Hot End.A second thermistor senses the temperature of the Heated Bed.

Features:

1. 100k Ohm NTC Thermistor.
2. NTC Thin Film Thermistor Cable.
3. Nominal value: R25 (25 ) : (common) 1.5K, 2K, 5K, 10K, 20K, 30K, 47K, 50K, 100K, 200K, 500K, etc.
4. Resistance precision: 1%, 2%, 3%.
5. B value R25/50 (common) 3435k, 3600k, 3950k, 3990k, 4100k, 4200k, etc.
6. B value accuracy: 1%.
7. Recommend the use of parameters: R25 = 100 k B25/50 = 3950 k 1%)

Package Includes:

1 x 100k NTC Thermistor With Copper Cap for MK8 Extruder

Specifications :-

Cable Length	1 Meter
Max power rating	45 mW
Temperature Measuring Range (C)	40C to 270C
Accuracy	1%
Diameter(mm)	2.37
Weight(g)	8
