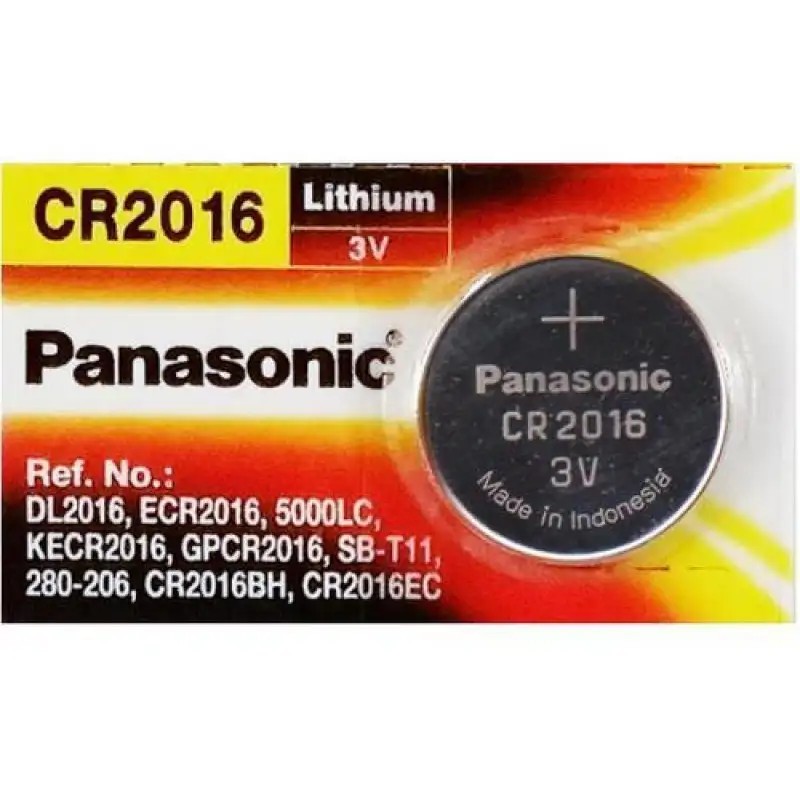

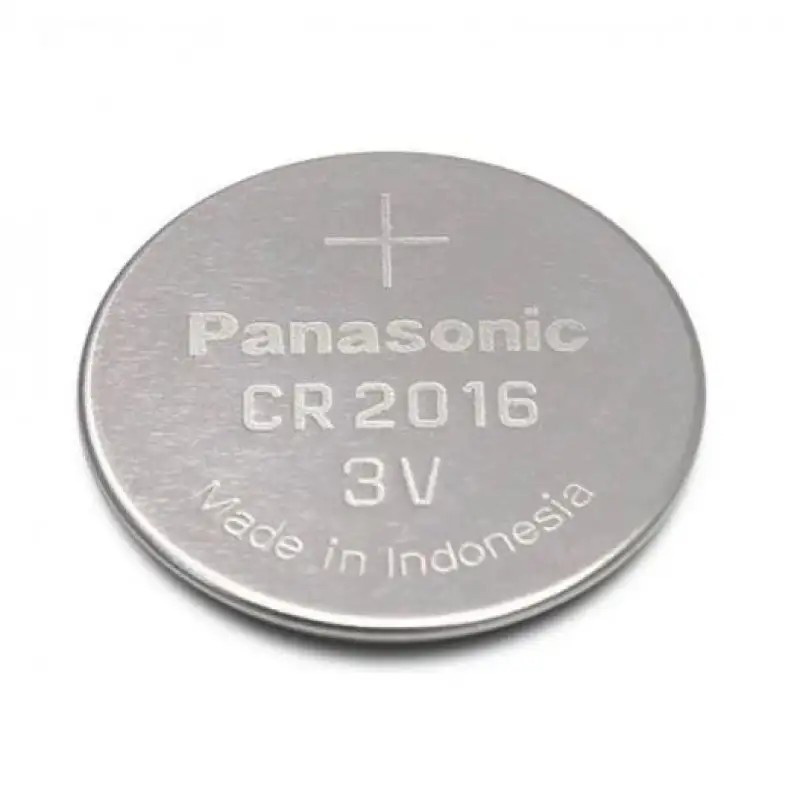

Panasonic CR2016 3V 90mAh Lithium Coin Cell Battery

Compact but capable, the Panasonic CR2016 Lithium Coin Cell is the perfect power source for a wide range of electronics. Typically used in small, high performance devices like cameras, glucose meters, and alarm systems, this powerful battery delivers 3 Volts of impressive power and holds a sizable charge of 90 mAh. The CR2016 uses a potent Lithium Manganese Dioxide chemistry, which not only provides it with its impressive power, but gives it a remarkably long shelf life of 10 years, allowing it to be stored around the house until it's needed.

Specifications of Panasonic CR2016 Lithium Coin Cell Battery :-

• Brand:                                     Panasonic
• Type:                                       Coin Cell
• Model:                                     CR2016
• Chemical System:                     Li / MnO2
• Nominal Voltage:                      3V
• Rated Capacity:                        90 mAh
• Average Weight:                       1.7 g
• Temperature Range:                 -30 - +60 °C
• Diameter:                                20 mm
• Height:                                    1.6 mm

Features:-

• Long shelf life of up to 10 years; self-discharge is very low
• Use in a wide variety of applications
• High voltage (3V)
• Use in a wide range of temperatures (-30°C to +60°C)
• No mercury added

Power: ultra compact

Two, three or more conventional batteries can be replaces by a single lithium battery. That's because there's a lot of power in this ultra-compact design: 3V. Thanks to the Panasonic lithium coin CR2016 battery, even very small devices can now be provided with a powerful source of energy.

Self-discharge: very low

90% of their original capacity, that's how much power the Panasonic lithium coin CR2016 batteries still have after 10 years. Their chemical stability, which is due to the combination of lithium and manganese dioxide, is very high. Long-term discharge has been verified at all operating temperatures under low-load discharge conditions.

Reliability and safety: very high

Panasonic batteries have won approval under the UL safety standards in the United States and wide recognition throughout the world for their high reliability and safety. This is the result of repeated tests on the various safety and performance characteristics of the Lithium Coin CR2016, plus the effects of environmental factors such as temperature that Panasonic has conducted. We have accumulated a wealth of corroborative data on the performance of our batteries that cannot be pinpointed by short-term accelerated tests.

Applications

You can use these batteries in calculators, digital watches, memory back-up, laser pens, car keys, fitness appliances and medical devices like a clinical thermometer and a tensiometer. Lithium Coin CR2016 has a proven track record for appliances where conventional batteries cannot be used.

Related Documents:-

Panasonic CR2016 Datasheet
