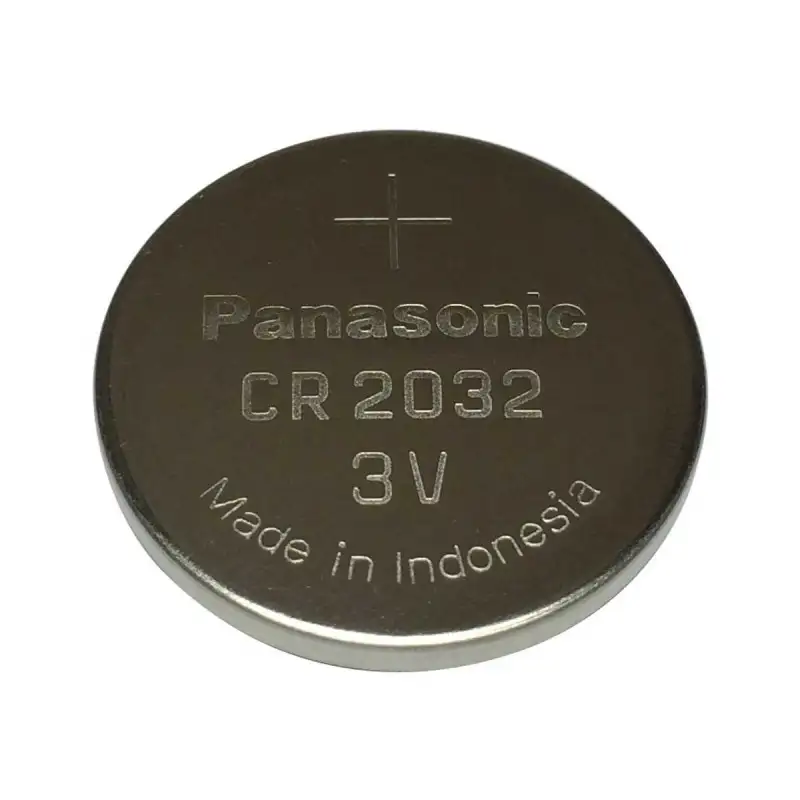

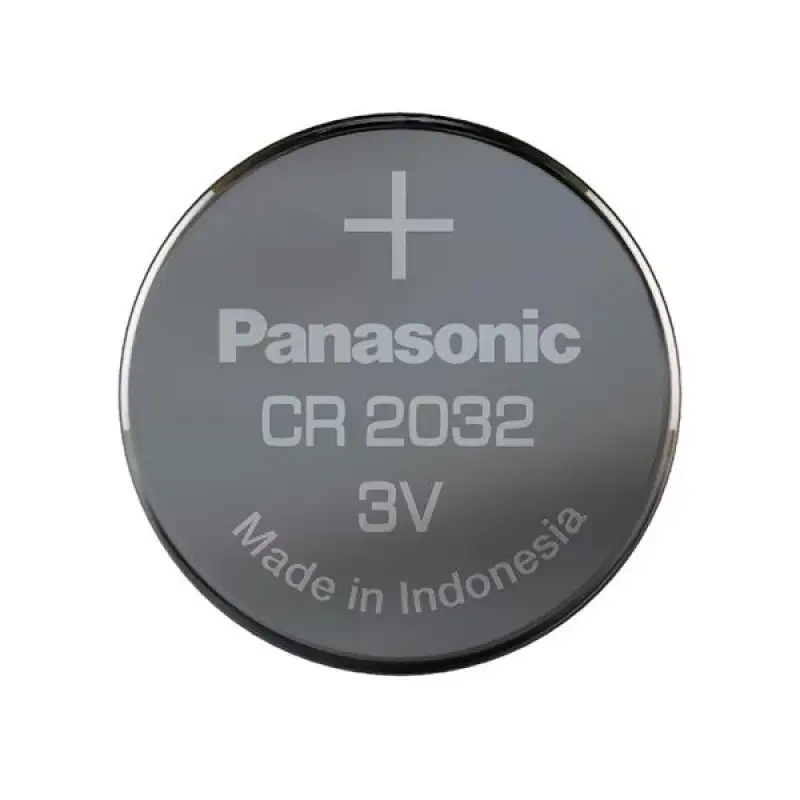

Panasonic CR2032 3V 225mAh Lithium Coin Cell Battery

Decription:-

Panasonic Lithium coin CR2032 batteries is the most common battery coin providing long-lasting, reliable power of various device. They are use to power small electronics devices. Lithium Coin CR2032 has certain achievements for devices where traditional batteries cannot be used. This battery can be used for memory back-up, digital watches, car keys, laser pens, fitness appliances and medical devices such as tensiometers and clinical thermometers.

Specifications of Panasonic CR2032 Lithium Coin Cell Battery :-

• Brand:                                     Panasonic
• Type:                                       Coin Cell
• Model:                                     CR2032
• Chemical System:                     Li / MnO2
• Nominal Voltage:                      3V
• Rated Capacity:                        225 mAh
• Average Weight:                        3.1 g
• Temperature Range:                  -30 - +60 °C
• Diameter:                                 20 mm
• Height:                                     3.2 mm

Features of Panasonic CR2032 Lithium Coin Cell Battery :-

• High voltage (3V)
• Very low self-discharge; long shelf life: up to 10 years
• A full line up for use in a wide variety of applications
• No mercury added
• High leak protection
• Usefull in a wide range of temperatures (-30°C to +60°C)
• Very high weight-to-power ratio

Long shelf life

90% of the original capacity: that is what the Panasonic lithium coin CR2032 batteries still have after even 10 years. The combination of lithium and manganese dioxide results in a chemically very stable battery. Long-term discharge has been verified at all operating temperatures under low-load discharge conditions.

Ultra-compact power

The Panasonic lithium coin CR2032 battery has a high voltage of 3V. In short: lots of power in an ultra-compact design. You have enough with one lithium battery in comparison to 2, 3 or more traditional batteries. Choose the lithium coin CR2032 battery as a powerful source of energy for your small devices.

High reliability and safety

Repeated tests on the various safety and performance characteristics of this battery have been conducted by Panasonic. Also the effects of environmental factors such as temperature were tested. Panasonic has accumulated a wealth of corroborative data on the performance of our batteries that cannot be pinpointed by short-term accelerated tests. The result is that Panasonic batteries have won consent for their high reliability and safety under the UL safety standards in the United States and wide recognition over the world.

Applications

Lithium Coin CR2032 has certain achievements for devices where traditional batteries cannot be used. This battery can be used for memory back-up, digital watches, car keys, laser pens, fitness appliances and medical devices such as tensiometers and clinical thermometers.

Related Documents:-

Panasonic CR2032 Datasheet
