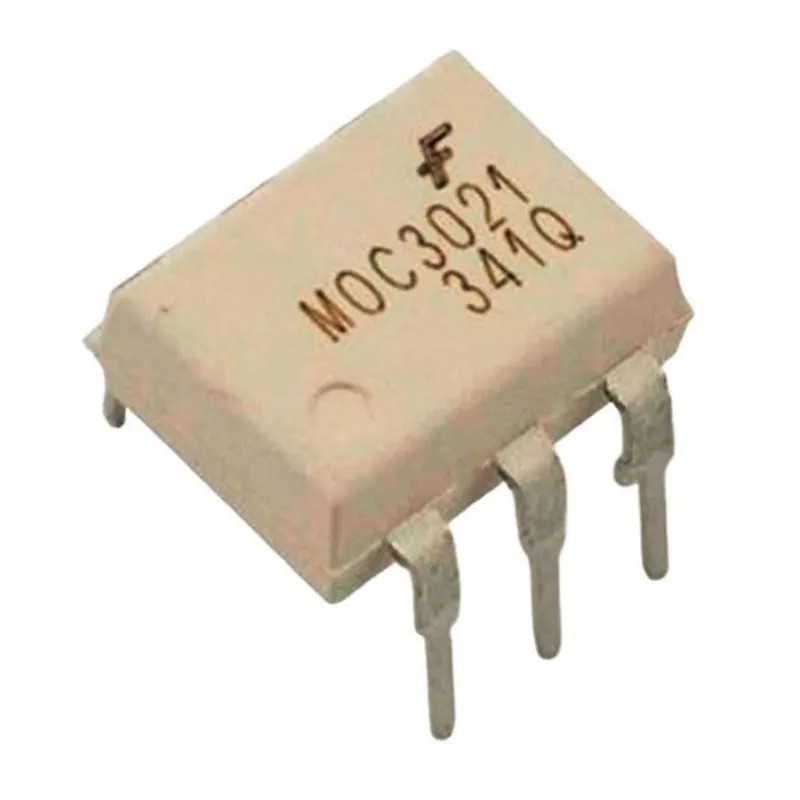

MOC3021 IC - Optocoupler Traic Driver IC

Features:-

• Excellent IFT stability—IR emitting diode has low degradation

• High isolation voltage—minimum 5300 VAC RMS

• Underwriters Laboratory (UL) recognized—File #E90700

• Peak blocking voltage: 400V-MOC3021

• VDE recognized (File #94766)

Applications:- Industrial, Motor Drive & Control, Consumer Electronics

Specification:-

Symbol	Parameter	Value	Unit
IF	Forward current	60	mA
PD	Power dissipation	100	mW
VR	Reverse Voltage	3	V
Tstg	Storage temperature range	-40 to +150	°C
TOPR	Operating Temperature	-40 to +85	°C
TSOL	Lead Solder Temperature	260 for 10 sec	°C
ITSM	Peak Repetitive Surge Current (PW = 1 ms, 120 pps)	1	A
VDRM	Off-State Output Terminal Voltage	250	V
VISO	Isolation Surge Voltage	7500	Vac(pk)

Related Document:-

MOC3021 IC Data Sheet
