- Mini MP1584 DC-DC 3A Adjustable Buck module
Click Image to Preview

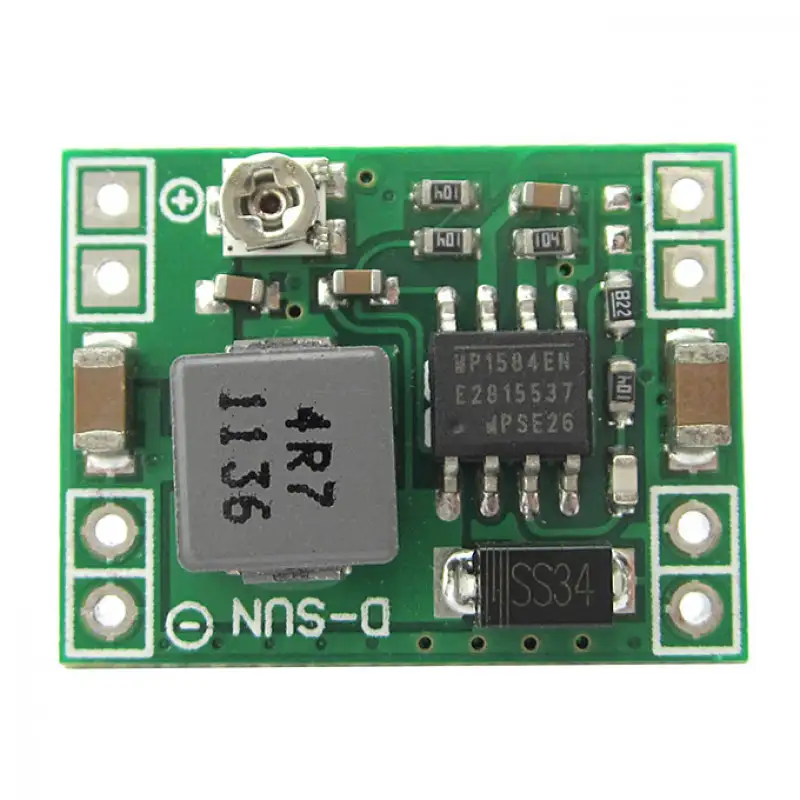

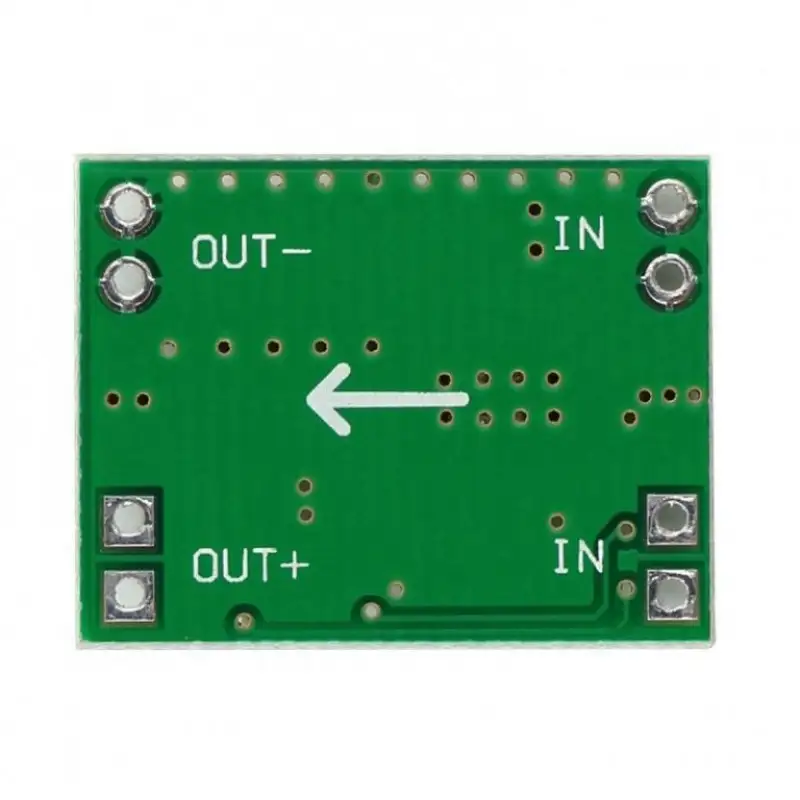

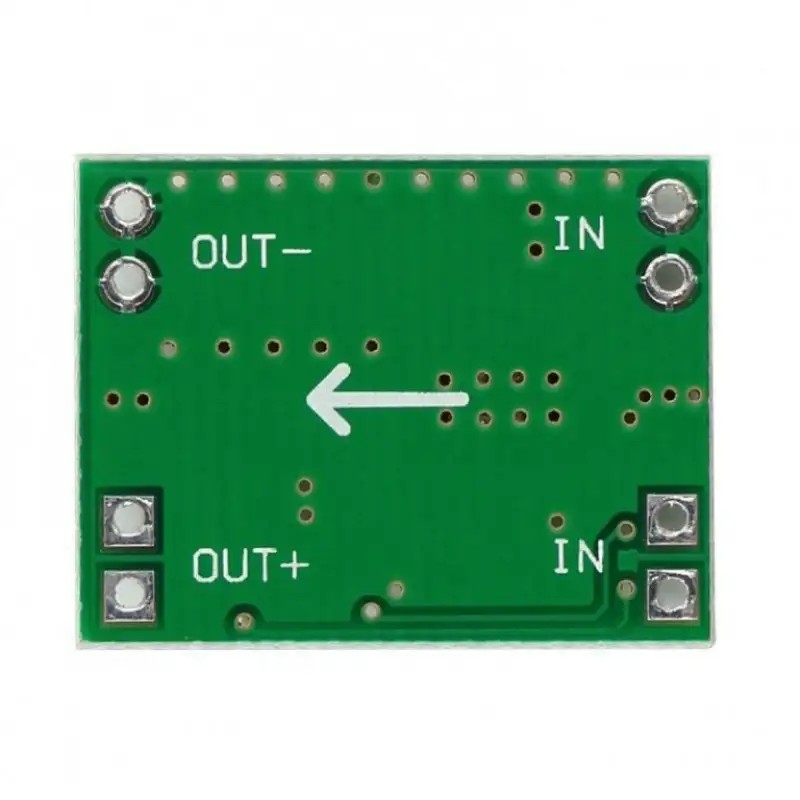

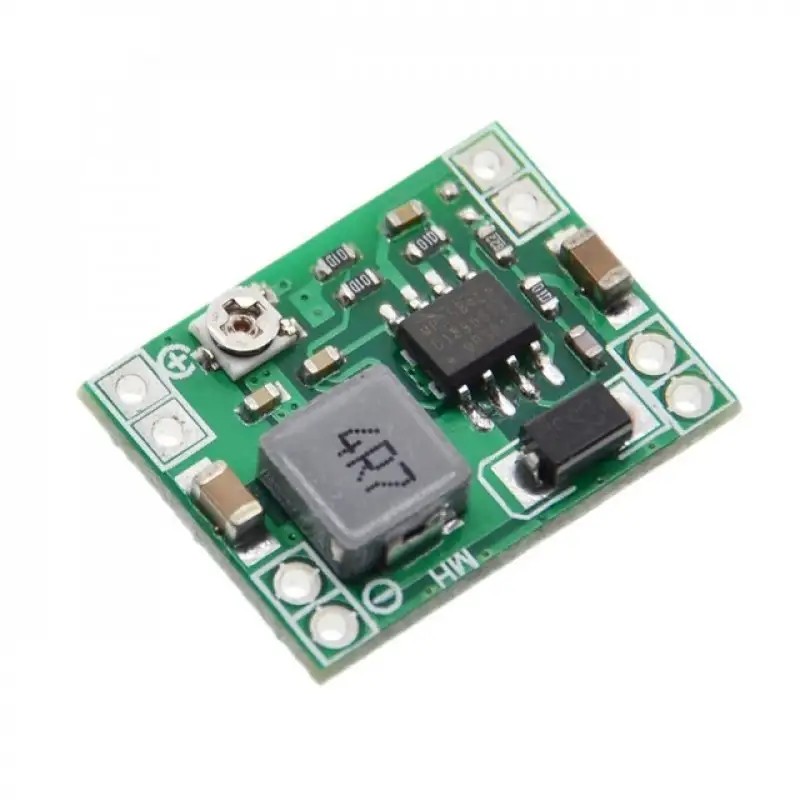

Mini MP1584 DC-DC 3A Adjustable Buck module
Brand: Generic | SKU: 5740965
₹ 55.00
₹ 67.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
TheMini MP1584 DC-DC 3A Adjustable Buck module is ultra small adjustable 0.8V to 20V output DC to DC step-down Buck converter uses an MP1584EN high frequency switching regulator and integrated high voltage power MOSFET.
It features soft start, thermal shutdown, and under-voltage lockout (UVLO) to protect the module from operating at the insufficient supply voltage.
Small size, light weight, low internal power consumption, and wide input voltage range of 4.5V to 28V makes this module suitable for a varietyof different applications where small size and lightweight voltage conversion is needed, includingRC cars and airplanes, quadcopters, robotics, Arduino modules, and DIY devices.
Applications:
- DIY 8051 / AVR / ARM / PIC / Arduino / Raspberry-Pi projects
- Robotics
- Breadboard power supply
- Manual speed adjustment of small DC motors
- Power Supply for RC project planes, cars, helicopters
- Universal Battery Elimination Circuit (UBEC) for 2S-6S lipo battery pack
- Receiver/servo power supply
- Communications equipment power supply
- Mobile equipment power supplies
Note: Set voltage using a voltmeter and adjust to proper output voltage before installing in your device.
Features of Mini MP1584 DC-DC 3A Adjustable Buck module :
- Wide 4.5V to 28V Operating Input Range
- High-Efficiency Pulse Skipping Mode for Light Load
- Ceramic Capacitor Stable
- Internal Soft-Start
- Internally Set Current Limit without a Current Sensing Resistor
Specifications of Mini MP1584 DC-DC 3A Adjustable Buck module :-
| IC Chip |
MP1584EN |
| Input Voltage (V) |
4.5 to 28 |
| Output Voltage(V) |
0.8 to 20 |
| Output Current(A) |
3 |
| Typical Output Voltage(A) |
1.8 |
| Typical Switching Frequency(MHz) |
1 |
| Maximum Switching Frequency(MHz) |
1.5 |
| Conversion Efficiency(%) |
96 |
| Output Ripple(mV) |
<30 |
| Accuracy |
0.5% |
| Operating Temperature (C) |
-50 to +85 |
| Length (mm) |
22 |
| Width (mm) |
17 |
| Height (mm) |
4 |
|
|
Package Includes :
1 x Mini MP1584 DC-DC 3A Adjustable Buck module
