DC-DC Step-Down Buck Converter Power Supply Module 24V 12V 9V to 5V 5A 25W Replace LM2596S

This DC-DC Step-Down Buck Converter Power Supply Module provides all the active functions for a step-down (buck) switching regulator, capable of driving a load up to 5A with excellent line and load regulation. This module comes with variable but the fixed value of input i.e. 24V, 12V, and 9V as well as fixed output voltage which is 5V 5A.

The module requires a minimum number of external components, these regulators are simple to use and include internal frequency compensation, and a fixed frequency oscillator. And hence it replaces the purpose of LM2596S.

Applications:

1. Simple High-Efficiency Step-Down (Buck)
   Regulator
2. On-Card Switching Regulators
3. Positive to Negative Converter

Note: Maximum limit of Input voltage is 35 v, please use in a safe range to avoid the damage.

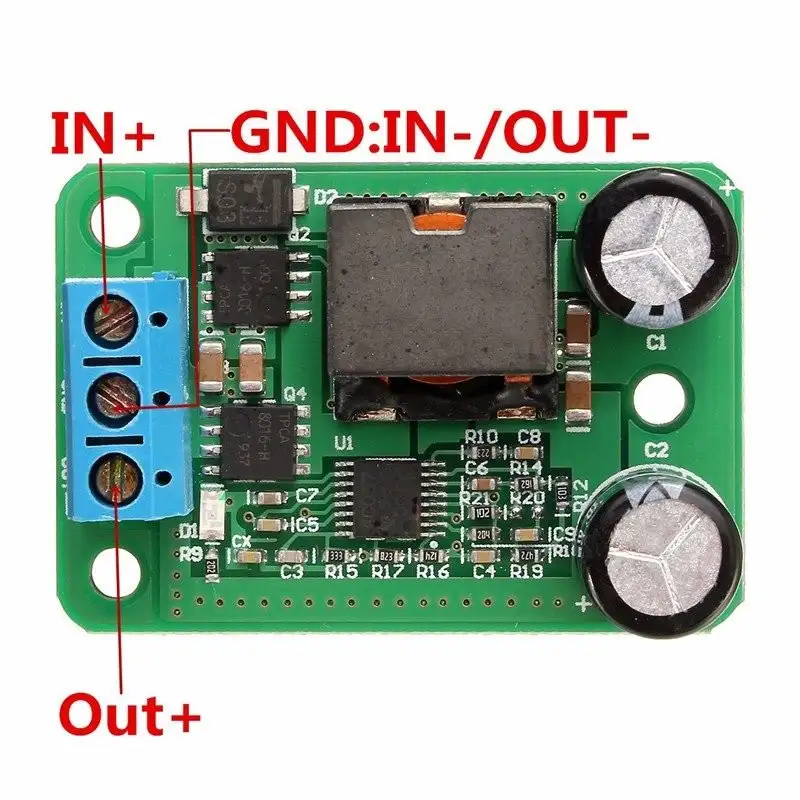

Pins Configuration:

In+: Input positive
Out+: Output positive
GND: IN-/OUT

Package Includes:

Specifications:

Input voltage	9-35V
Output voltage	5V
Output current	5A
Output power	25w

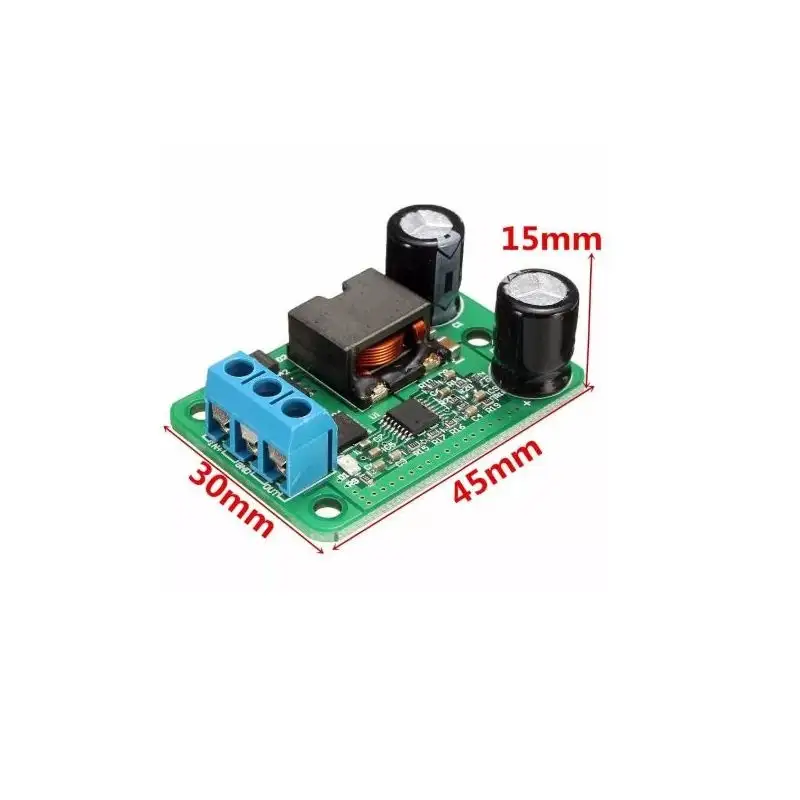

Dimensions(LxWxH)	45 x 31 x 16
Weight	12g
