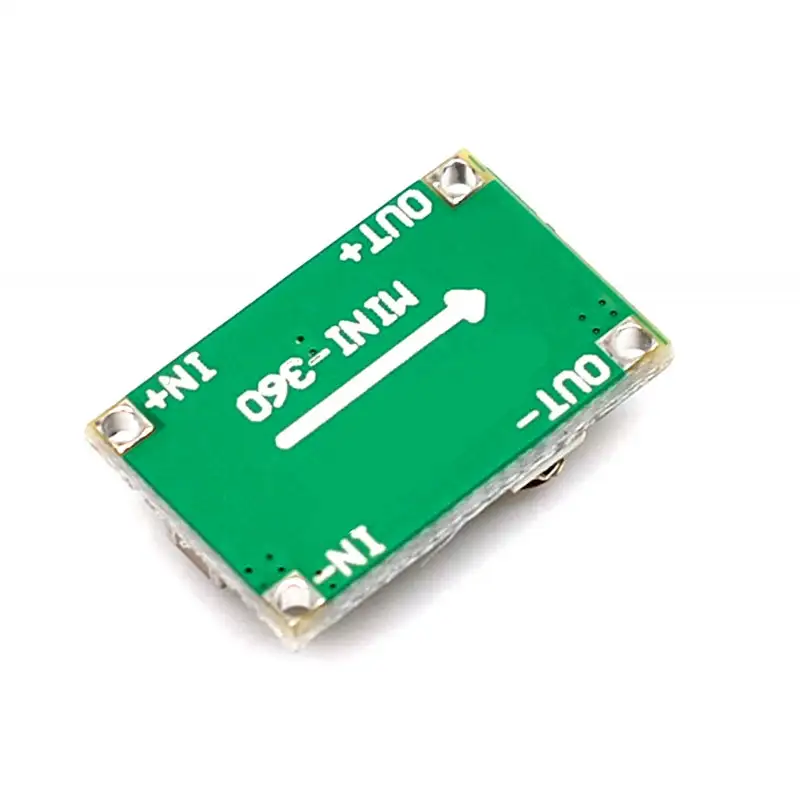

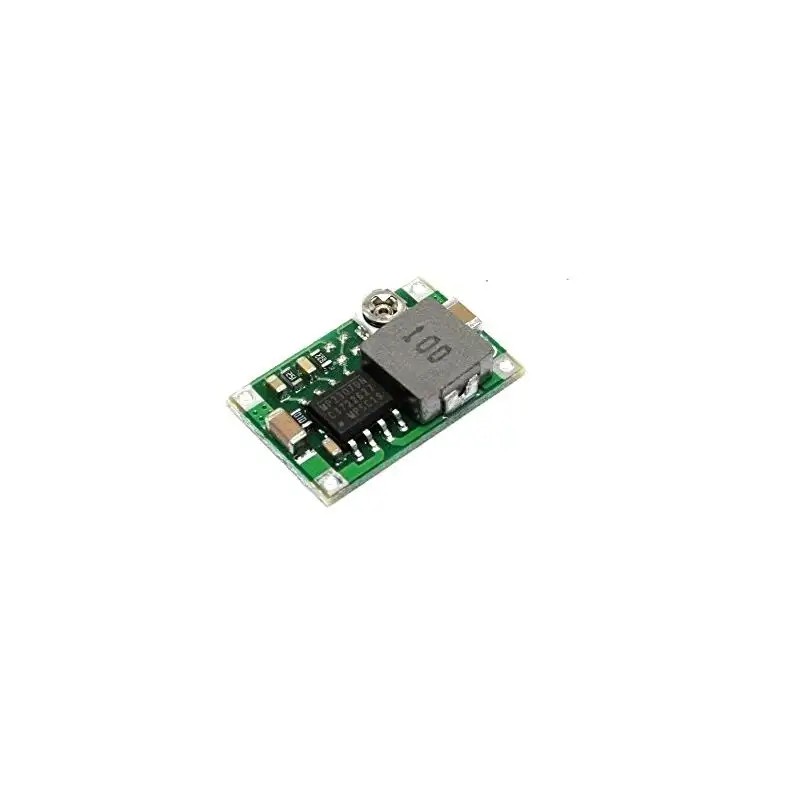

Mini 360 Step Down Buck Converter Power Supply Module

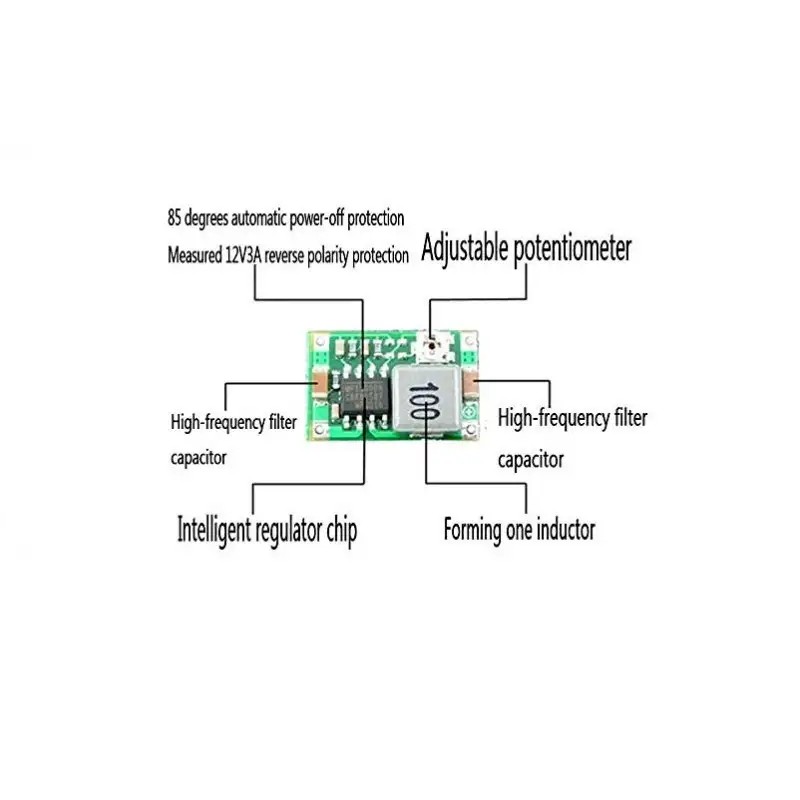

Mini 360 Step-Down Buck Converter Power Module use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient. This Module can be use as a DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply, various right size and weight for demanding applications (such as aviation models, etc.

Features:

1. Module: Non-isolated step-down module (BUCK)
2. Rectification: Synchronous rectification
3. Built-in 160C thermal shutdown
4. Output ripple: 30mV (no-load)

Package Includes:

1 x Mini 360 Step-Down Buck Converter Power Supply Module

Specifications:

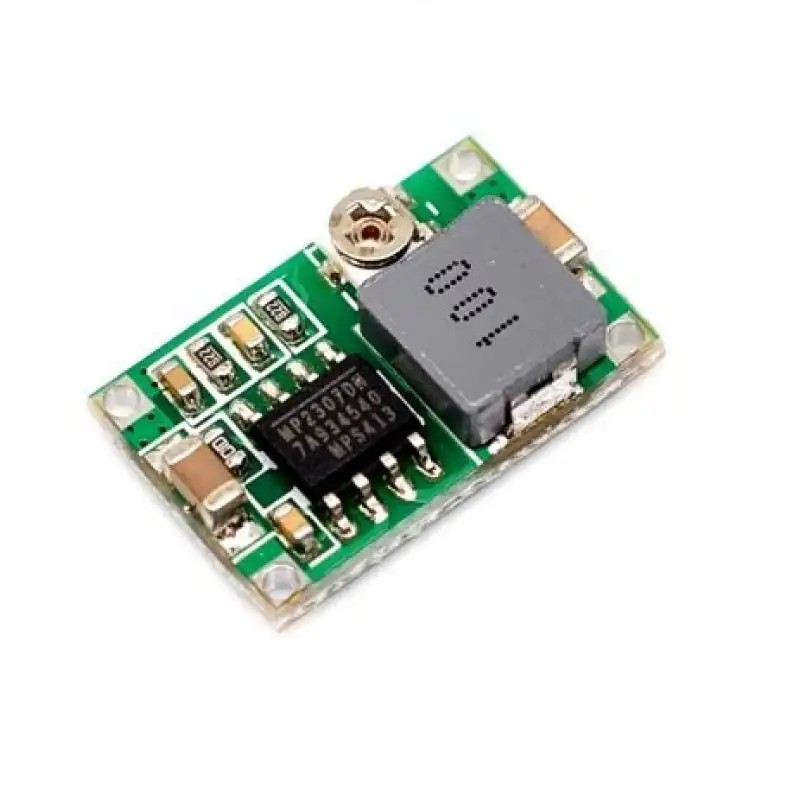

Regulator IC	MPS MP2307DN
Input Voltage Range	4.75 23VDC
Selectable Output Voltage	1.0 17VDC
Rated Current	1.8A Continuous 3A Surge Current
Maximum conversion efficiency	95% (5Vin, 3.3Vout ~200mA output)
Switching Frequency	340kHz
No-load output Ripple	30mV
Load Regulation	±0.5%
Voltage Regulation	±2.5%
Operational Temperature Range(°C)	-40 to +85

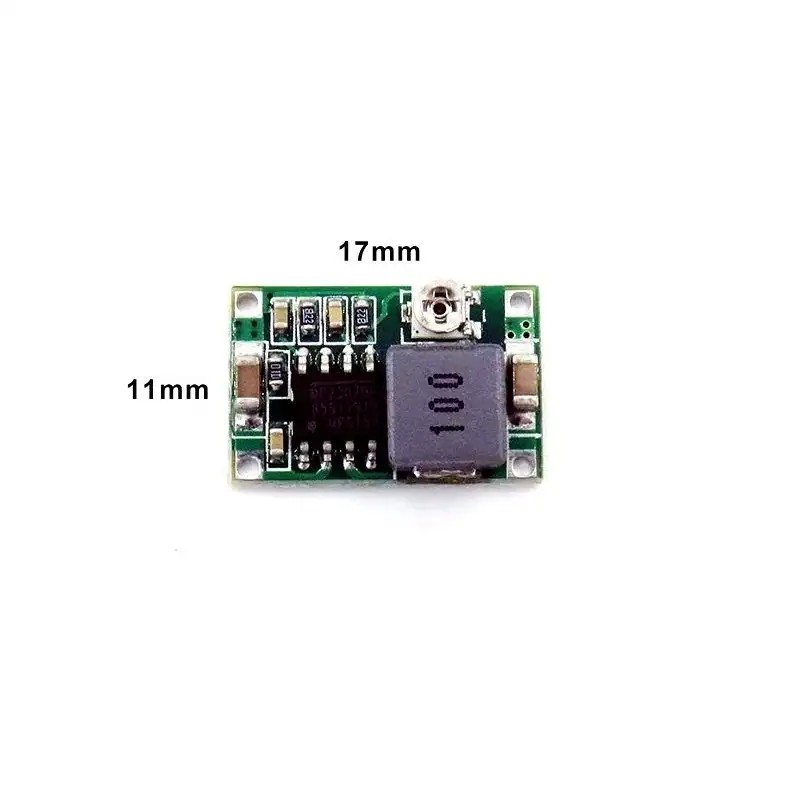

Length (mm)	17
Width (mm)	11
Height (mm)	3.8
Weight (gm)	2
