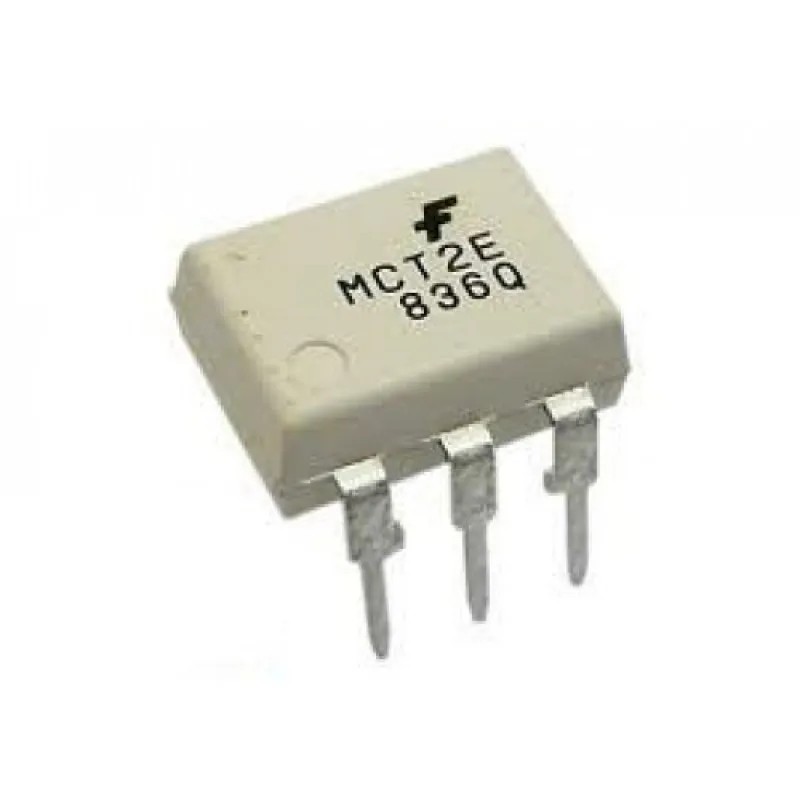

MCT2E Optocoupler Phototransistor IC DIP-6 Package

The MCTE  is an Industry Standard Single Channel Photo transistor. Each optocoupler consists of gallium arsenide infrared LED and a silicon NPN photo transistor. These couplers are Underwriters Laboratories (UL) listed to comply with a 5300 VRMS isolation test voltage. This isolation performance is accomplished through double molding isolation manufacturing process. Compliance to DIN EN 60747-5-2(VDE0884)/ DIN EN 60747-5-5 pending partial discharge isolation specification is available for these families by ordering option 1. These isolation processes and the ISO 9001 quality program results in the highest isolation performance available for a commercial plastic photo transistor optocoupler. The devices are available in lead formed configuration suitable for surface mounting and are available either on tape and reel, or in standard tube shipping containers.

Features:-

• Interfaces with common logic families

• Input-output coupling capacitance < 0.5 pF

• Industry Standard Dual-in line 6-pin package

• 5300 VRMS isolation test voltage

Applications:-

• AC mains detection

• Reed relay driving

• Switch mode power supply feedback

• Telephone ring detection

• Logic ground isolation

• Logic coupling with high frequency noise rejection

Specification:-

Symbol	Parameter	Value	Unit
IF	Forward current	60	mA
PD	Power dissipation	150	mW
VR	Reverse Voltage	6	V
Tstg	Storage temperature range	- 55 to + 150	°C
TOPR	Operating Temperature	- 55 to + 150	°C
TSOL	Lead Solder Temperature	260 for 10 sec	°C
IFSM	Surge current	2.5	A
VCEO	Collector-emitter breakdown voltage	70	V
VEBO	Emitter-base breakdown voltage	7	V
IC	Collector current	100	mA
