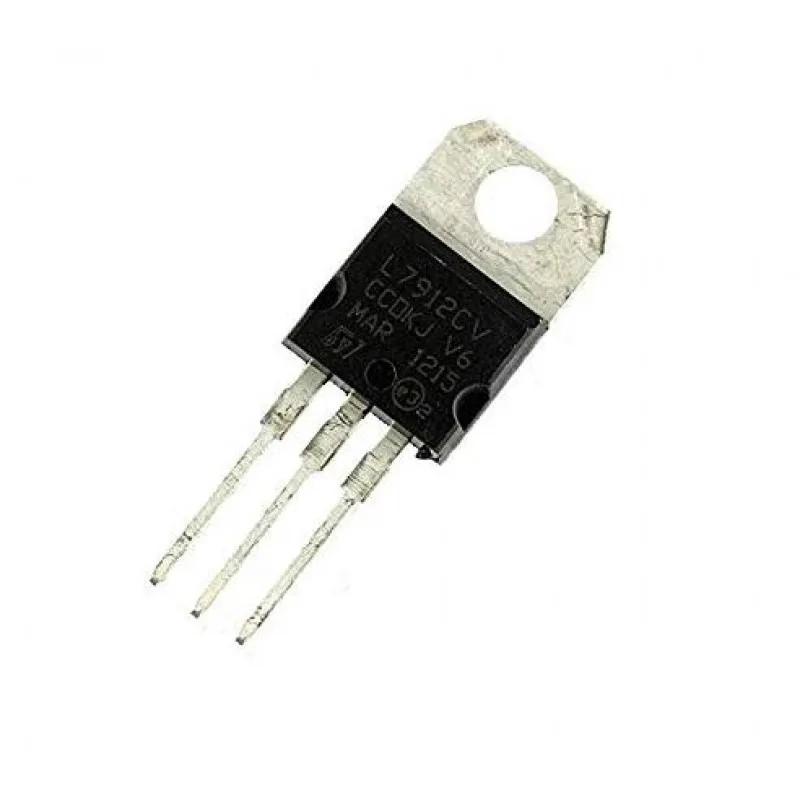

LM7912 IC - 12V Negative Voltage Regulator IC

The LM7912 series of three terminal negative regulators are available in TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting,thermal shut down and safe operating area protection, making it essentially indestructible.

Features:-

• Output Current in Excess of 1A

• Output Voltages of -5, -6, -8 , -9, -10, -12, -15, -18 and -24V

• Internal Thermal Overload Protection

• Short Circuit Protection

• Output Transistor Safe Operating Area Compensation

Specification:-

Symbol	Parameter	Min	Type	Max	Units
VO	Output Voltage	-11.5	-12	-12.5	V
Regline	Line Regulation		12	240	m V
Regload	Load Regulation		12	240	m V
IQ	Quiescent Current		3	6	°C
RR	Ripple Rejection	54	60		d B

Related Document:-

LM7912 IC Data Sheet
