- LM7905 IC - 5V Negative Voltage Regulator IC
Click Image to Preview

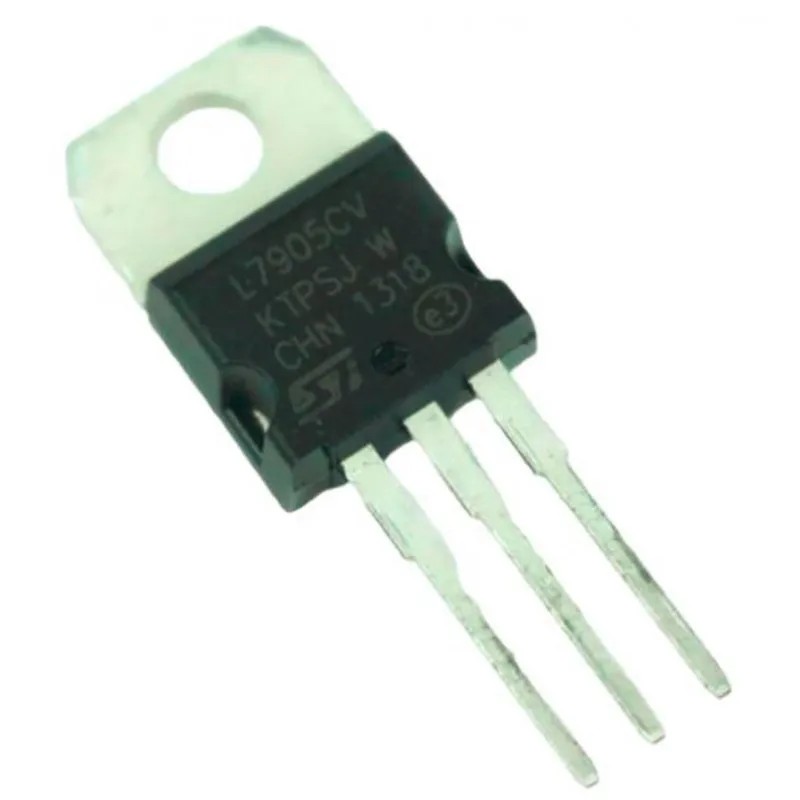

LM7905 IC - 5V Negative Voltage Regulator IC
Brand: Generic | SKU: 5150152
₹ 16.00
₹ 29.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
The LM7905 series of three terminal negative regulators are available in TO- IC Data Sheetnd with several fixed output voltages, making them useful in a wide range  of  applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible.
Features:-
• Output Current in Excess of 1A
• Output Voltages of -5, -6, -8 , -9, -10, -12, -15, -18 and -24V
• Internal Thermal Overload Protection
• Short Circuit Protection
• Output Transistor Safe Operating Area Compensation
Specification:-
| Symbol | Parameter | Min | Type | Max | Units |
| VO | Output Voltage | -4.8 | -5 | -5.2 | V |
| Regline | Line Regulation |
|
35 | 100 | m V |
| Regload | Load Regulation |
|
10 | 100 | m V |
| IQ | Quiescent Current |
|
3 | 6 | °C |
| RR | Ripple Rejection | 54 | 60 |
|
d B |
