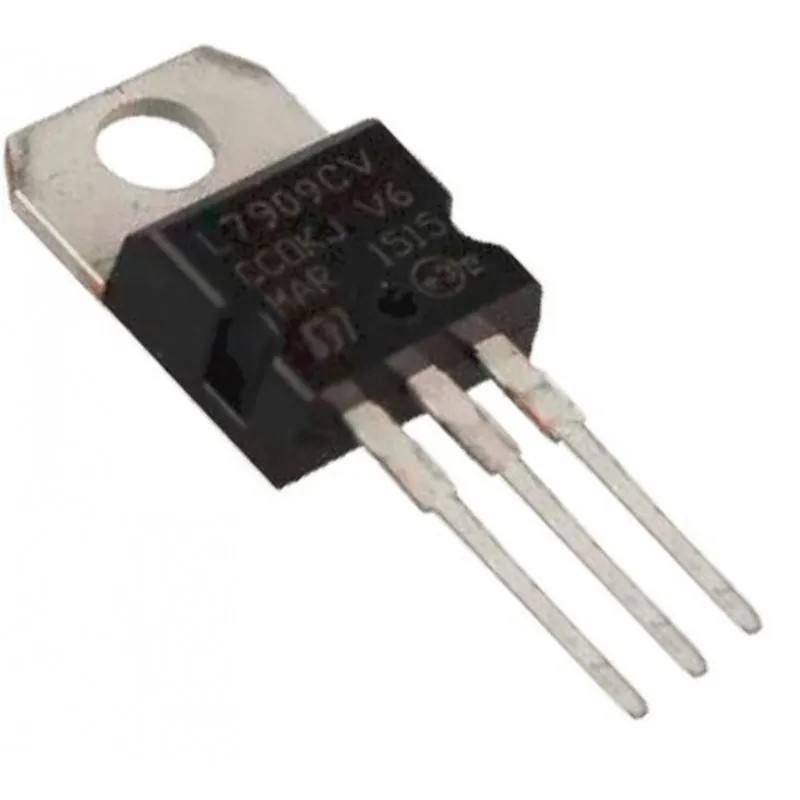

The  LM7909 series of three terminal negative regulators are available in TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible
Features:-
• Output Current in Excess of 1A
• Output Voltages of -5, -6, -8 , -9, -10, -12, -15, -18 and -24V
• Internal Thermal Overload Protection
• Short Circuit Protection
• Output Transistor Safe Operating Area Compensation
Specification:-
Symbol | Parameter | Min | Type | Max | Units |
VO | Output Voltage | -4.8 | -5 | -5.2 | V |
Regline | Line Regulation |
|
35 | 100 | m V |
Regload | Load Regulation |
|
10 | 100 | m V |
IQ | Quiescent Current |
|
3 | 6 | °C |
RR | Ripple Rejection | 54 | 60 |
|
d B |
