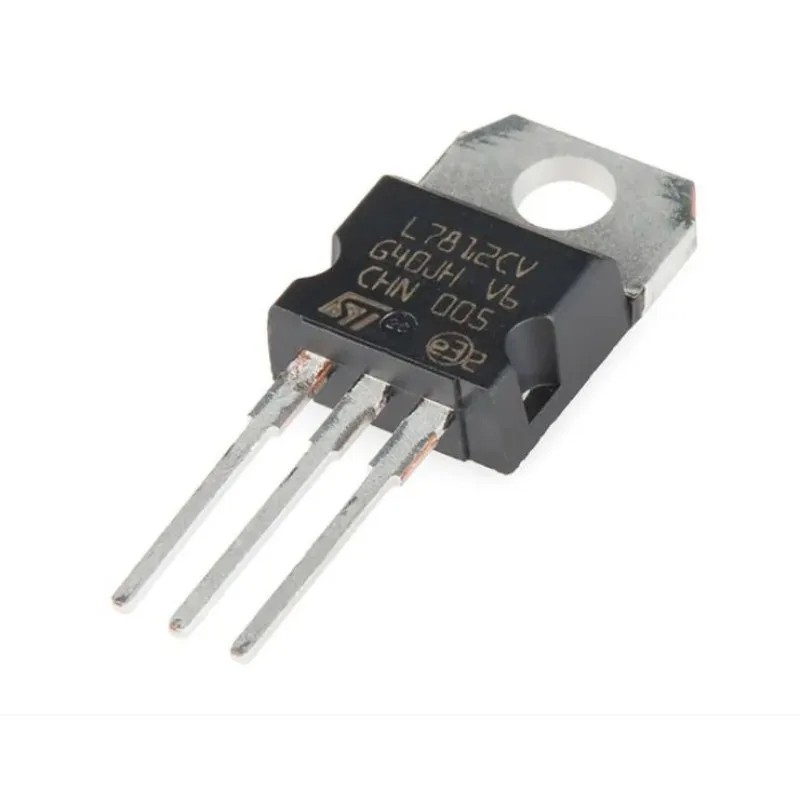

LM7812 IC - 12V Positive Voltage Regulator IC

The LM7812 series of three terminal positive regulators are available in the TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.

Features:-

• Output Current up to 1A

• Output Voltages of 5, 6, 8, 9, 12, 15, 18, 24

• Thermal Overload Protection

• Short Circuit Protection

• Output Transistor Safe Operating Area Protection

Specification:-

Symbol	Parameter	Min	Type	Max	Units
VO	Output Voltage	11.5	12	12.5	V
Regline	Line Regulation		10	240	m V
Regload	Load Regulation		11	240	m V
IQ	Quiescent Current		5.1	8	°C
RR	Ripple Rejection	55	71		d B

Related Document:-

LM7812 IC Data Sheet
