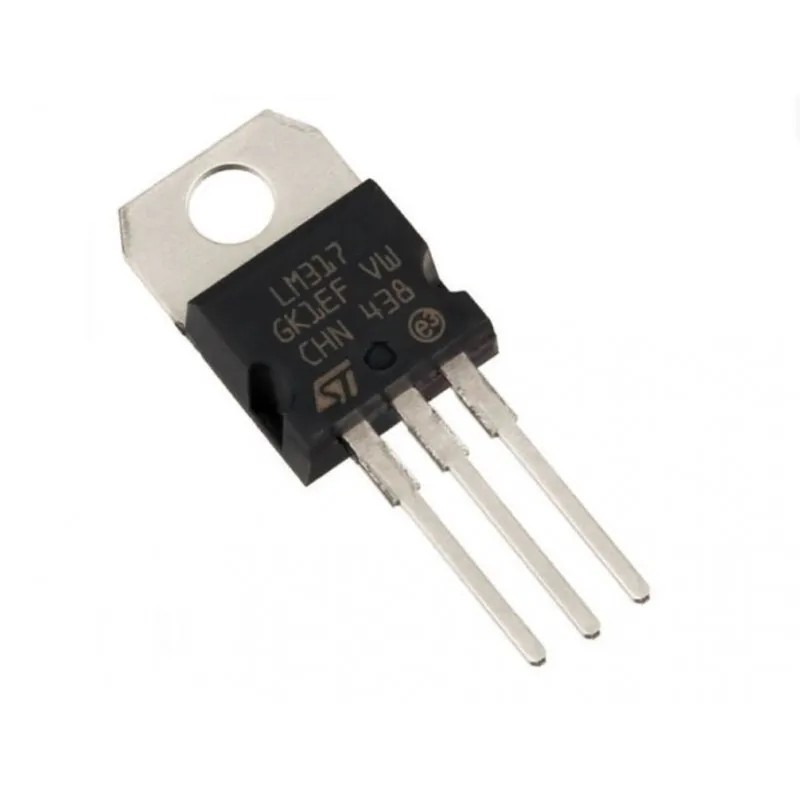

LM317 IC - Variable Voltage Regulator IC

The LM317 is an adjustable three-terminal positive-voltage regulator capable of supplying more than 1.5 A over an output-voltage range of 1.25 V to 37 V. It is exceptionally easy to use and requires only two external resistors to set the output voltage. Furthermore, both line and load regulation are better than standard fixed regulators.

Features:-

• Output Voltage Range Adjustable From 1.25 V to 37 V

• Output Current Greater Than 1.5 A

• Internal Short-Circuit Current Limiting

• Thermal Overload Protection

• Output Safe-Area Compensation

Specification:-

Parameter	Specification
Input Voltage	40V
Operating virtual junction temperature	150 °C
Storage Temperature Range	−65°C to +175°C
Lead Temperature	260°C

Related Document:-

LM317 IC Data Sheet
