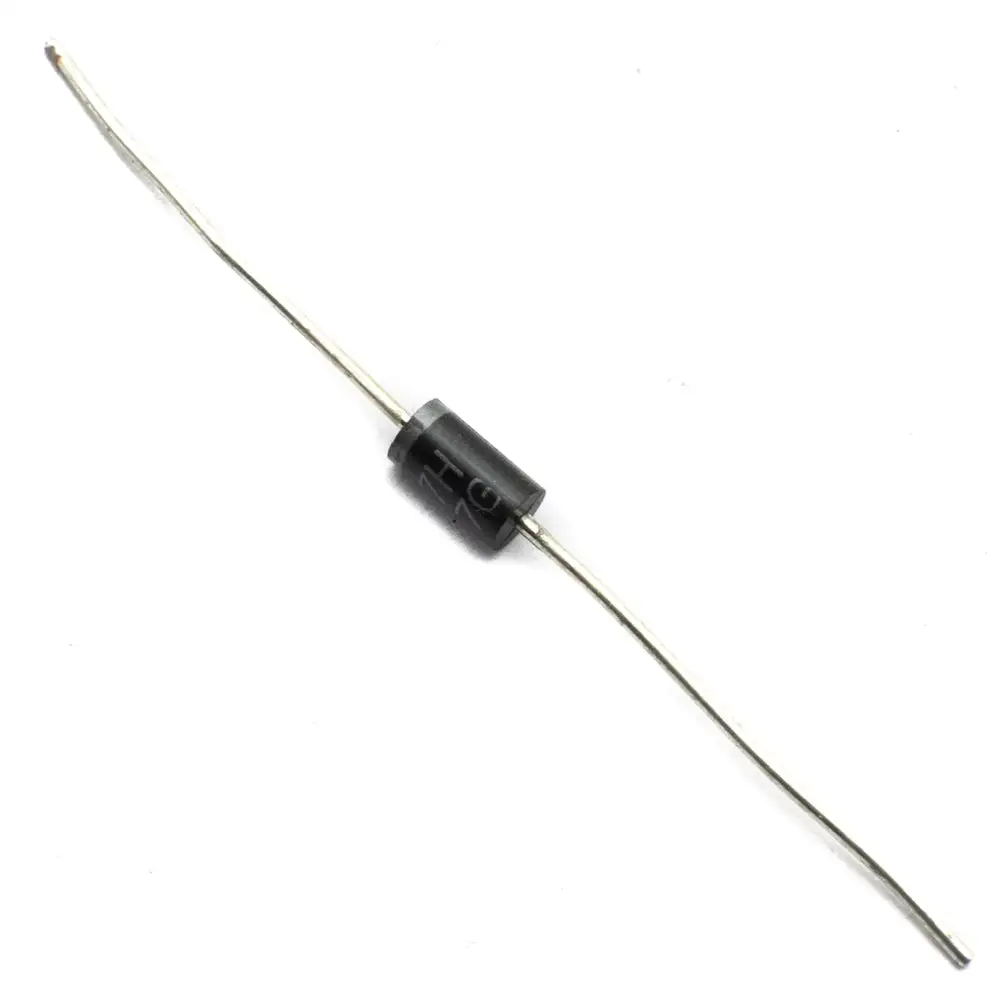

FR207 2A Fast Recovery Rectifier
Brand: Generic | SKU: 2541349
₹ 1.11
₹ 13.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
The diode is a device that allows current flow through only one direction. That is the current should always flow from the anode to the cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above.For FR207 Diode, the maximum current carrying capacity is 2A it withstands peaks up to 70A. Hence we can use this in circuits that are designed for less than 2A. The reverse current is 5uA which is negligible.
Features
Forward Voltage
1.3V (1A)
Peak Reverse Voltage
1000V
Maximum RMS Voltage
700V
Average Forward Current
2A
Non-Repetitive Peak Forward Surge Current
70A
Operating Temperature Range
-55°C to + 150°C
Low Reverse Leakage Current
5µA
