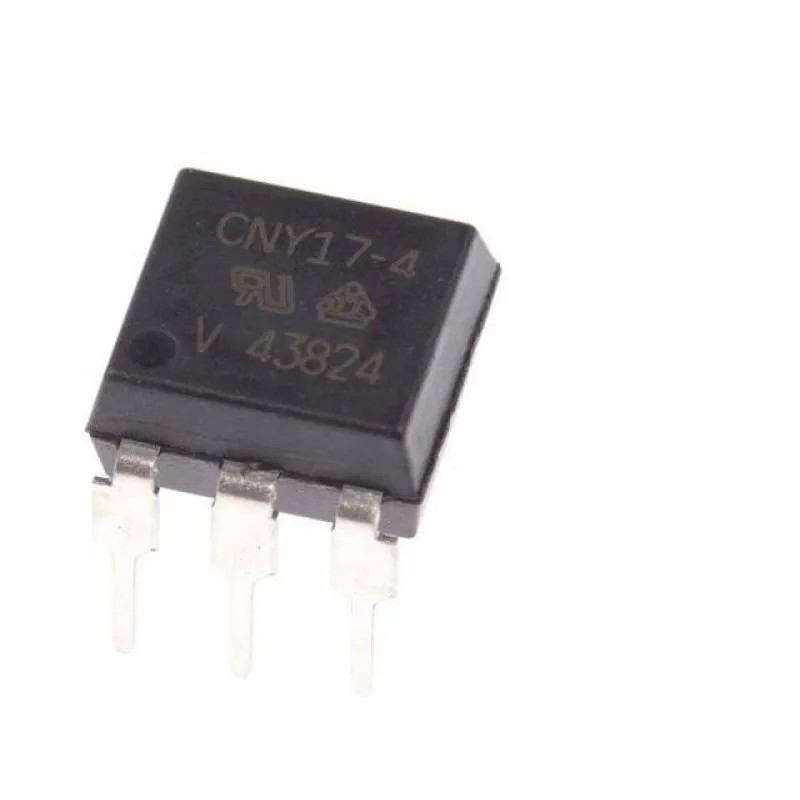

CNY17-4 IC - Phototransistor Optocoupler IC

The CNY17-4 is an optically coupled pair consisting of a gallium arsenide infrared emitting diode optically coupled to a silicon NPN phototransitor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. The CNY17 can be used to replace relays and transformers in many digital interface applications, as well as analog applications such as CRT modulation.

Features:-

• Isolation test voltage: 5000 VRMS

• Long term stability

• Industry standard dual-in-line package

Specification:-

Parameter	Value
Package / Case	DIP-6
Length	8.7 mm
Width	6.5 mm
Height	3.81 mm
Collector-Emitter Breakdown Voltage	70 V
Current Transfer Ratio	320%
Fall Time	15 us
Isolation Voltage	5000 Vrms
Maximum Collector Current	100 mA
Maximum Collector Emitter Saturation Voltage	0.4 V
Maximum Collector Emitter Voltage	70 V
Maximum Operating Temperature	+ 100 C
Minimum Operating Temperature	- 55 C
Mounting Style	Through Hole
Number of Channels	1 Channel
Output Type	NPN Phototransistor
Packaging	Tube
Pd - Power Dissipation	150 mW
Product Type	Transistor Output Optocouplers
Rise Time	4.6 us
Series	CNY
