4N38 Optocoupler Phototransistor IC DIP-8 Package

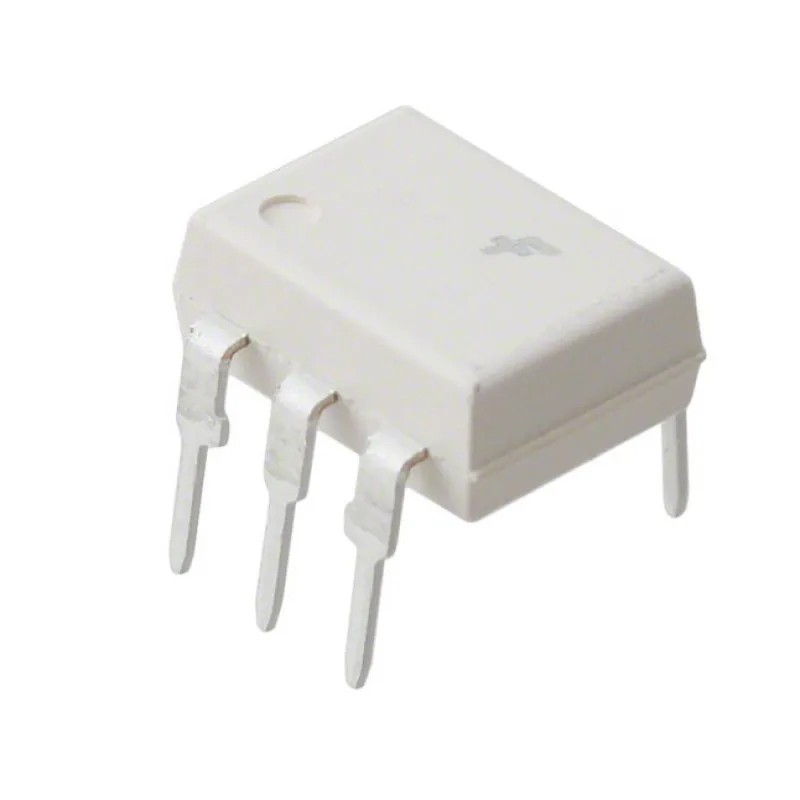

4N38 optocoupler consists of gallium arsenide infrared LED and a silicon NPN phototransistor .These couplers are Underwriters Laboratories (UL) listed to comply with a 5000 VRMS isolation test voltage. This isolation performance is accomplished through double molding isolation manufacturing process. Compliance to DIN EN 60747-5-5 partial discharge isolation specification is available for these families by ordering option 1. These isolation processes and the ISO9001 quality program results in the highest isolation performance available for a commercial plastic phototransistor optocoupler .The devices are available in lead formed configuration suitable for surface mounting and are available either on tape and reel, or in standard tube shipping containers.

Features:-

• Isolation test voltage 5300 VRMS
• Interfaces with common logic families
• Input-output coupling capacitance < 0.5 pF
• Industry standard dual-in-line 6 pin package

APPLICATIONS:-

• AC mains detection
• Reed relay driving
• Switch mode power supply feedback
• Telephone ring detection
• Logic ground isolation
• Logic coupling with high frequency noise rejection

Specification:-

Symbol	Parameter	Value	Unit
VR	Reverse voltage	6	V
IF	Forward current	60	mA
IFSM	Surge current	2.5	A
Pdiss	Power dissipation	100	mW
VCEO	Collector-emitter breakdown voltage	70	V
VEBO	Emitter-base breakdown voltage	7	V
IC	Collector current	50	mA

Package Includes:-

1 x 4N38 Optocoupler Phototransistor IC DIP-8 Package
