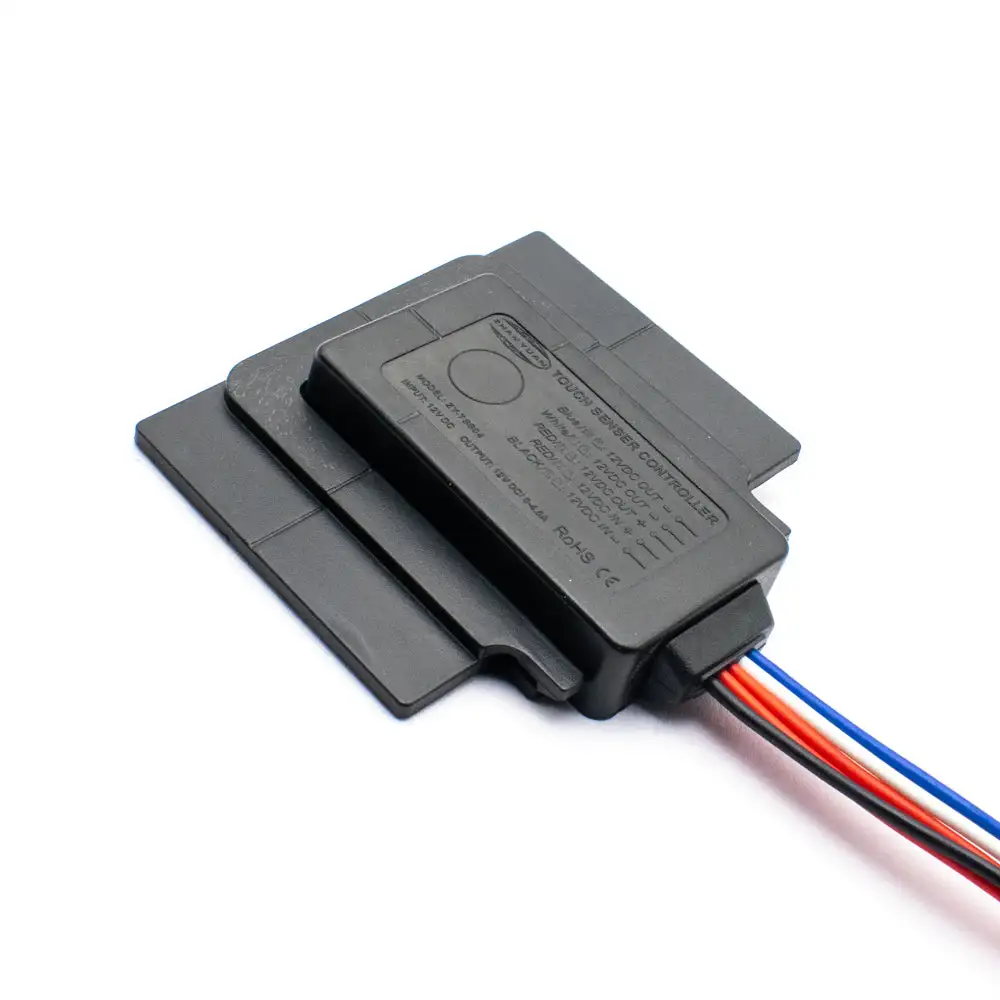

ZY-TSS04 Mirror Touch Switch for ON/OFF and Dimming Control with Two Outputs

Touch Control Sensor Switch for Mirror Light can be powered by simply supplying a 12VDC. It has a switch control function to light up LED lights from a single touch. The product is specially designed for smart light mirrors. It is suitable for the control of two mirror lights, single touch switch controls both the LED’s one after the other, which means on the first touch the LED connected with blue wire will glow. On the second touch, the LED connected with white wire will glow and on the third touch both the LED’s will glow together. The fourth touch switches off both the LED’s. The module has a feature to control the intensity of both the LED strips.

The touch switch has a feature of backlight, according to this as the power gets supplied to the module the touch switch starts glowing blue and whenever the LED is switched on the blue color changes to white.

Switches Installation Procedure:

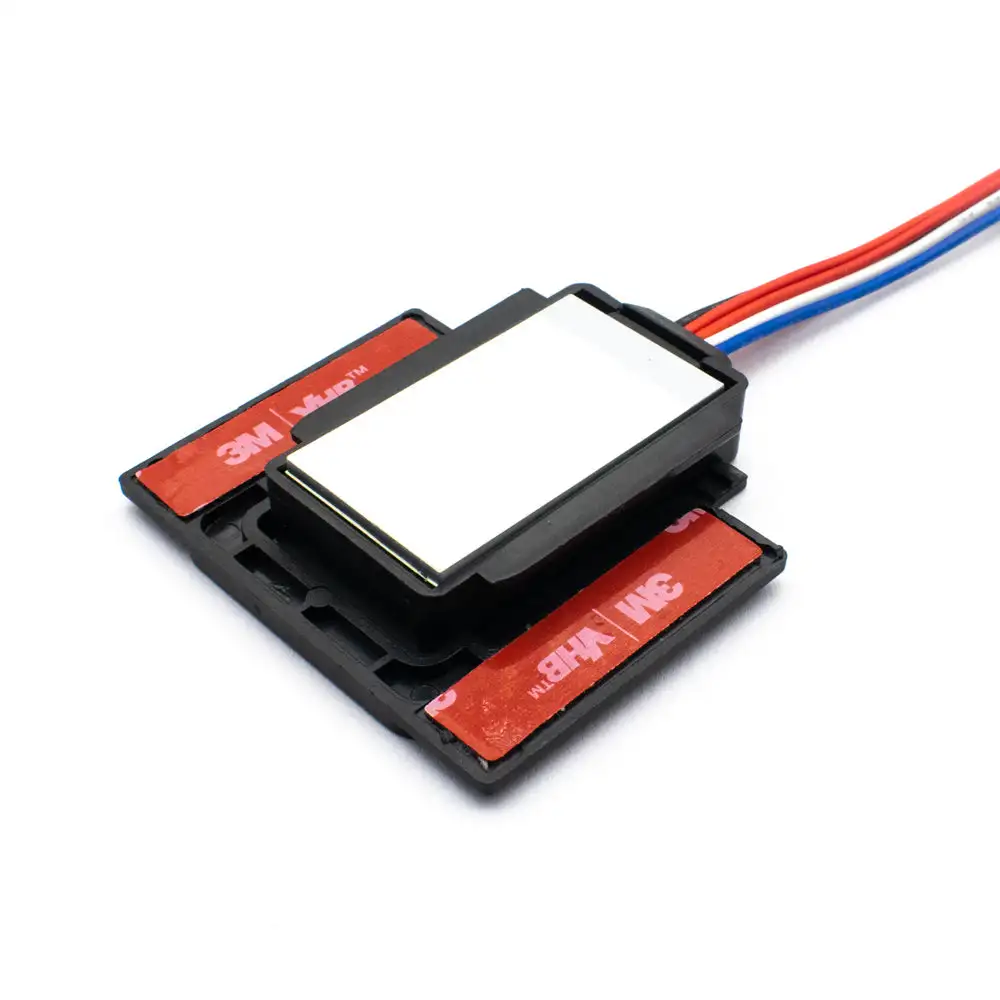

1. On the mercury side of the mirror sand beating Or use the laser to carve out the icon of the switch button.2. Remove the 3M sticker on the back of the bracket to facilitate the next step of pasting fixing installation.3. Take the icon of the switch button as the centre, and stick the touch switch to the icon of the button.4. After installation, touch the switch to power on, and the mirror can see the backlight icon.
