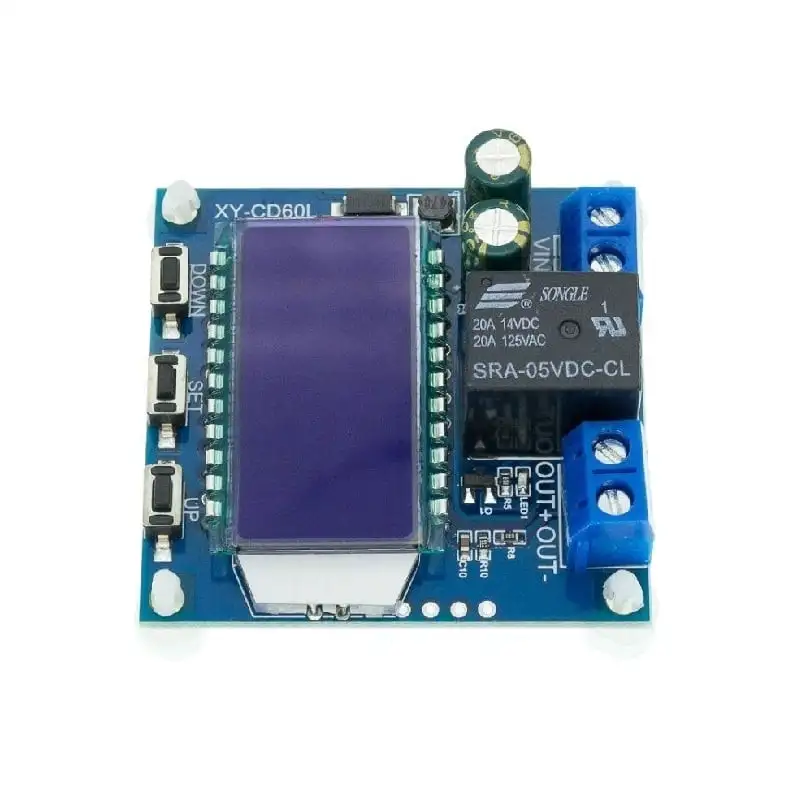

XY-CD60L Solar Battery Charger Controller Module DC6-60V Charging Discharge Control Low Voltage Current Protection Board

The XY-CD60L Solar Battery Charger Controller is a device designed for charging and regulating batteries using solar power.

It is a microcontroller-based intelligent control system that features high precision temperature compensation and provides protection against overcharging, over-discharging, short-circuits, and reverse polarity. This controller is ideal for use in solar-powered lighting systems, off-grid solar power systems, and other solar-powered projects.

This type of module is commonly used in solar power setups, including solar panels, batteries, and other components, to efficiently manage the charging and discharging of batteries, maximizing their lifespan and ensuring the systems overall safety and efficiency.

Note: The actual product may vary in slight variation in color and components with the image shown depending upon quantity availability.

Features:

1. Microcontroller-based intelligent control system
2. High precision temperature compensation
3. Protection against overcharging, over-discharging, short-circuits, and reverse polarity
4. Automatic voltage regulation
5. LCD display for easy monitoring of battery status
6. Compatible with lead-acid and lithium batteries

Specifications:

1. Model: XY-CD60L
2. Maximum Input Power: 720W (12V), 1440W (24V)
3. Operating Temperature: -40C to +85C
4. Operating Humidity: 0%~95%RH
5. Control voltage: 6-60V

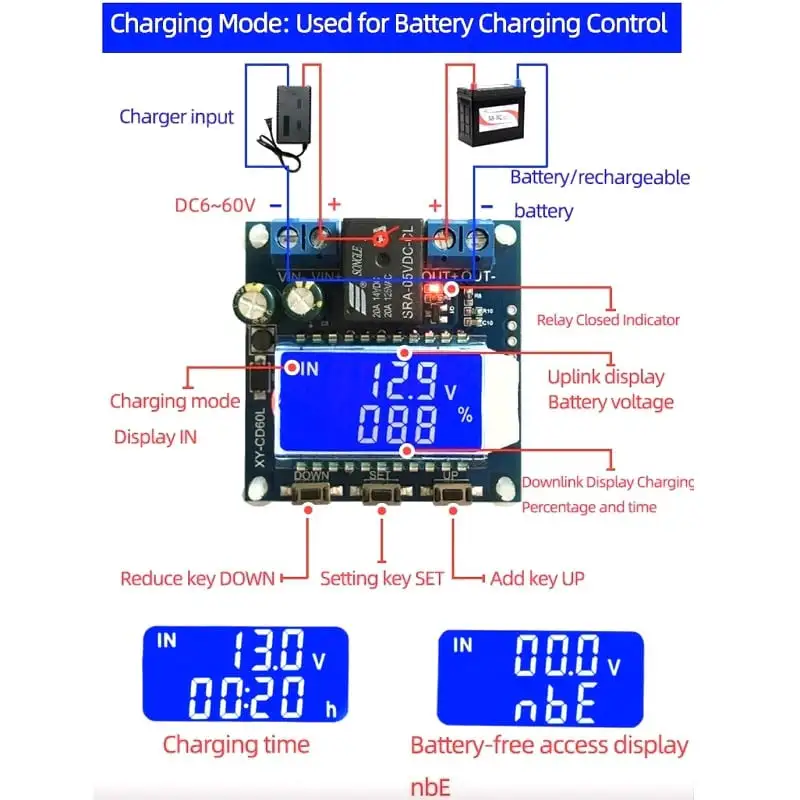

6. Modes: Charging Mode; Discharging Mode
7. Size: 46mm x 45mm x 20mm
8. Weight: 24g

Package Includes:

1 x XY-CD60L Solar Battery Charger Controller Module DC6-60V Charging Discharge Control, Low Voltage Current Protection Board
