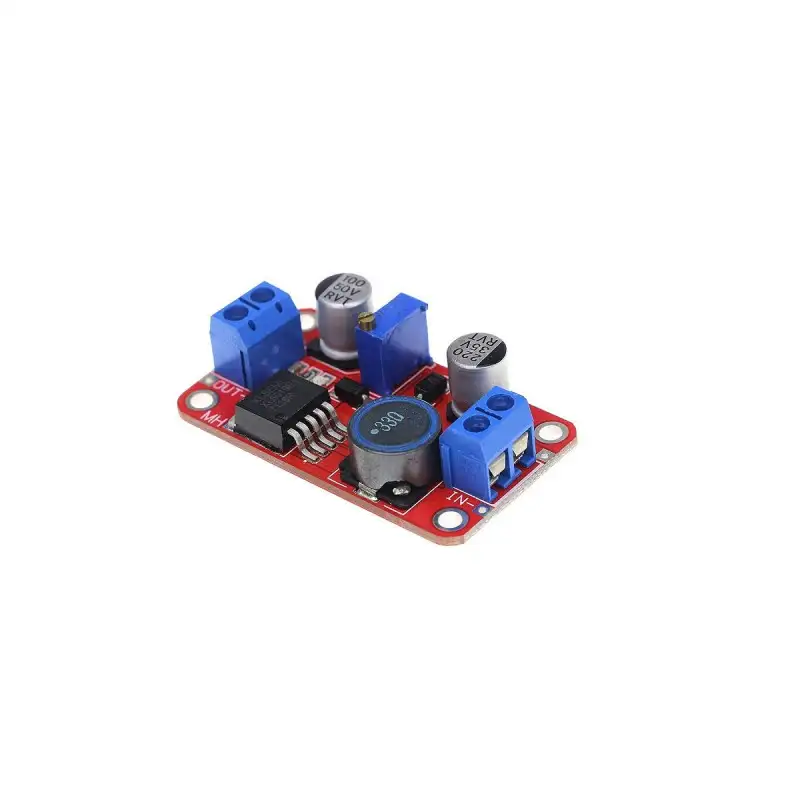

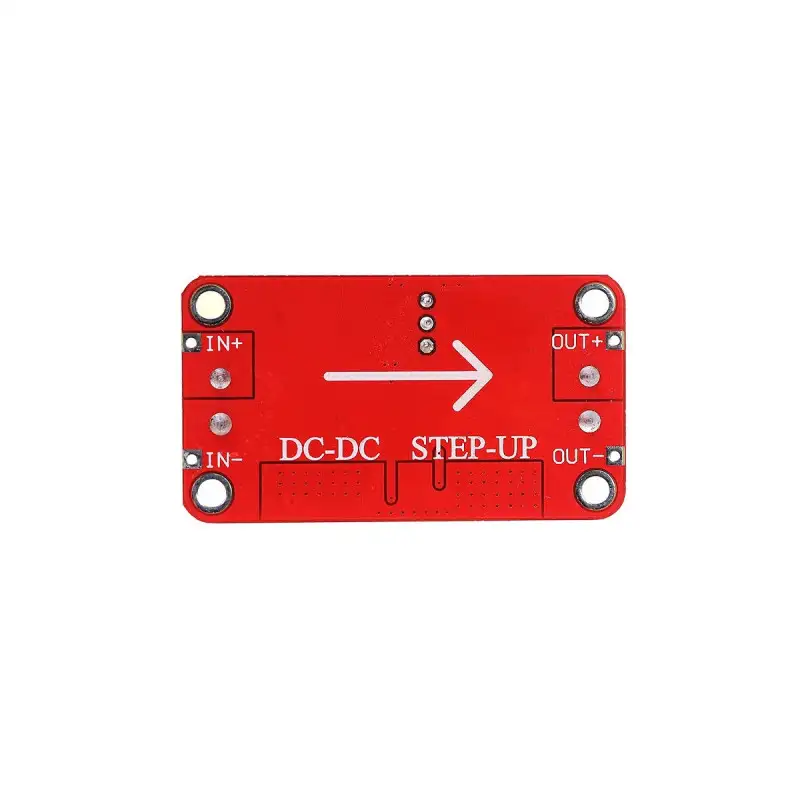

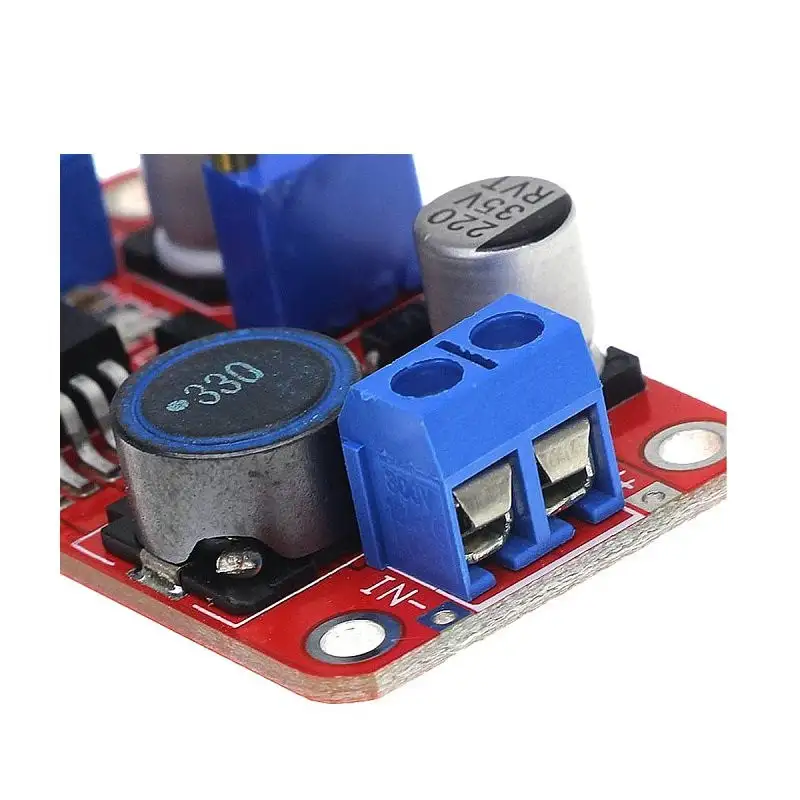

XL6019 DC-DC 5A Adjustable Boost Power Supply Module

DC to DC step up module based on the upgraded XL-Semi XL-6019, offering up to 5A switching current and conversion efficiency of up to 97%

Features:

1. With reverse connect protection, output 5V / 12V / 24V adjustable, beyond LM2577 performance. The built-in thermal protection, over-current protection reliability.
2. Wide input voltage range, the input voltage up to 35V.
3. Adjustable output voltage, maximum support 40V.
4. The built-in thermal protection, over-current protection full reliability protection circuit, high reliability.
5. System conversion efficiency can achieve 90% above, convenient thermal design.
6. TO263-5 l standard packaging, suitable for booster application within 30W.

Specification:

1. Output ripple: 100mv (MAX)
2. Working Temperature: Industrial (-40 C to + 85 C)
3. Voltage regulation: 0.5% MS + -> Positive; IN > Negative; OUT + -> Positive; OUT >
4. Negative Output Voltage: DC 5-40V (Adjustable)
5. Input Current: 5A (MAX)
6. Input Voltage: DC 3-35 V Switching
7. Frequency: 220 kHZ
8. Package Includes:1 pc XL6019
9. Boost Module Size: Approx 50 x 28 x 13mm (L x W x H)
10. Load regulation: 0.5%
11. Conversion efficiency: 94% (MAX)

Package Includes:

1 x XL6019 DC-DC 5A Adjustable Boost Power Supply Module
