XH-W1219 12V Digital Red and Green Display Temperature Controller Module with NTC Waterproof Temperature Sensor

In Stock

Brand: Generic | SKU: 7848406

₹ 263.00

~~₹ 388.00~~

Save 32%

Tax Included and Shipping Rate Calculated at Checkout

Min Qty: 1

Check Delivery Availability:

Enter your pincode to check delivery options

Offer & Other Details

Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
Sales Assistance: Contact us +91 8903831010 for personalized advice.

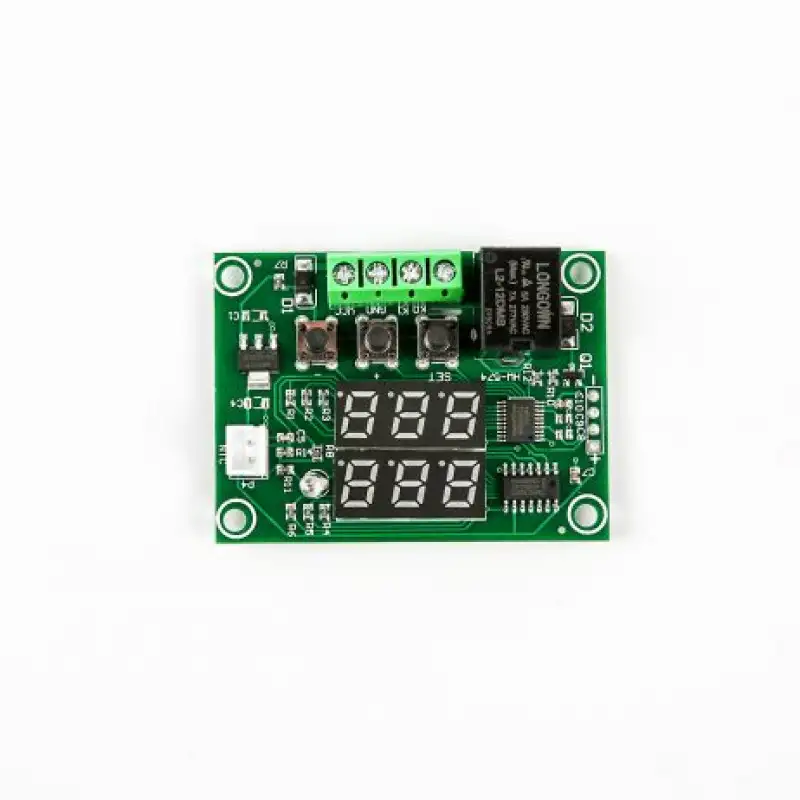

This is XH-W1219 12V Digital Red+Green Display Temperature Controller Module W/ NTC Waterproof Temperature Sensor. The XH-W1219 thermostat module with its C and I/O (sensor input, keys, double display, relay) can be re-programmed for automation tasks, and its easy to work with.

Digital thermostat module. The temperature controller/switch with waterproof NTC probe and integrated LED display in red and green.

Note: This board is Nuvoton based.

Button Functions :

P0 ( Temperature Control Mode )

When first use this product; if you are using it for heating, please set H, if using it for cooling, please set C

P1 ( Return Difference Setting )

Long press SET key entering into the internal setting, choose P1 setting; then press SET key to achieve return difference value setting

P2 ( Temperature Calibration )

This function is for temperature calibration. If detection temperature and the actual temperature is different, then users can apply this function to calibrate

P3 ( Delay Start )

This function is for compressor cooling

P4 ( Set High-Temperature Alarm Value )

When the actual temperature is higher than this value, the screen will flash and sound an alarm

Specifications:-

Model	XH-W1219
Control Range(C)	-50 to +110
Control Precision(C)	0.1
Measuring Input	NTC10K Sensor
High-Temperature Alarm(C)	-49 to +110
Input Voltage (V)	12
Output Type	Relay Output 10A (max)
Return Difference Setting(C)	0.1 to 30
Delay Starting(min)	0 to 10
Temperature Calibration(C)	-10 to 10
Length (mm)	60
Width (mm)	44
Height (mm)	17
Weight (gm)	22
Shipment Dimensions	7 6 2 cm
