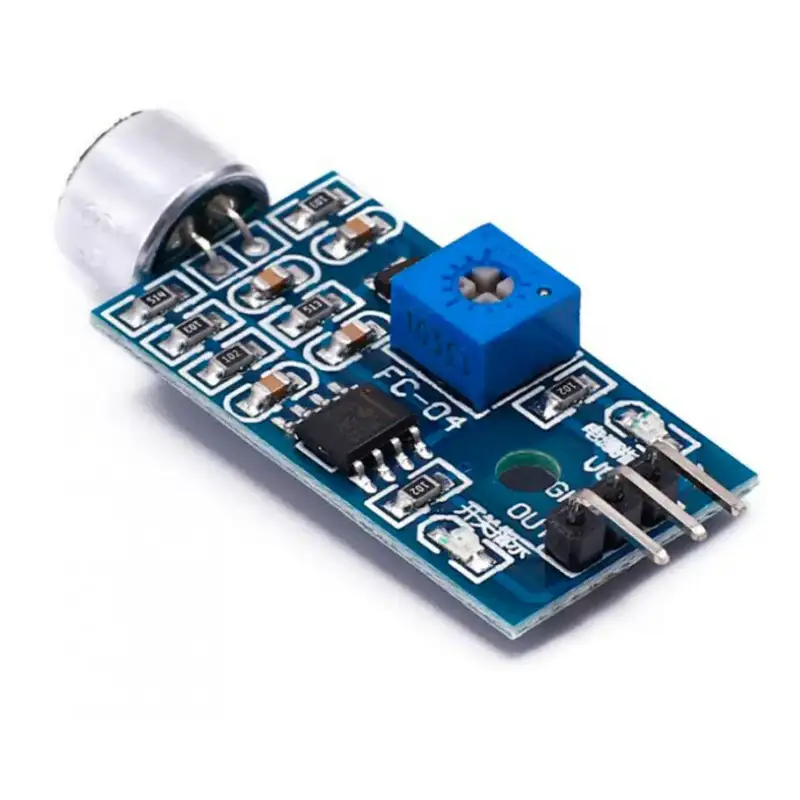

Voice Sound Detection Sensor Module

In Stock

Brand: Generic | SKU: 8755043

₹ 52.00

~~₹ 72.00~~

Save 28%

Tax Included and Shipping Rate Calculated at Checkout

Min Qty: 1

Check Delivery Availability:

Enter your pincode to check delivery options

Offer & Other Details

Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

A sound sensor is defined as a module that detects sound waves through their intensity and converts it to electrical signals.

The sound detection sensor module for Arduino detects whether the sound has exceeded a threshold value. Sound is detected via microphone and fed into an LM393 op-amp. The sound level set point is adjusted via an onboard potentiometer. When the sound level exceeds the set point, an LED on the module is illuminated and the output is sent low.

Features and Specifications:-

An detect the intensity of the sound environment, use note: the sound sensor can identify the presence of (according to the principle of vibration) or a particular frequency of sound does not recognize the volume of the sound
Sensitivity adjustable digital potentiometer to adjust (blue)
Operating voltage 3.3V-5V
Outputs digital switching output (high and low levels 0 and 1
Operating current (Vcc=5V): 4-8mA
Microphone sensitivity (1Khz): 52-48dB
Microphone Impedance: 2.2KÎ©
Microphone Frequency: 16-20Khz
Microphone S/N ratio: 54dB
Signal output indication
Single channel signal output
Outputs low level and the signal light when there is sound
