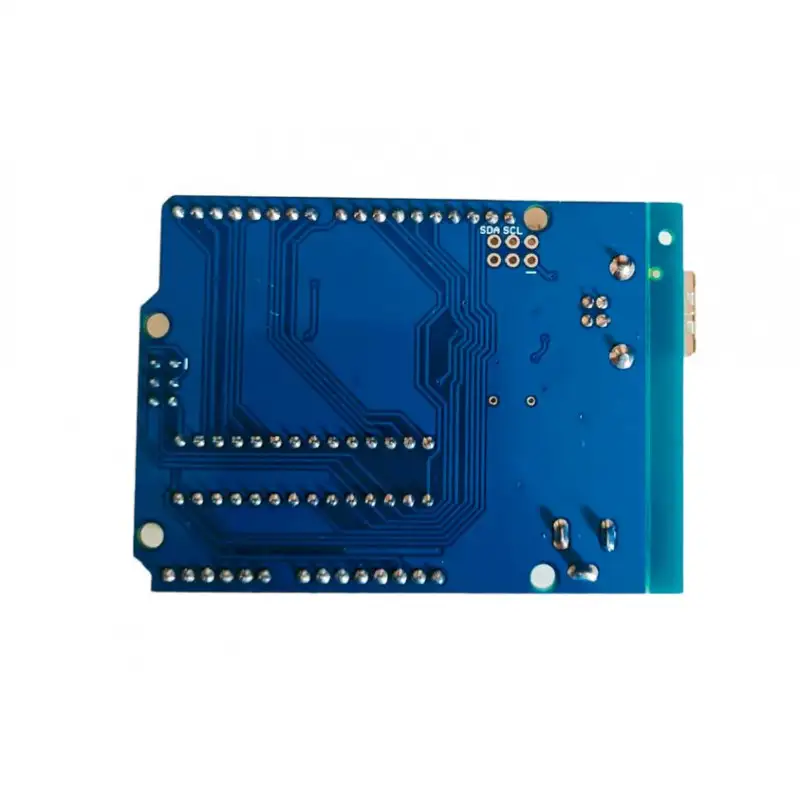

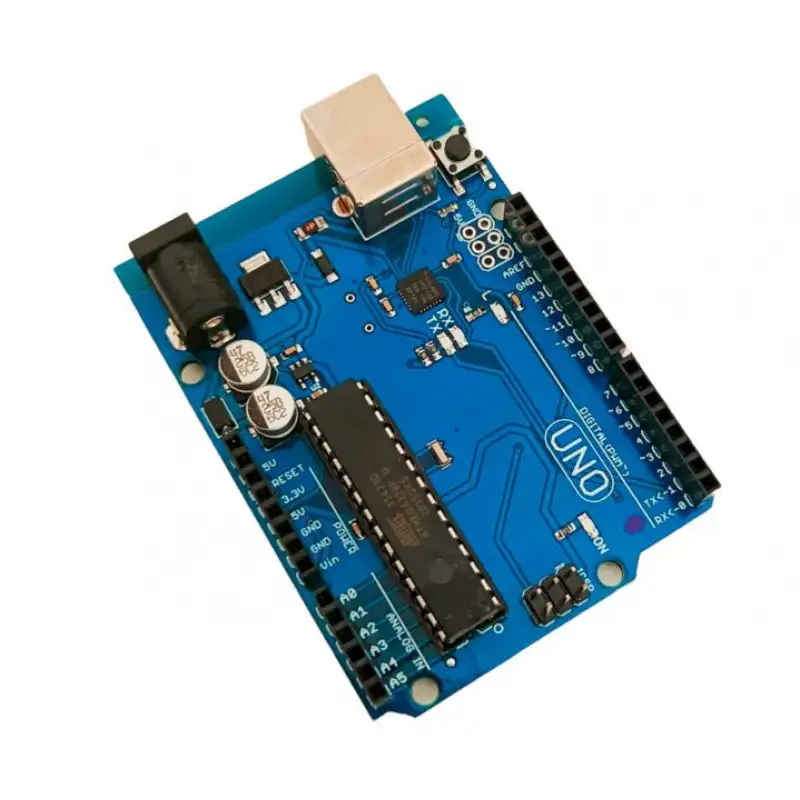

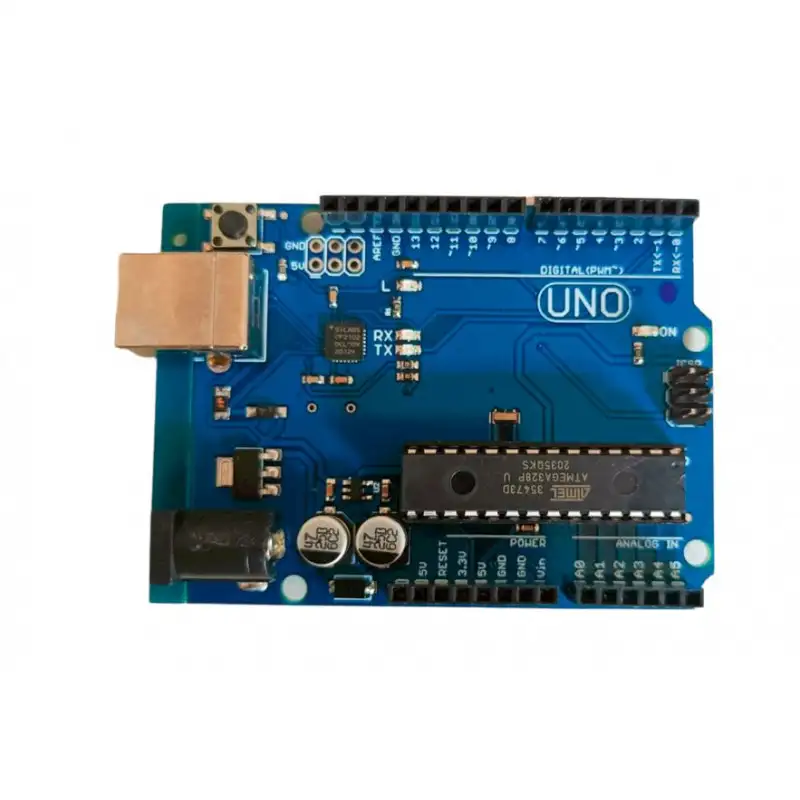

UNO R3 Development Board with CP2102 - Compatible Model High Quality

The Uno R3 CP2102 ATmega328P Development Board is the low-cost version of the popular UNO R3 Arduino. Instead of ATmega16U2 processor, it is assembled with CP2102 IC. UNO is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

Features and Specifications:

• Board Name : UNO R3 CP2102
• Microcontroller : ATmega328P
• USB-Serial IC : CP2102
• USB connector : USB-B
• Pins:

– Built-in LED Pin : 13

– Digital I/O Pins : 14

– Analog input pins : 6

– PWM pins : 6

• Communication:

– UART : Yes

– I2C : yes

– SPI : Yes

• Power:

– I/O Voltage: 5V

– Input voltage (nominal): 7-12V

– DC Current per I/O Pin: 20 mA

– Power Supply Connector: Barrel Plug

• Clock speed:

– Main Processor: ATmega328P 16 MHz

• Memory:

– ATmega328P: 2KB SRAM, 32KB FLASH, 1KB EEPROM

– Width: 53.34 mm

– Length: 68.58 mm

Package Includes:

1 x Arduino UNO R3 Development Board with CP2102
