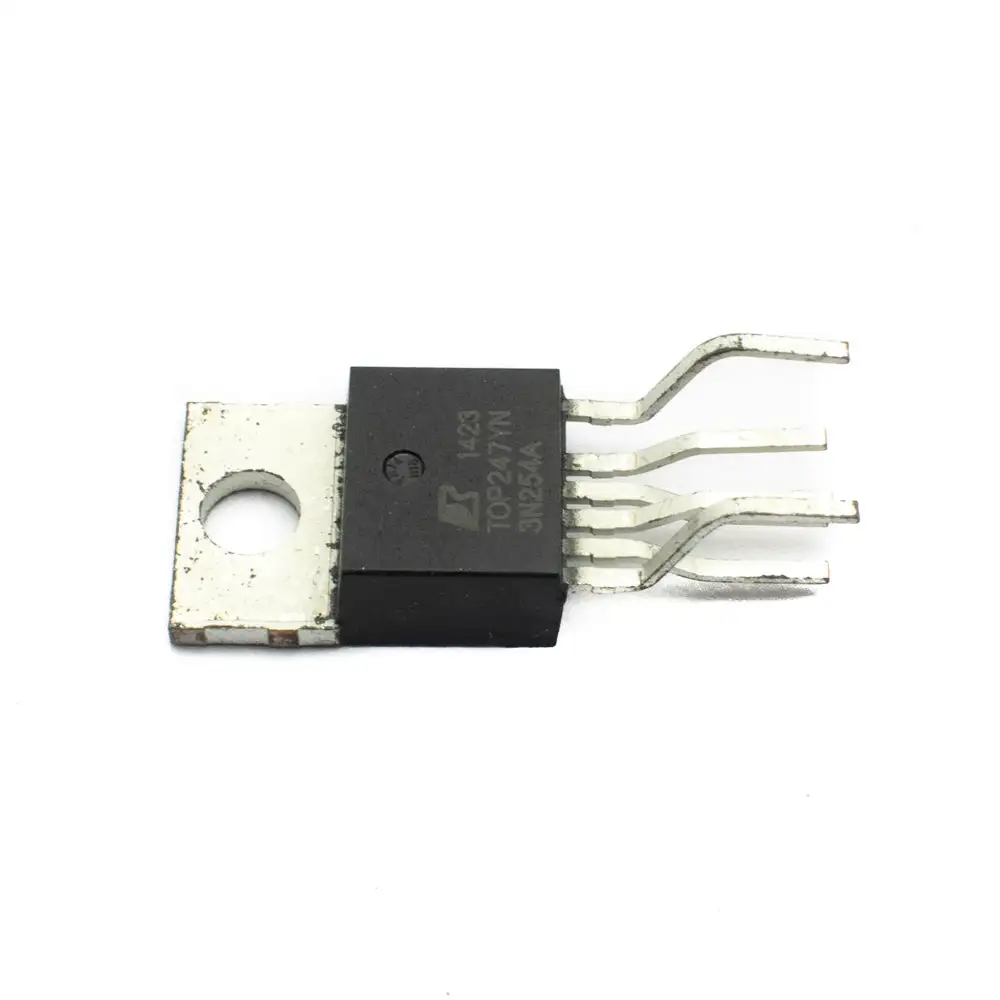

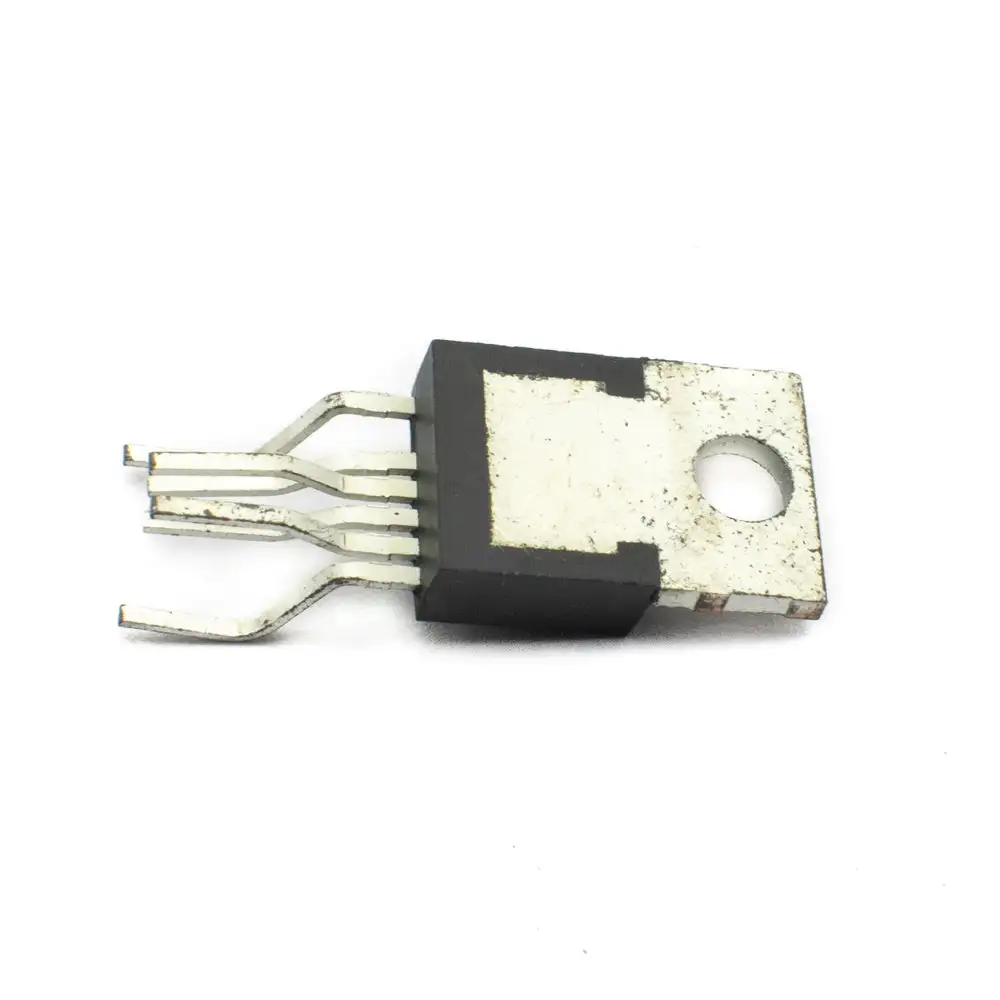

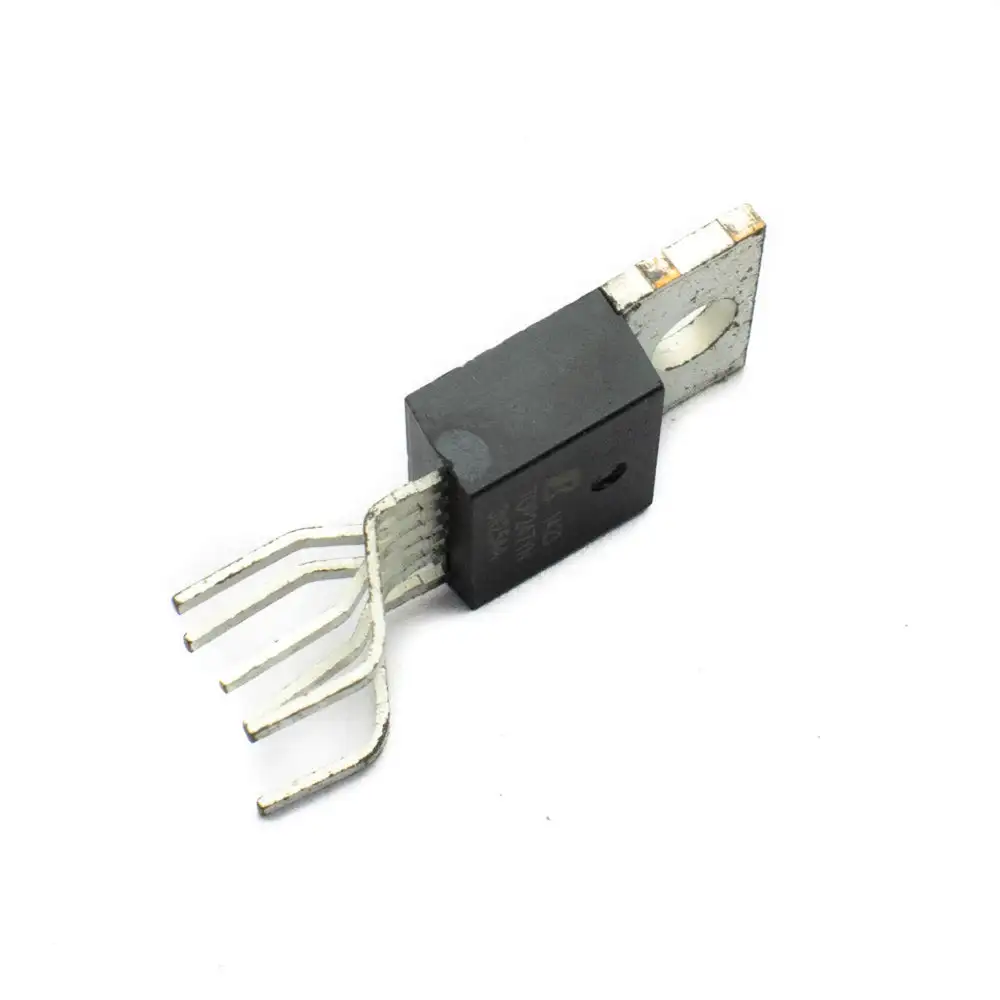

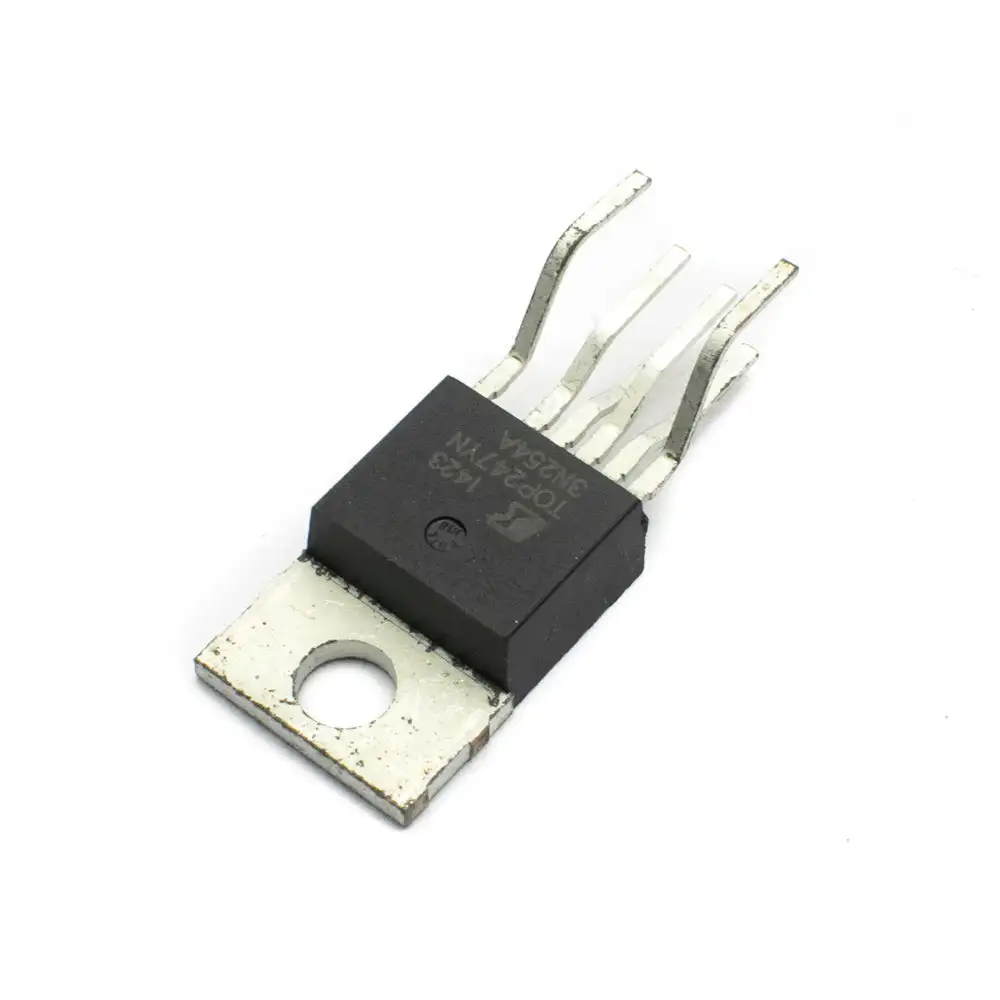

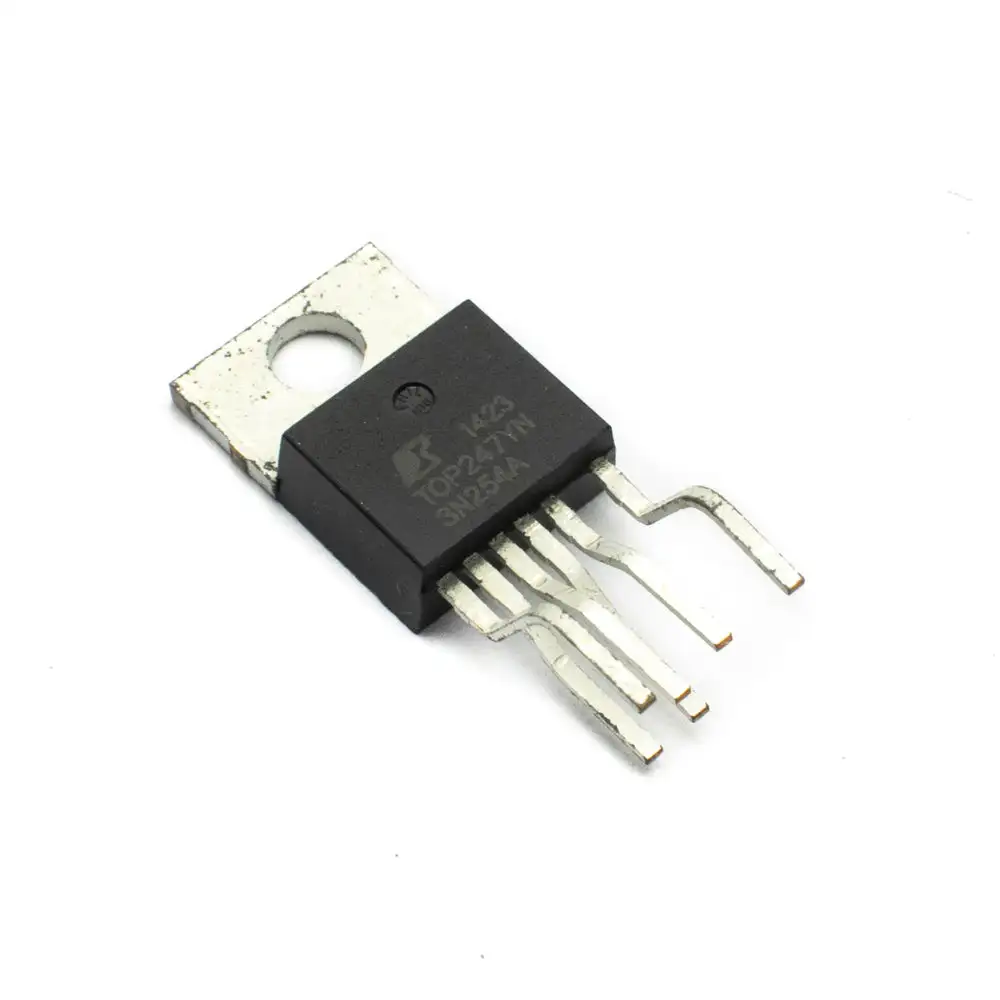

TOP247YN Power Integrations Off-line Switcher IC

TOP Switch-GX uses the same proven topology as TOPSwitch, cost-effectively integrating the high voltage power MOSFET, PWM control, fault protection and other control circuitry onto a single CMOS chip. Many new features have been included to lower system costs while also improving design flexibility, performance, and energy efficiency.It has the following transparent characteristics: Soft start, 132 kHz switching frequency (automatically lowered at low load), frequency jittering for lower EMI, wider DCMAX, hysteretic thermal shutdown, and bigger creepage packages are also available. Furthermore, all essential parameters (such as current limit, frequency, and PWM gain) have tighter temperature and absolute tolerances to simplify design and save system cost.

Pinout

Features

230 VAC ± 15%

Adapter

Open Frame

85W

165W

85-265 VAC

-Adapter

-Open Frame

55W

125W

FREQUENCY Pin Connected to SOURCE 124 - 140kHz

FREQUENCY Pin Connected to CONTROL 61.5 - 70.5kHz
