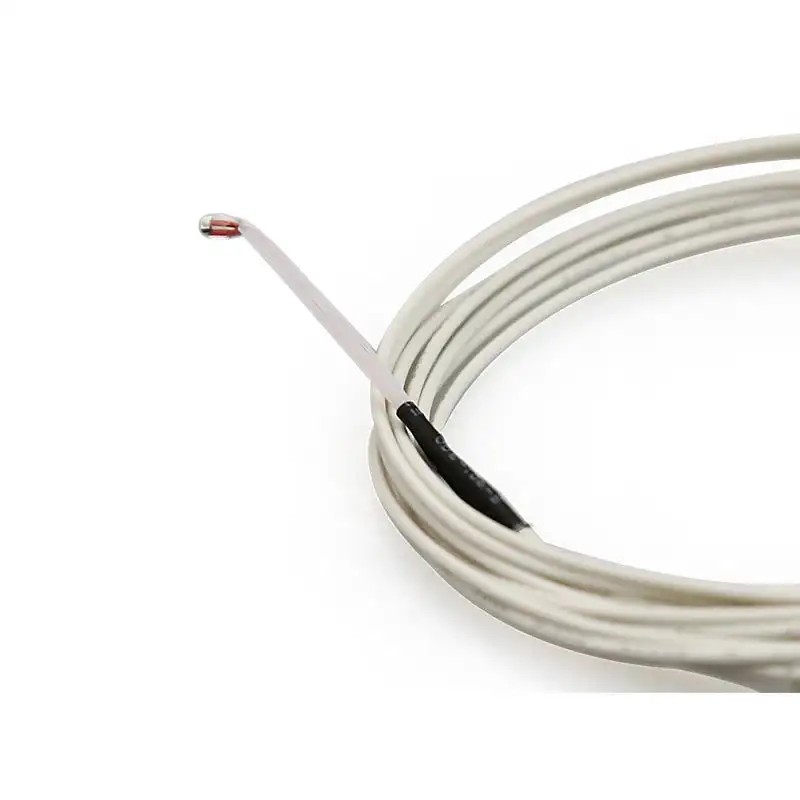

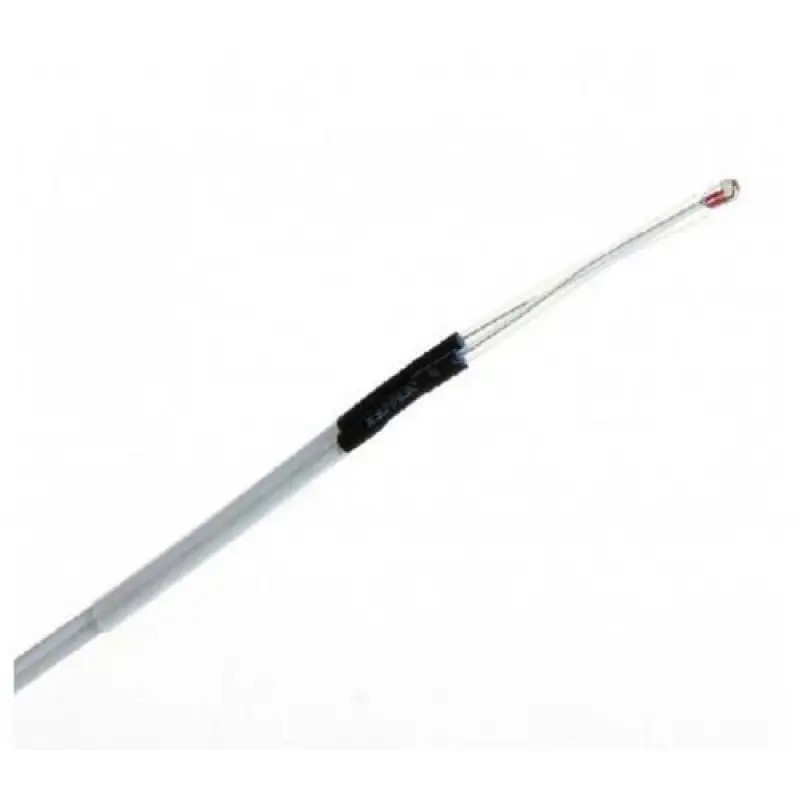

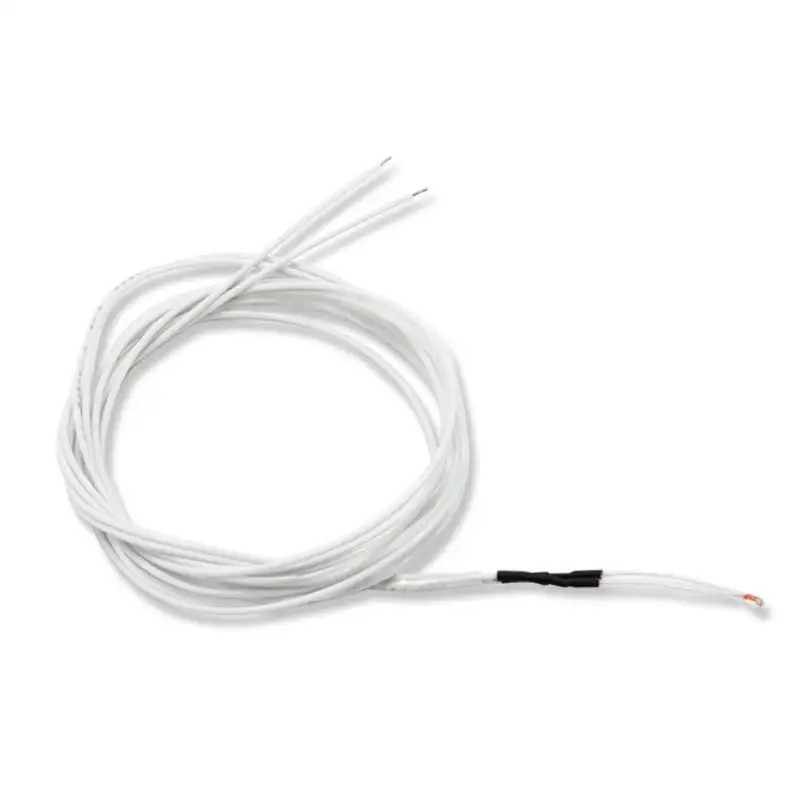

Thermistor 100k NTC with 1 Meter Cable Temperature Sensor

This isThermistor 100k NTC with 1 Meter Cable Temperature Sensor for 3D Printer Reprap. The thermistor is a thermally sensitive resistor known for exhibiting a large change in resistance with only a small change in temperature.

It is important to note that a thermistors change in resistance is non-linear. It follows a pre-defined curve which is provided by the thermistor manufacturer.

Positive thermal coefficient (PTC) will increase in resistance with an increase in temperature, negative ones (NTC) will decrease. But the formula in practice is not linear, so sometimes an accurate table of measurements is better than the linear formula.

Features :

1. 100k Ohm NTC Thermistor.
2. NTC Thin Film Thermistor Cable.
3. Nominal value: R25 (25 ) : (common) 1.5K, 2K, 5K, 10K, 20K, 30K, 47K, 50K, 100K, 200K, 500K, etc.
4. Resistance precision: 1%, 2%, 3%.
5. B value R25/50 (common) 3435k, 3600k, 3950k, 3990k, 4100k, 4200k, etc.
6. B value accuracy: 1%.
7. Recommend the use of parameters: R25 = 100 k B25/50 = 3950 k 1%)

Package Includes :

1 xThermistor 100k NTC with 1 Meter Cable Temperature Sensor

Specifications :-

Temperature Measuring Range (C)	40 to 270
Accuracy	1%
Length (mm)	3
Width (mm)	1.8 (Body Diameter)
Weight (gm)	5
Cable Length (Meter)	1
