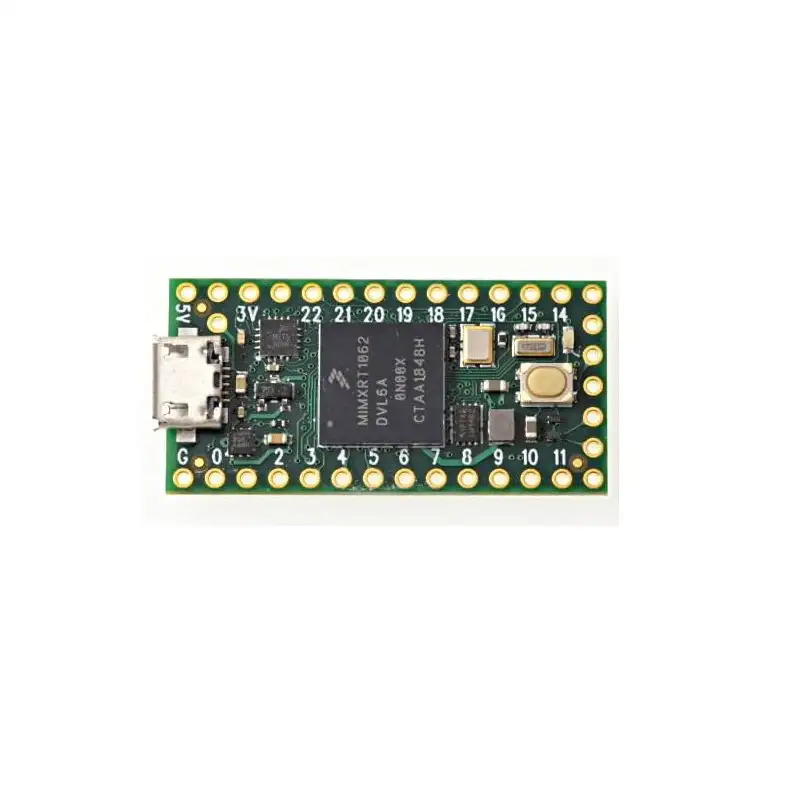

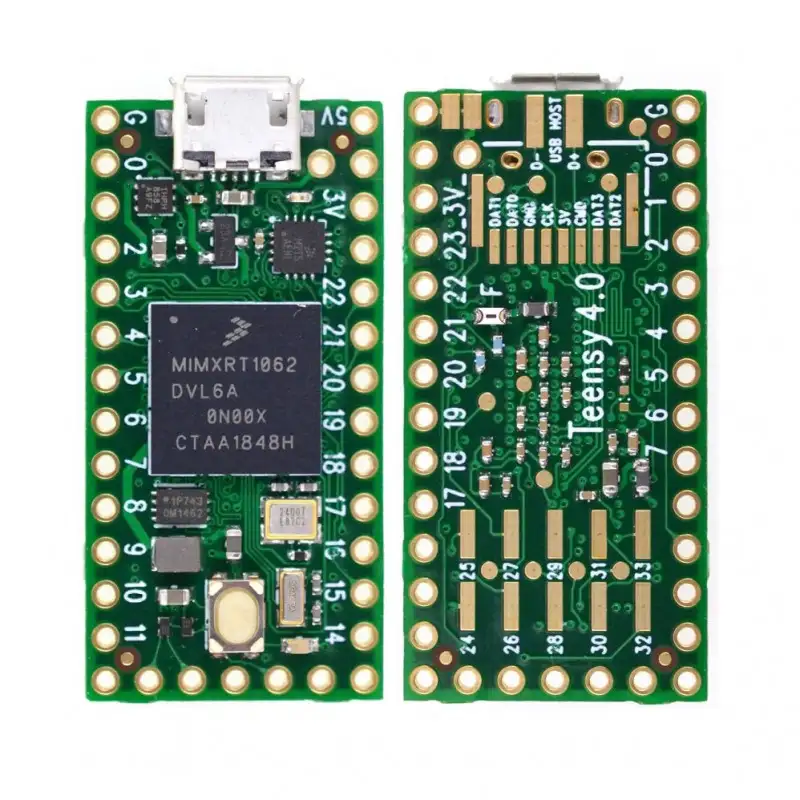

Teensy 4.0 Development Board

The Teensy 4.0 features an ARM Cortex-M7 processor at 600 MHz, with an NXP iMXRT1062 chip, the fastest microcontroller available today ten times faster than the Teensy 3.2! The NXP iMXRT1062 is a cross-over processor, which has the functionality of a microcontroller, at the speeds of a microcomputer. Its perfect for when you need tons of flash, RAM and, to crunch lots of data, or when you need two full-speed USB ports. It even has a graphics processor! All this for two sawbucks.

When running at 600 MHz, Teensy 4.0 consumes approximately 100 mA current.

Teensy 4.0 provides support for dynamic clock scaling. Unlike traditional microcontrollers, where changing the clock speed causes wrong baud rates and other issues, Teensy 4.0 hardware and Teensyduinos software support for Arduino timing functions are designed to allow dynamically speed changes. Serial baud rates, audio streaming sample rates, and Arduino functions like delay() and millis(), and Teensyduinos extensions like Interval Timer and elapsed Millis, continue to work properly while the CPU changes speed.

Teensy 4.0 also provides a power shut off feature. By connecting a pushbutton to the On/Off pin, the 3.3V power supply can be completely disabled by holding the button for 5 seconds and turned back on by a brief button press. If a coin cell is connected to VBAT, Teensy 4.0s RTC also continues to keep track of date & time while the power is off.

Teensy 4.0 also can also be overclocked, well beyond 600 MHz!

Processor

Teensy 4.0 features an ARM Cortex-M7 processor at 600 MHz, with an NXP iMXRT1062 chip, the fastest microcontroller available today.

Features:

• 3 CAN Bus (1 with CAN FD)
• 2 I2S Digital Audio
• 1 S/PDIF Digital Audio
• 1 SDIO (4 bit) native SD
• 3 SPI, all with 16 words FIFO
• 3 I2C, all with 4 byte FIFO
• 7 Serial, all with 4 byte FIFO
• 32 general-purpose DMA channels
• 31 PWM pins
• 40 digital pins, all interrupt capable
• 14 analog pins, 2 ADCs on chip
• Cryptographic Acceleration
• Random Number Generator
• RTC for date/time
• Programmable FlexIO
• Pixel Processing Pipeline
• Peripheral cross triggering
• Power On/Off management

Package Includes:

1 x Teensy 4.0 Development Board

Specification:
