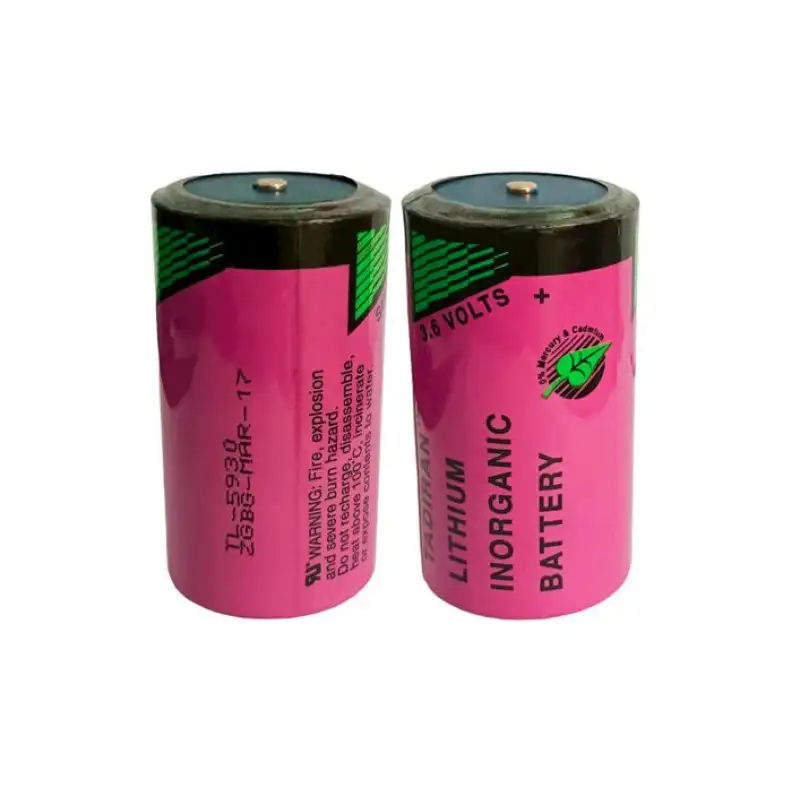

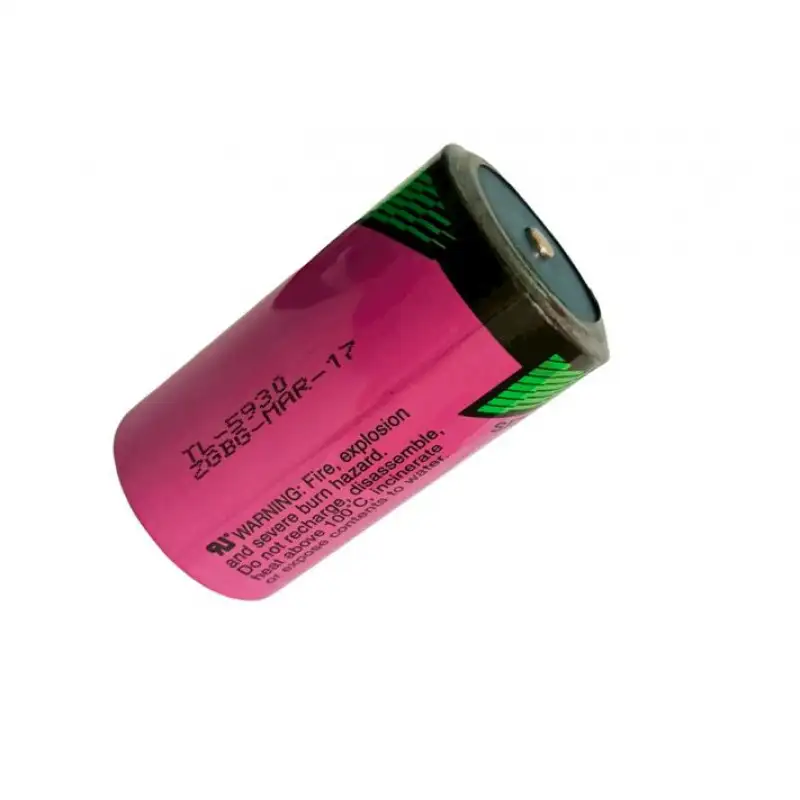

TADIRAN TL-5930 D Size 3.6V 19000mAh Lithium Inorganic Battery

TADIRAN TL-5930 3.6V 19000mAh Lithium Battery

Warning:-

1. This battery is not rechargeable. Do not try to recharge.
2. The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
3. Don't use different models of battery in series.
4. Soldering the tab should be finished in few seconds.
5. Do not use if the battery casing was mangled

Features:-

• High operating voltage, stable during most of the application lifetime
• Some of the highest nominal capacities on the market today
• Excellent reliability over extended operating life
• Operating Temperature Range: -60°C/+85°C (-76°F/+185°F)
• Low self-discharge rate (less than 1% after 1 year of storage at + 20°C)
• Excellent resistance to humid environments
• Low magnetic signature
• Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte
• Less than 1% capacity loss during storage at ambient temperature before use

Specifications:-

• Model No : TL-5930
• Chemistry : Lithium Thionyl Chloride (Li-SOCI2)
• Brand : TADIRAN
• Battery Capacity : 19000mAh
• Type : Lithium
• Size : D

• Voltage : 3.6V
• Maximum Recommended Continuous Current : 230 (mA)
• Maximum Pulse Current Capability : 500 (mA)
• Battery Shape : Cylinder
• Weight : 95gm
• Length : 60mm
• Diameter : 32mm

Package Includes:-

1 x TADIRAN TL-5930 3.6V 19000mAh Lithium Battery
