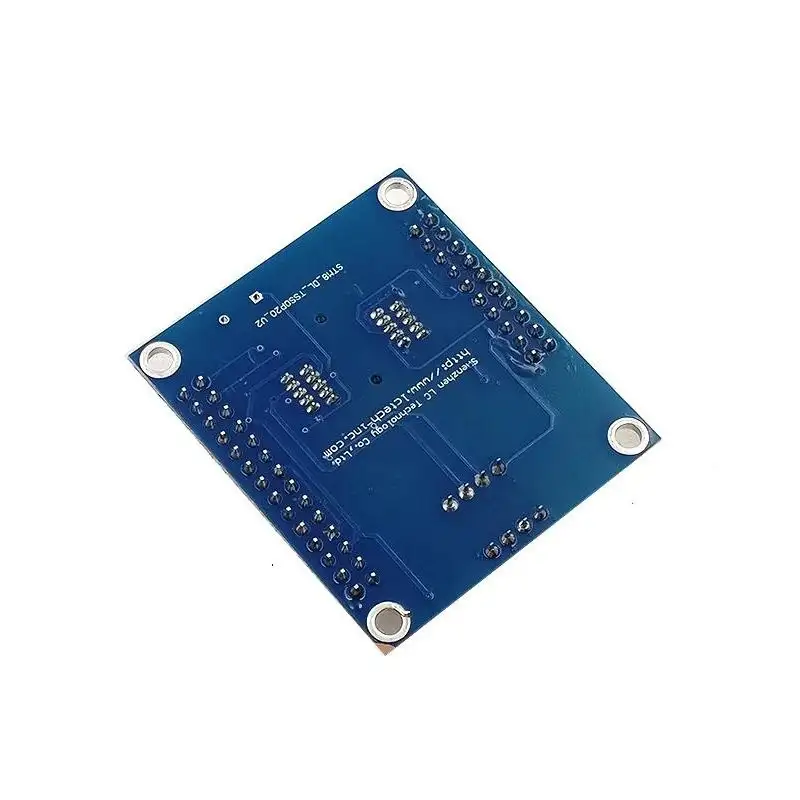

STM8S 8L TSSOP20 Burning Testing Holder Downloader Offline Programmer

STM8S/STM8L downloader Imported gold-plated chip carrier, stable and reliable performance. It can package most of the TSSOP20 pin spacing of 0.65 mm STM8L and STM8S series chips of the burning, testing, operation, convenient and practical.

Features:

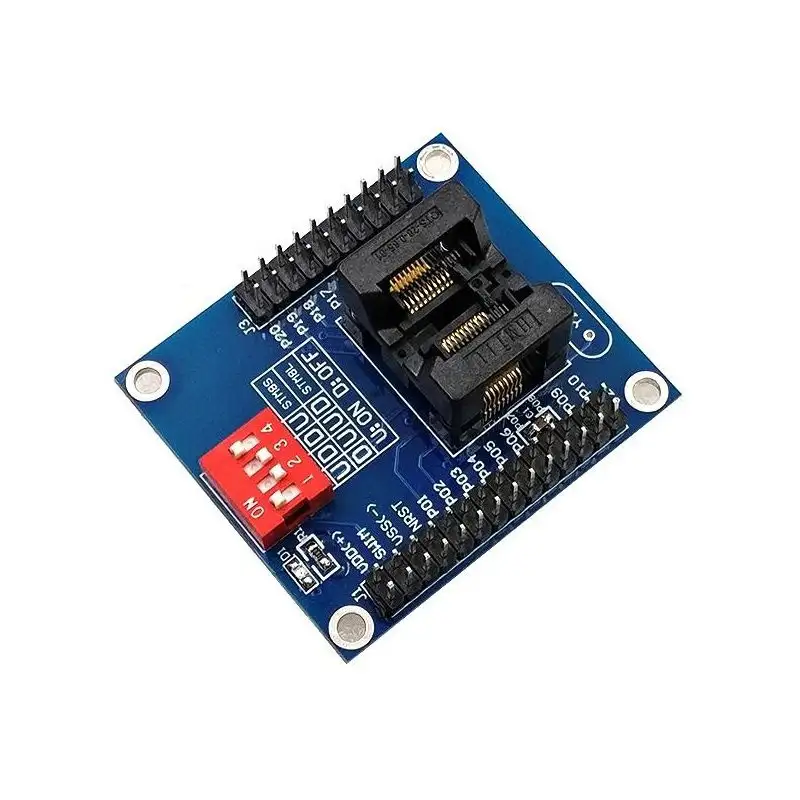

1. The onboard high quality imported gold-plated chip carrier
2. By SWIM interface, directly related to the type of chip test, burning crystals can be the free replacement by the user.
3. All I/O by 2.54 mm double row needle derivation, convenient for the user to build a circuit.
4. Through the selection of four dials the code switch STM8S or STM8L burning.

Package Includes:

1 x STM8S 8L TSSOP20 Burning Testing Holder

Specifications :-

Length (mm)	50
Width (mm)	44
Height (mm)	30
Weight (gm)	60
