- STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
Click Image to Preview

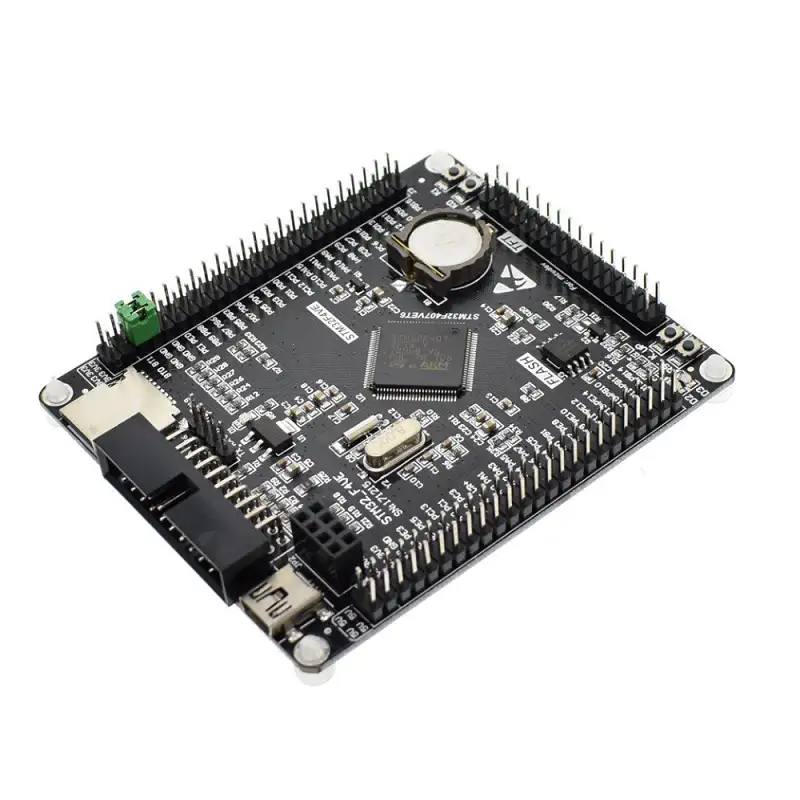

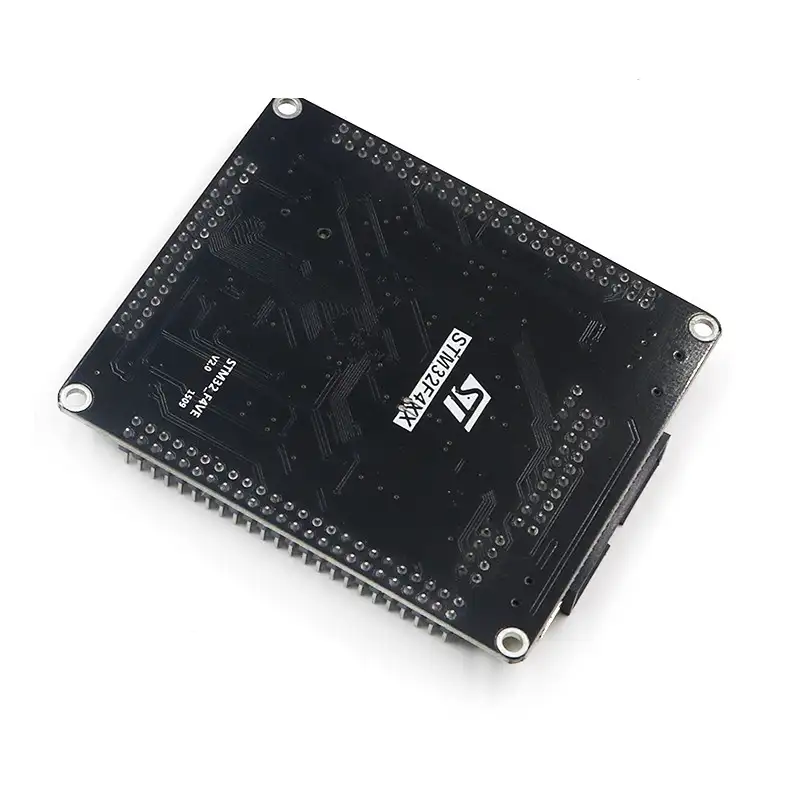

STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
Brand: Generic | SKU: 2720501
₹ 2,502.00
₹ 3,292.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
The STM32F405xx and STM32F407xx family is based on the high-performance Arm Cortex -M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
The STM32F405xx and STM32F407xx family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces.
Features:
- Core: Ar 32-bit Cortex-M4 CPU with FPU
- LCD parallel interface, 8080/6800 modes
- Low-power operation
- 312-bit, 2.4 MSPS A/D converters
- 212-bit D/A converters
- General-purpose DMA
- Up to 17 timers
- Up to 140 I/O ports with interrupt capability
Package Includes:
1 x STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
10 x Female-Female Jumper Cable
1 x USB Cable
Specification:
| Model |
STM32F407VET6 |
| Core |
ARM 32 Cortex M4 CPU |
| Debug Mode |
SWD |
| Number of I/O |
140 |
| Memory |
192+4 Kbytes SRAM
|
| D/A Converters |
2 x 12-bit |
| Timer |
17 |
| Length (mm) |
73 |
| Width (mm) |
85 |
| Height (mm) |
15 |
| Weight (gm) |
66 |
