STM32F401 Black Pill Development Board

The STM32F401 Black Pill Development Board is an enhanced version of the popular Blue Pill, which is based on the F103. This newer model has a more powerful Core-M4F-based ARM CPU. The DFU bootloader is supported by both the F401 and F411 processors. The Cortex®-M4 core includes a single-precision floating point unit (FPU) that supports all Arm single-precision data-processing instructions and data types. It also includes a complete set of DSP instructions and a memory protection unit (MPU) to improve application security. The STM32F401 includes high-speed embedded memories as well as a wide range of enhanced I/O and peripherals that are connected to two APB buses, two AHB buses, and a 32-bit multi-AHB bus matrix.The STM32F401 incorporates high-speed embedded memories (up to 256 Kbytes of Flash memory, up to 64kB of SRAM), and a wide range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

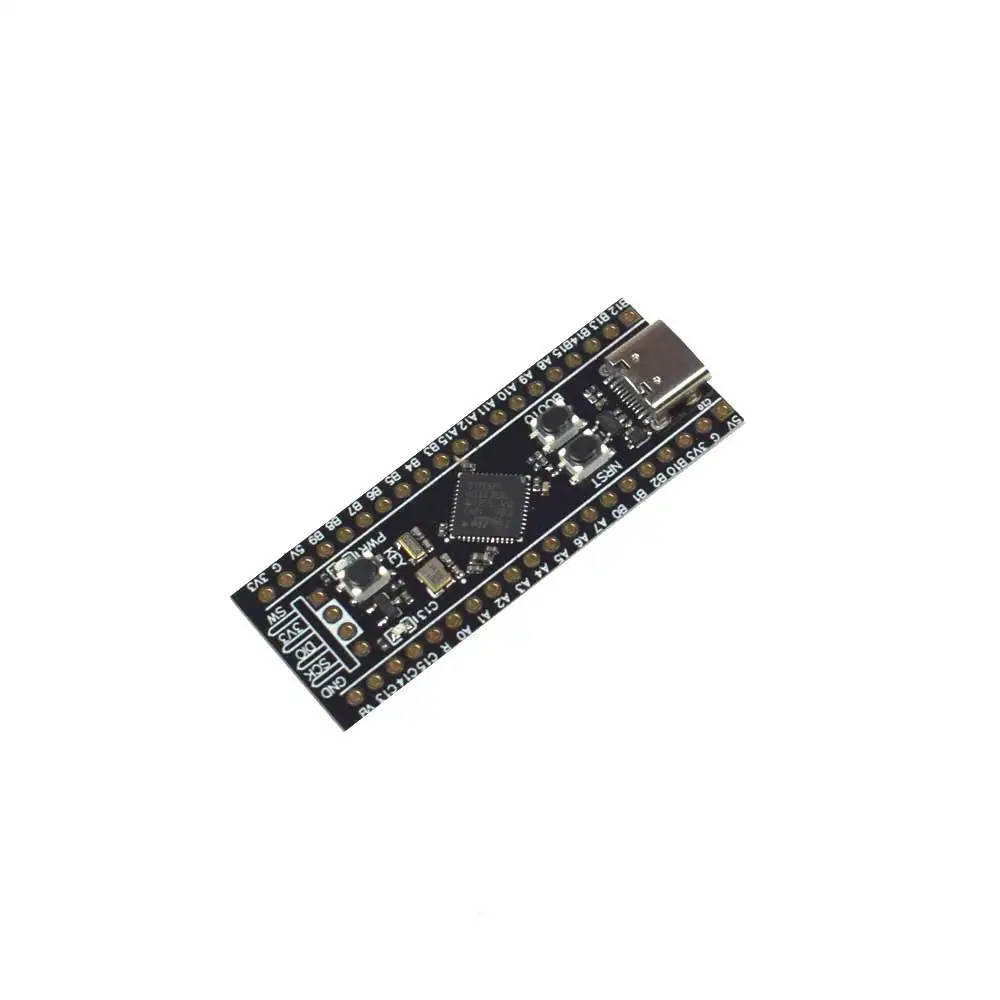

SIDE 1

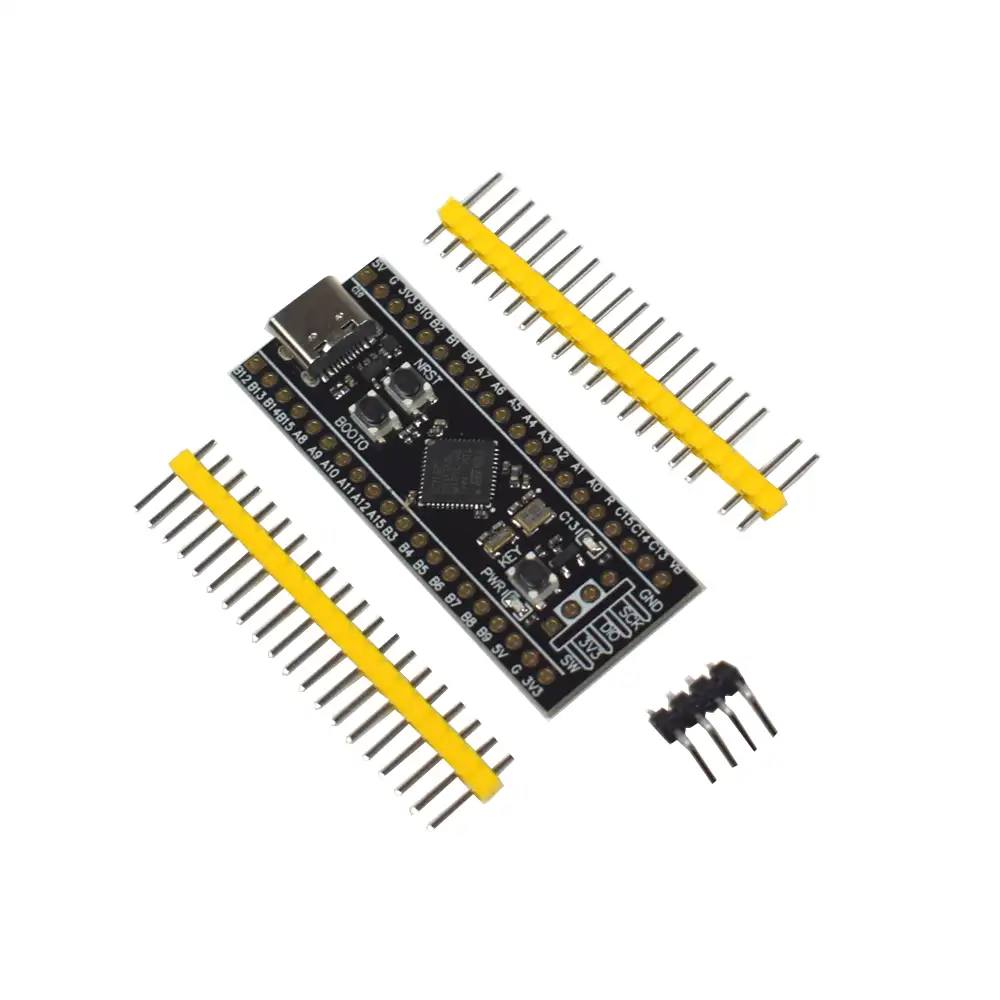

SIDE 2

Warning:There is no safeguard in place. Do not power this board using both USB and an external power supply.

Specifications
