SOIC TO DIP 20 PIN Adapter-2 Pieces Pack

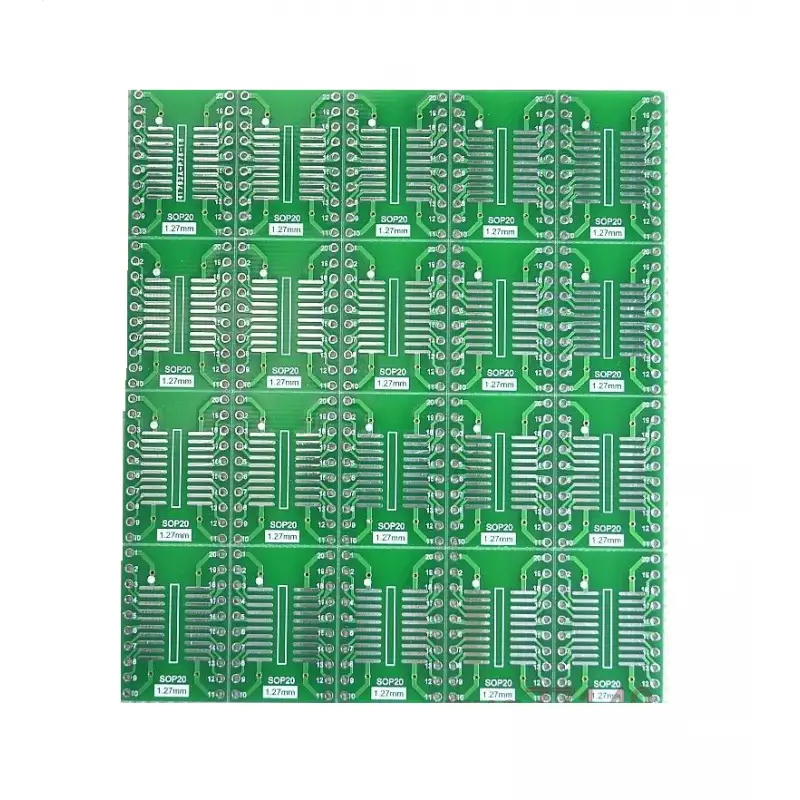

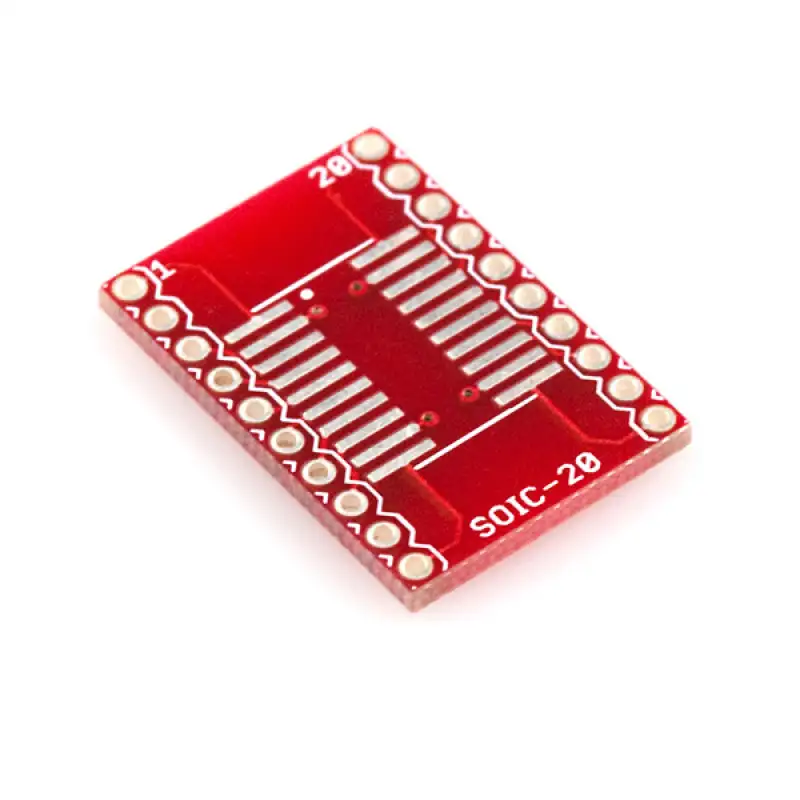

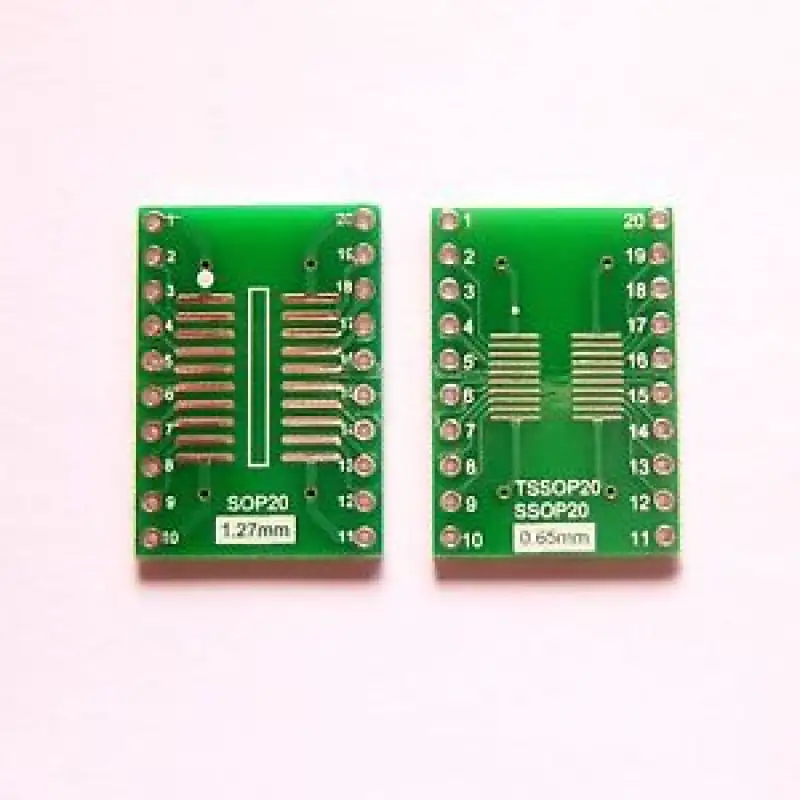

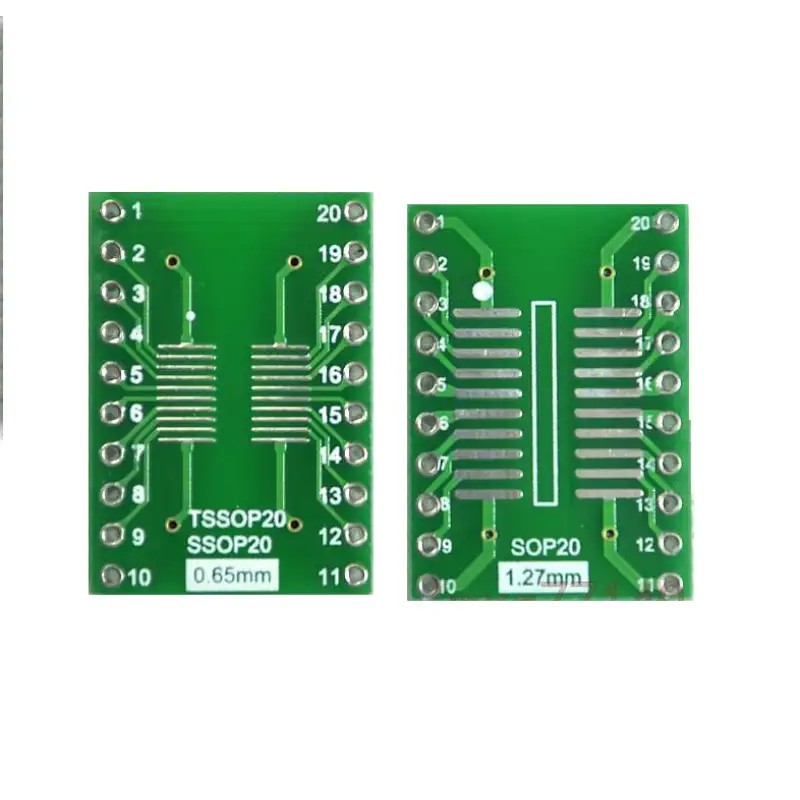

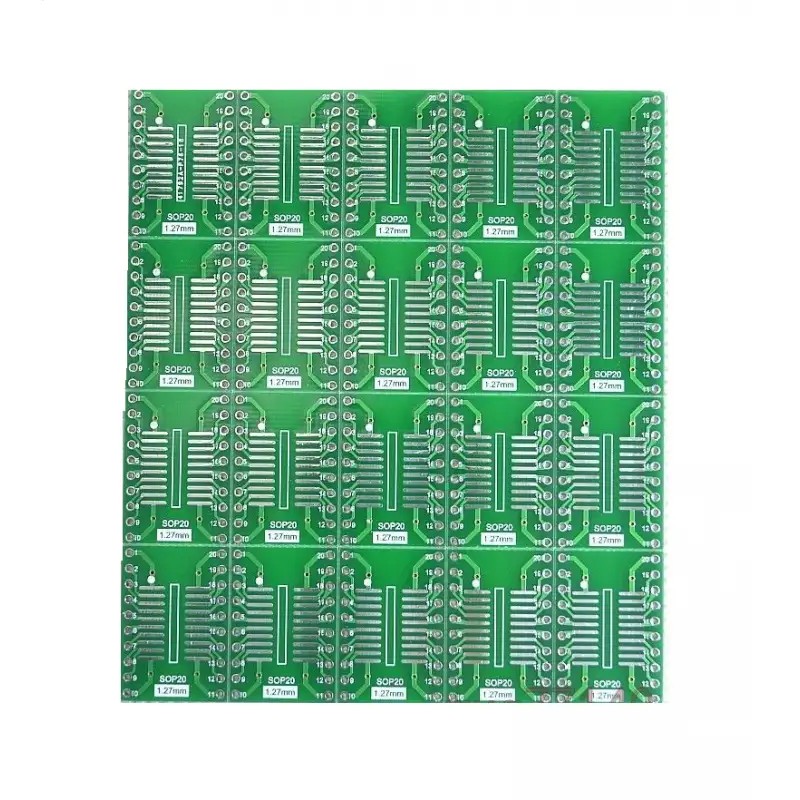

SOIC TO DIP 20 PIN Adapter is a Perfect for use with Arduino / Raspberry Pi or any microcontroller. This is a Double-Side PCB Circuit Board, Each PCB board has 20 pins. A side for pin pitch size 1.27mm, It can be used for most of the SO20, SOP20, SOIC20 to 2.54mm DIP. B side for pin pitch size 0.65mm, It can be used for most of the SSOP20, TSSOP20, MSOP20 to 2.54mm DIP.

8-Pin SOIC to DIP Adapter is a small PCB that lets you adapt SOIC packages into a DIP footprint. These are useful for modding and upgrading devices that use 8-pin DIP ICs, when the upgraded IC is only available in a SOIC footprint. You can also use it for prototyping, to make SOIC packages compatible with solderless breadboards.

The PCB board mounting 2.54mm pitch Pin Header, It can be plugged directly into 2.54mm pitch PCB board, breadboard, and 600mil width 20 pin DIP socket.

Features:

1. Tiny size
2. 8 pin
3. SOIC to adapter.

Package Includes:

1 x SOIC TO DIP 20 PIN Adapter-2pcs

Specifications :-

No. of Pins	20(each side)
Pitch(mm)	2.54
Length(mm)	10
Width(mm)	22
Weight(g)	20
