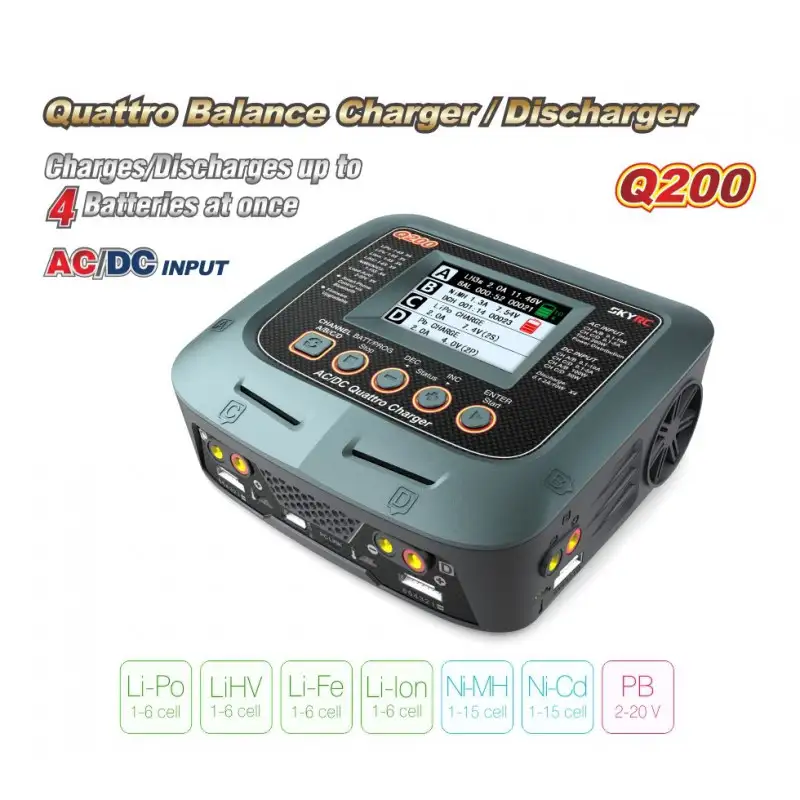

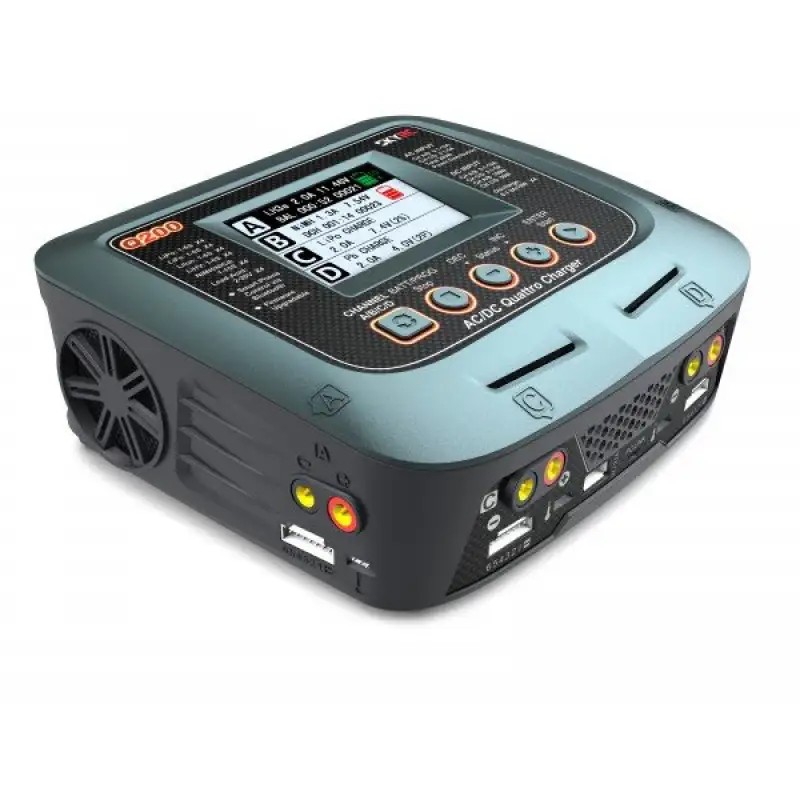

SkyRC Q200 QUATTRO AC/DC 2X100W 2X50W Lipo Battery Balance Charger/Discharger

SKYRC Q200 is a 4 channel charger with 4 independent circuits, which can charge four different kinds of batteries simultaneously. The charger adopts a 480 320 color LCD display, and paired channels support power distribution in AC mode. Moreover, users could either connect it to a PC or mobile device to further expand their user experience. The firmware upgrade is available via PC software interface.

This Charger has the perfect design for four outputs.It is compact, easy to transport to the flight field in case of need.Easy to use, the menus are very intuitive, and if you have used chargers from the B6AC family and similar, you will not have any problems.The mobile application is an another Plus of this Charger, you can put the batteries to charge and Control and View the status of your each Battery Packs comfortably from the sofa.

Main Features:

Power distribution:

Q200 supports power distribution in AC mode. For example, channel B is 79W, then channel D will be 21W, but total power will remain 100W. Channel A and C works the same way

LiHV mode available:

Q200 is capable of charging/discharging the new generation of Lithium battery whose maximum voltage is 4.35V

Voltage calibration:

During the manufacturing process, every Q200 production unit gets tested and calibrated after highest factory standards. Ambitious users who trust their own expensive equipment more or who prefer their personal fluke to serve as a reference have the possibility to adjust the Q200 factory calibration by a few counts.

Scan to go:

A very unique feature of Q200 is SCAN TO GO (automatically charging system). As the range of battery types and capacity becomes more and more, each battery requires its own dedicated charging process. It is easy to set up the charger incorrectly for a specific type of battery, resulting damage the battery or even cause an accident.

The revolutionary SCAN TO GO provides a solution to this problem by allowing the user to assign a QR Code which contains all the relevant data for the battery for charging or discharging. The user can create a unique QR Code by using SkyCharger apps. Print it and paste it into the battery.

Using your smartphone and launch SkyCharger app. Since all the essential information is stored in the QR Code. All you need to do is press the Scan button, and the charge or discharge process will start automatically.

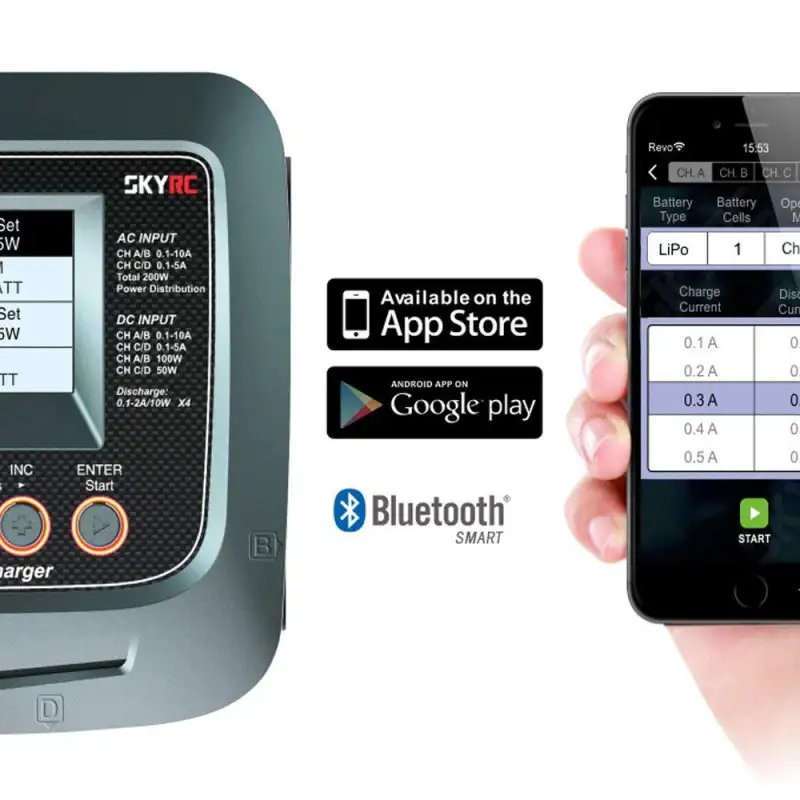

Control with SmartPhone :

The Bluetooth 4.0 connectivity allows the user to remote control and monitors the Q200 comfortably through an app on a portable device such as a smartphone, iPad, or iPhone. The iOS app can be downloaded from iTunes Store, the Android app from Google Play Store. Operation of the app is self-explanatory and the same on iOS and on Android. Explicit pairing is not required; after download and installation just activate Bluetooth on your mobile device and launch the app. Q200 and your device will establish Bluetooth connection automatically.

Features:

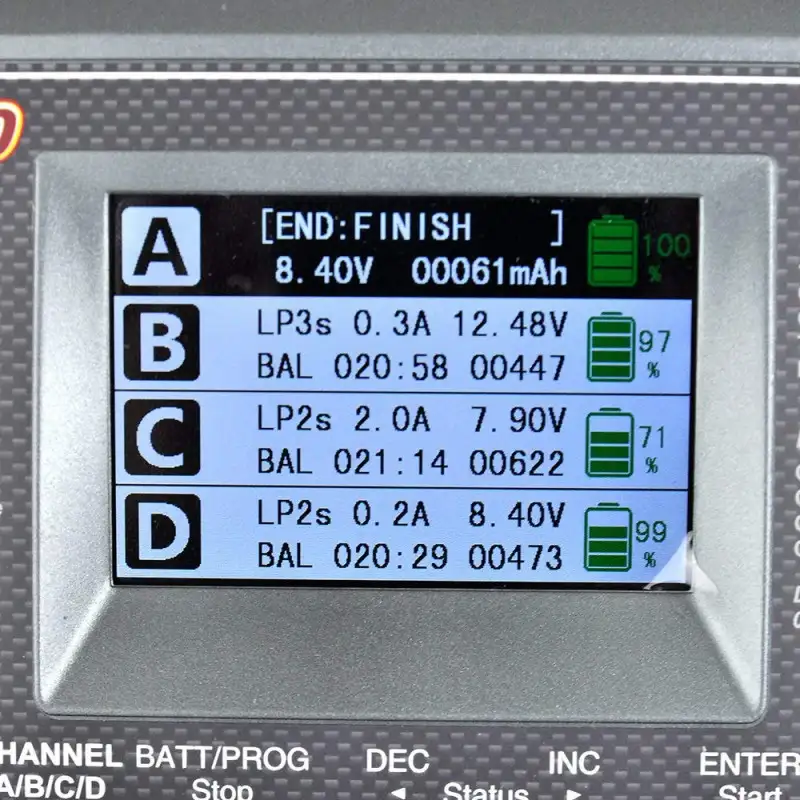

1. Large screen LCD
2. Terminal voltage control
3. Re-peak mode for NiMH/NiCd battery
4. Battery meter
5. Battery internal resistance meter
6. PC communications: USB port for PC control & firmware upgrade
7. Smartphone App control & monitor via Wi-Fi module

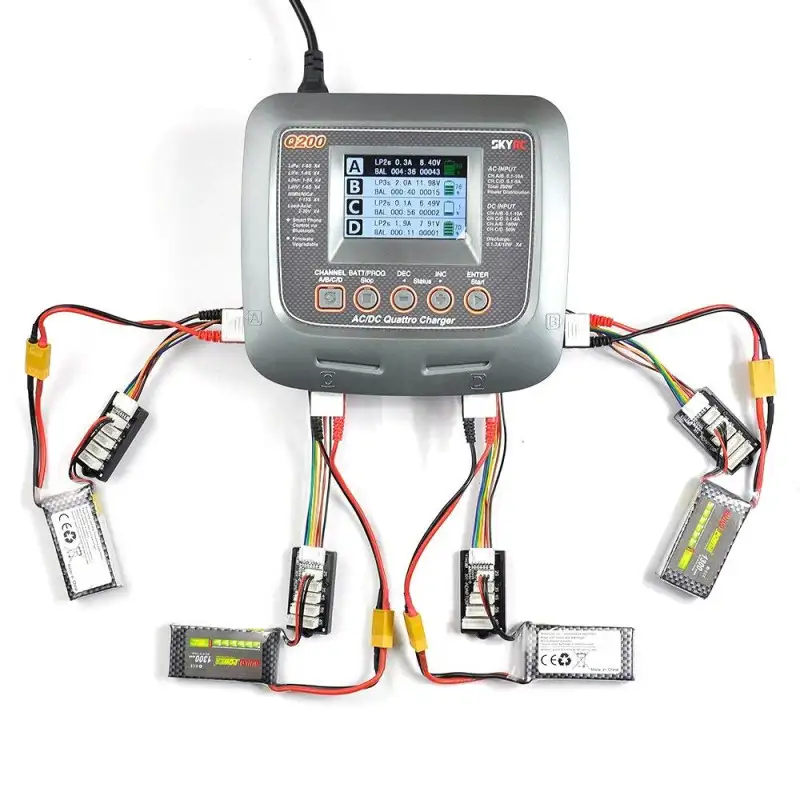

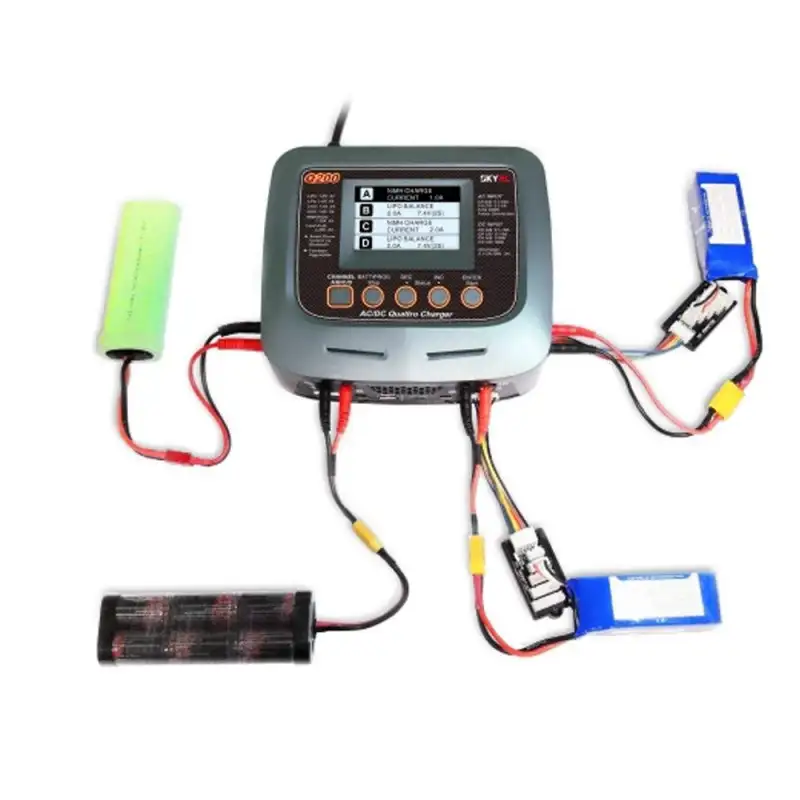

8. Four channels charge four different kinds of batteries simultaneously
9. Support charging power distribution intellectively when operating with AC input

Package Includes:

1 x SkyRC Q200 QUATTRO AC/DC 2X100W 2X50W Lipo Battery Balance Charger/Discharger
4 x XH adapter - 4pcs.
2 x Charging Cable - 2pcs.
4 x Banana connectors with XT60 connector charging cable - 4pcs.

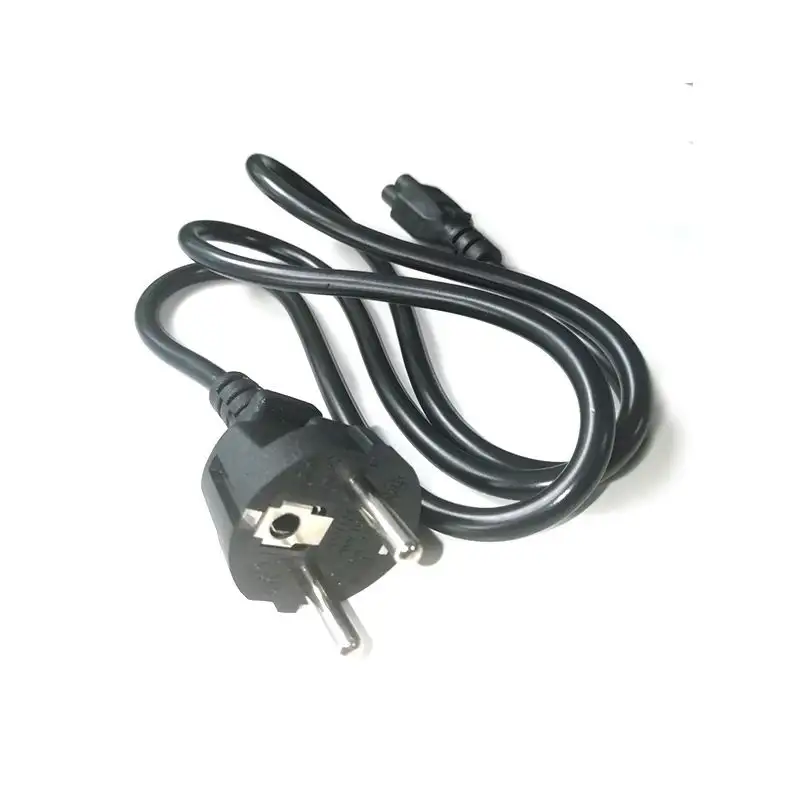

1 x Power Cord

Specifications:

Input Voltage (V AC)	100 ~ 240
DC Input Voltage Range (V)	11 ~ 18
Output Power(Watt)	AC Input: CH A+CH C=100W CH B+CH D=100W; CH A/CH B: 50-100W CH C/CH D: 0-50W DC Input: CH A/CH B: 100W CH C/CH D: 50W
Charge Current Range (A)	0.1 ~ 10
Maximum Discharge Power (W)	10
Drain Current for Balancing Li-Po's (mA/Cell)	200
Li-ion/Po cell count	1 ~ 6
NiCd/NiMH cell count	1 ~ 15 Cells
Pb battery voltage	2 ~ 20
Dimensions (mm) LxWxH	182 x 197 x 71
Weight (gm)	1335
