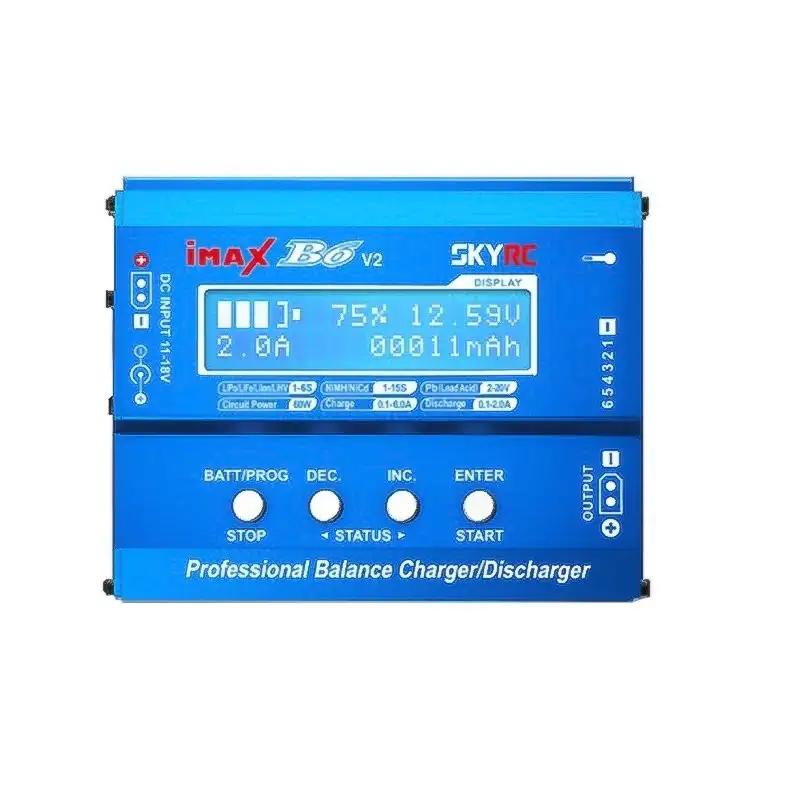

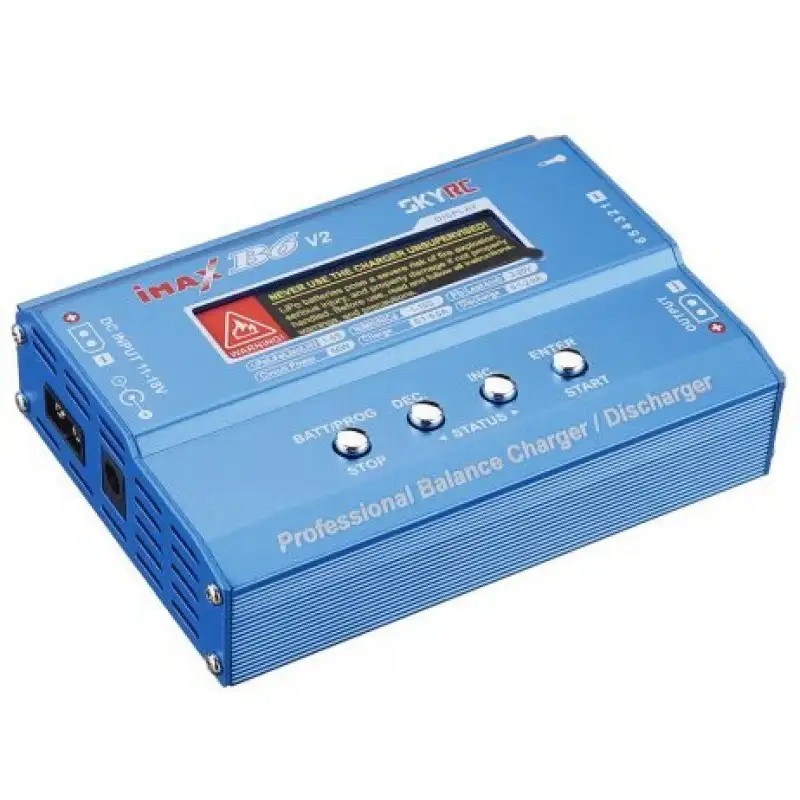

SkyRC IMAX B6 V2 60W 6A Charger/Discharger 1-6 Cells (Original)

The SkyRC IMAX B6 V2 50W 6A Original Charger is a very advanced charger, able to charge, balance and discharges LiIon, LiPoly, LiFe (A123), NiCd and NiMH batteries. It is microprocessor controlled just like all the best chargers and will balance the individual cells in you Li-XX batteries.

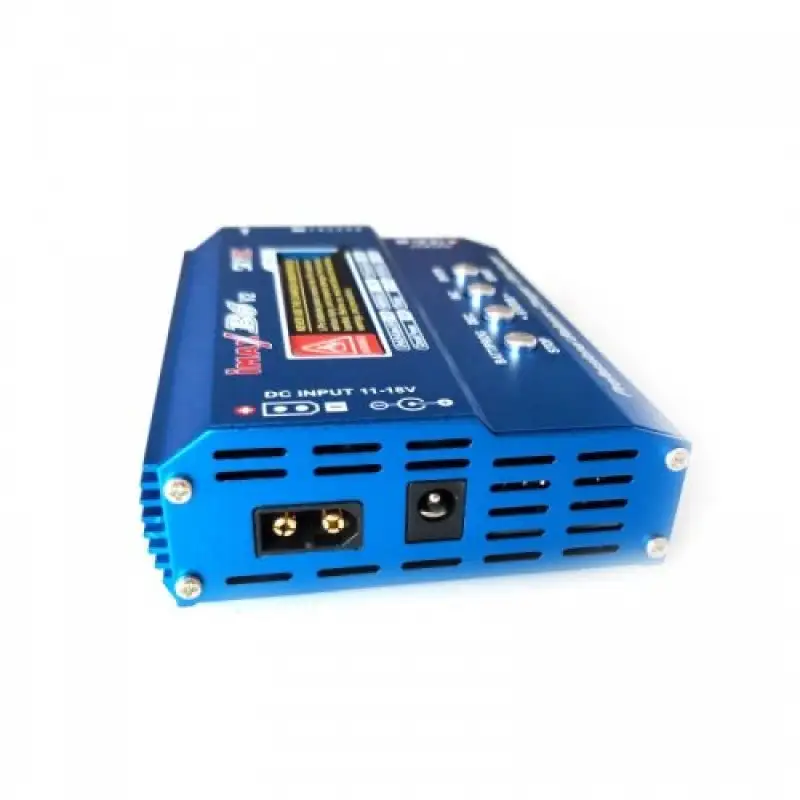

It will charge from 0.1 to 6.0A and is capable of charging packs up to 6S packs. Its feature input voltage protection so as not to flatten your car battery at the field and will also storage charge you pack for when you are not using them. You can power it with any power supply delivering from 11~18V so it is very flexible.

Note: Power supply is not included. Also, JST-XH Charging plug is not included, you have to purchase it separately.

Features:

1. Microprocessor controlled
2. Lithium Battery Balancer
3. Battery Discharge
4. Maximum Safety
5. A123 (Life)
6. Temperature Sensor*1
7. Delta-peak sensitivity
8. Individual cell balancing
9. LiIon,LiPoly, and LiFe capable
10. NiCd and NiMH capable
11. Large range of charge currents
12. Storage charge function
13. Time limit function
14. Input voltage monitoring (Protects car batteries at the field)
15. Data storage (Store up to 5 packs in its memory)
16. Battery break in and cycling.

*1 This function is available by connecting an optional temperature sensor probe, which is not included in the Package.

Special Features:

This iMax B6 is a rapid charger with a high-performance microprocessor and specialized operating

Software Optimized operating Software:

iMax B6 features an AUTO function that controls the charge rate during charging and discharging. For Lithium batteries, this can prevent overcharging which may lead to an explosion due to the users setting the charge rate improperly. It will disconnect the circuit automatically and initiate an alarm if there is any malfunction. All the operating modes of this charger are controlled through two way communication, between the charger and the battery to achieve maximum safety. All the settings can be configured by the user.

Internal independent lithium Battery Balancer:

iMax B6 employs an individual-cell-voltage balancer. It is not necessary to connect an external balancer for balance charging.

Balancing individual cells battery Discharging:

During the process of discharging, the eXtreme 605 can monitor and balance each cell of the battery individually. An error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.

Adaptable to various types of Lithium Battery:

iMax B6 is adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries.

Fast and Storage mode of Lithium Battery:

There are various methods of charging Lithium batteries. Fast charge reduces the charging time whereas store charge can control the final voltage of your battery. This method is best for long term storage and protects the useful life of the battery.

Maximum Safety:

Delta-peak sensitivity: The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the batteries voltage exceeds the threshold, the process will be terminated automatically.

Automatic Charging Current Limit:

You can set the upper limit of the charge current when charging your NiCd or NiMH batteries. This is useful for NiMH batteries of low impedance and capacity in the AUTO charging mode.

Temperature Threshold:

The batteries internal chemical reaction can cause the temperature of the battery to rise during charging. If the temperature limit is reached (set by the user), the charging process will be terminated. This function is available by connecting an optional temperature probe, which is not included in with the charger.

Processing Time Limit:

The user can set the maximum charging time. If the charging time exceeds the limit, the process will be terminated automatically when you set the maximum time for the charging mode.

Data Store/Load:

It can store data from ten different batteries. The user can set the charging / discharging parameters for a particular battery type and call up these settings to charge a battery without additional programming needed.

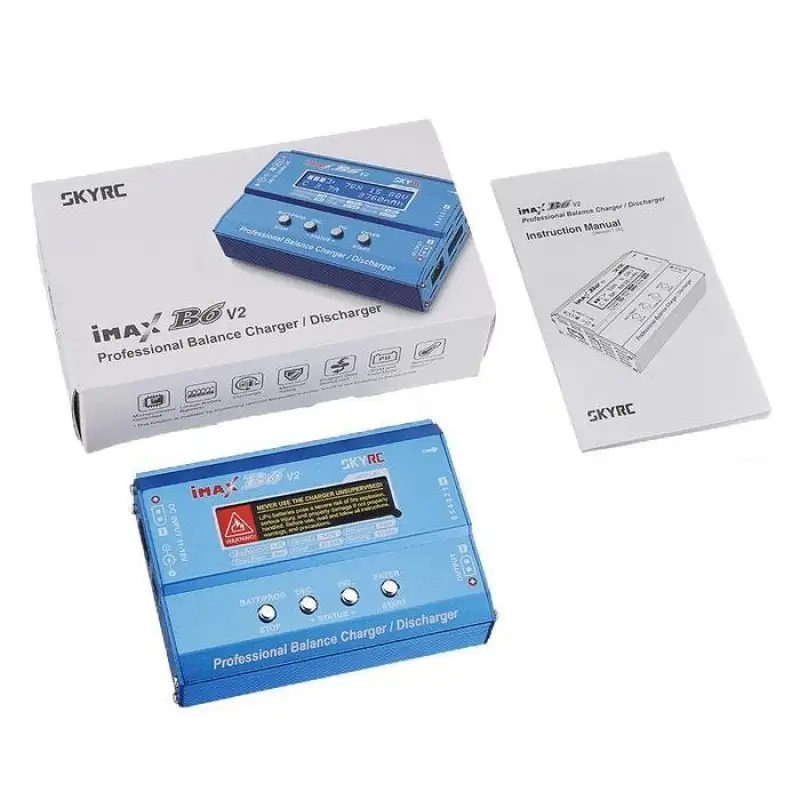

Package Includes:

1 x SkyRC IMAX B6 V2 Charger.

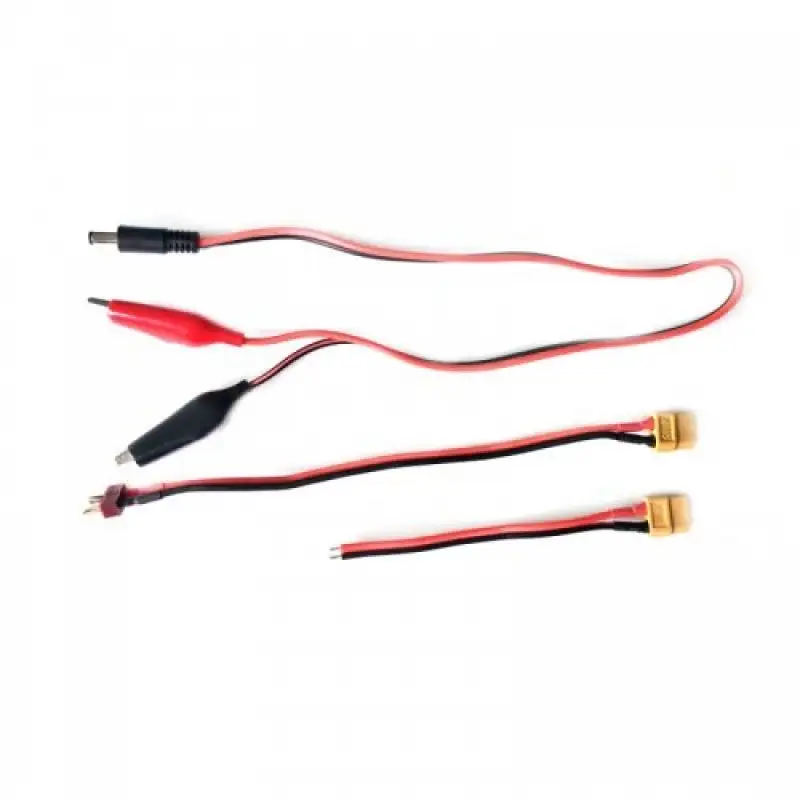

1 x DC input cable
1 x Dean Charging Cable
1 x Bare Charging Cable
1 x Instruction Manual.

Specifications:

DC Input Voltage Range (V)	11 ~ 18
Output Power(Watt)	60
Charge Current Range (A)	0.1 to 6
Maximum Discharge Power (W)	5
Discharge Current Range (A)	0.1 ~ 2.0
Pb battery voltage	2 ~ 20
Dimensions (mm) LxWxH	115x84x31mm
Weight (gm)	277
