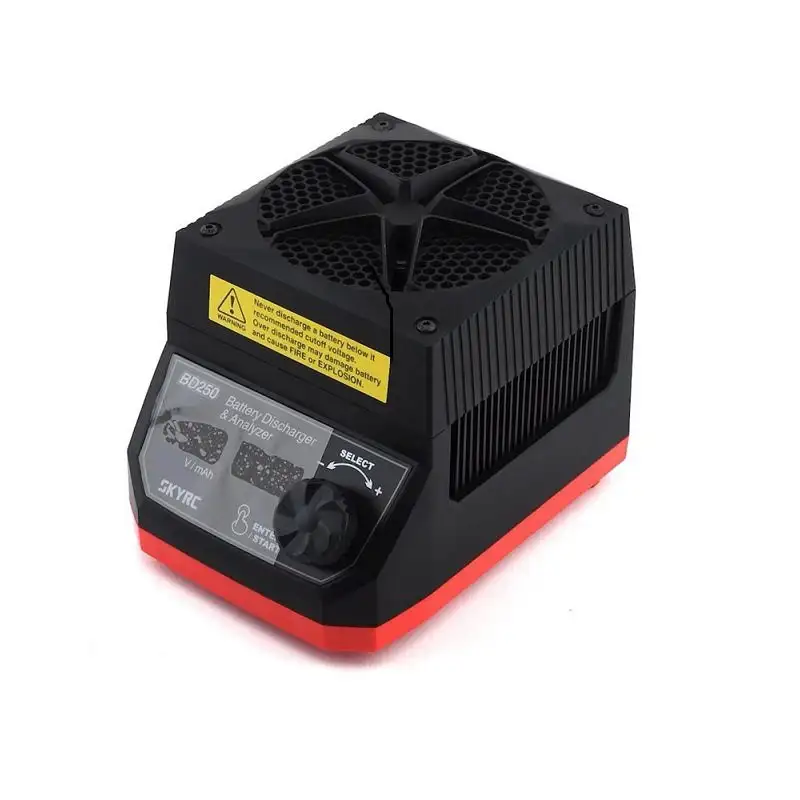

SkyRC BD250 Battery Discharger and Analyzer

Powerful, Robust, Simple

The SkyRC BD250 is a powerful discharging device that allows the user to discharge a battery at up to 35 amps or 250 watts and also measures and compares the performance of batteries. BD250 allows for the precise measurement of battery capacity and takes the guesswork out of choosing the best battery for your application.

The BD250 is much more than a simple battery discharger or a battery load tester. It will test virtually any type or size of the battery, any chemistry or number of cells, up to 35 volts.

It is small with a high-performance cooling system and uses MOS fets from the well-known brand IXYS, to make sure it can discharge at 250 watts continuously.

Big Breakthrough Fan System

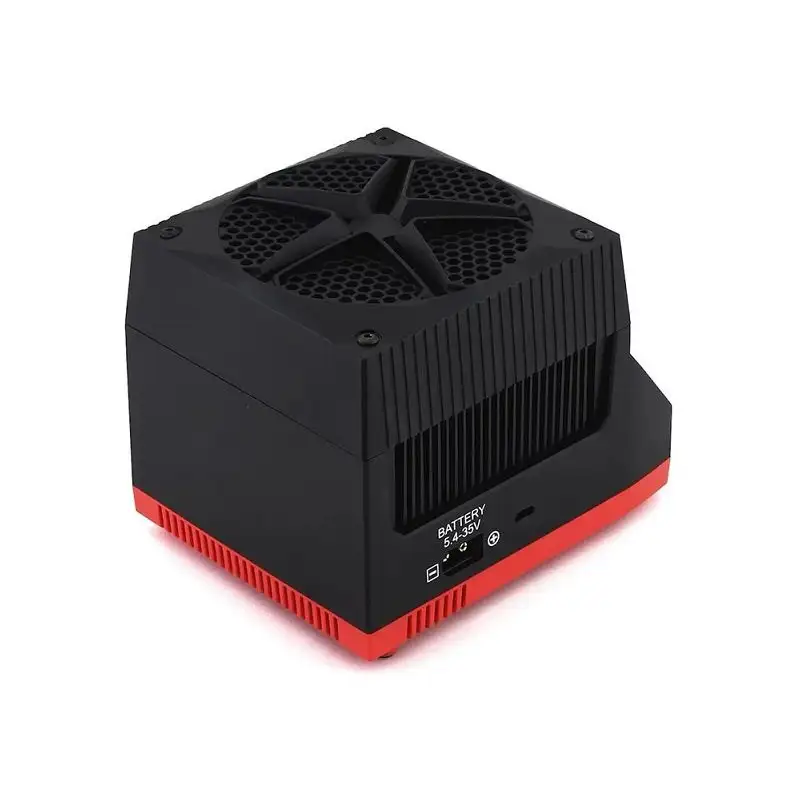

A single, larger fan pushes air downward through an extruded aluminium heat sink. As air passes vertically through the heat sink, it absorbs heat and carries it out. This makes the BD250 discharge rate at 250 watts continuous possible.

Simple and Intuitive Operation

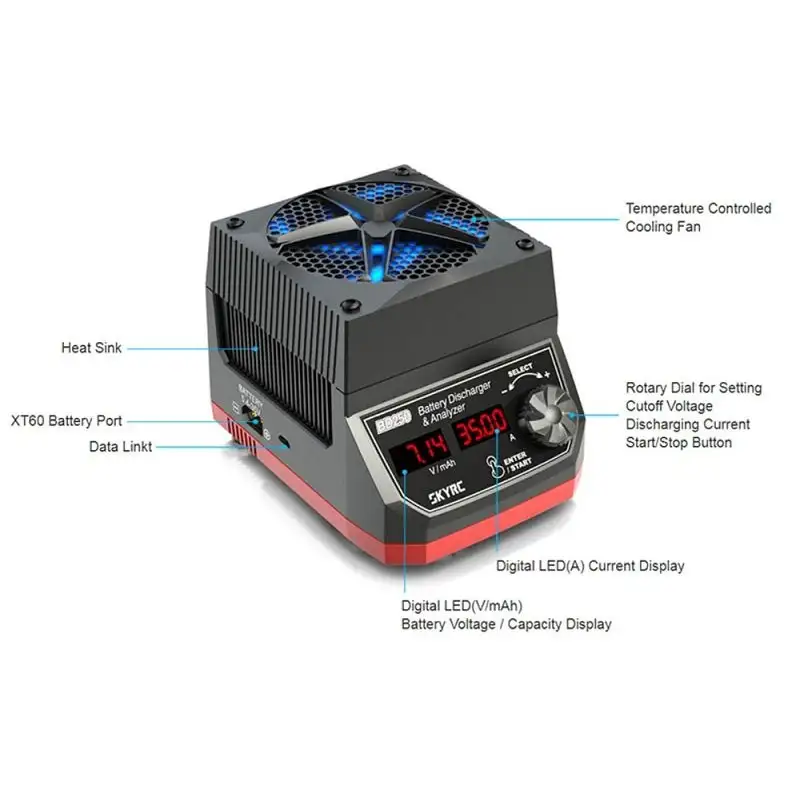

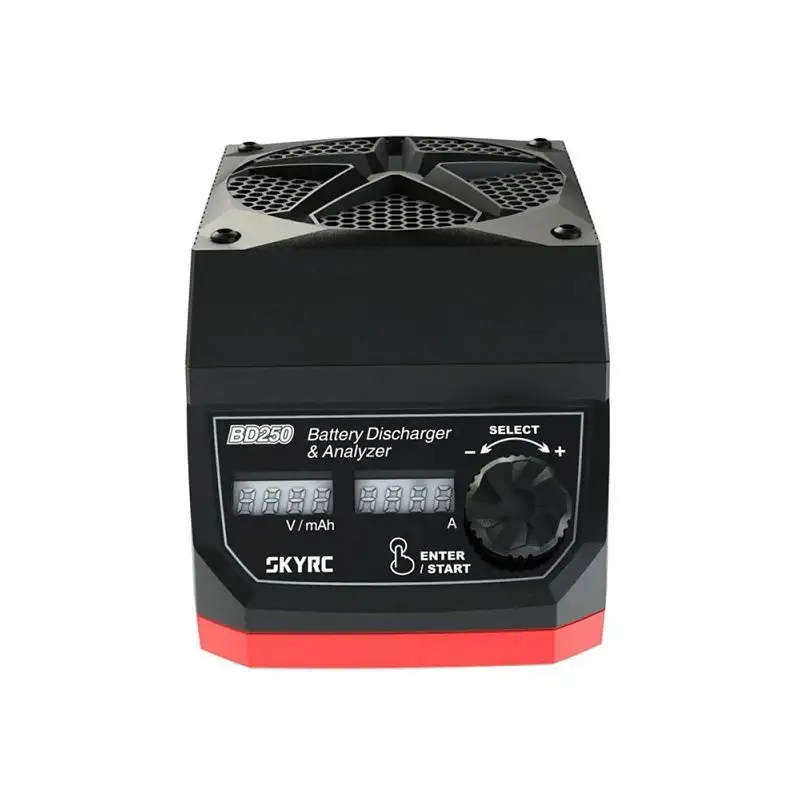

The Rotary Dial simplifies operation. The Digital LED Display provides clear, accurate information.

It can test virtually any type, size, and chemistry battery.

The BD250 is a voltage-oriented discharger, virtually any type of battery can be operated. Accepted voltage ranges from 5.40V to 35.00V. Examples:

• 2S-8S LiPo, LiFe, LiHV
• 6Cell-23Cell NiMH, NiCd
• 6-32V Pb (Lead Acid)

Easy-to-Use PC Software for Data Analysis

PC software supplied with the BD250 is easy to use and intuitive. Please see SKYRCs official website for the software download. There are two discharge modes: 1. Constant Power; 2. Constant Current. The software can automatically sense the battery cell count and recommends a minimum safe discharge voltage. Discharge tests may be viewed in Amp Hours, Watt Hours, or Minutes. Results can be graphed as Voltage vs. Amp-hours, Watt-hours, Minutes.

Features:

1. It displays real-time battery voltage, discharged capacity, and discharge current.
2. It can test battery capacity that helps select batteries with desired capacity.
3. It saves time when the user wishes to store their large-capacity batteries.
4. It helps activate the best performance of your batteries during racing competitions.

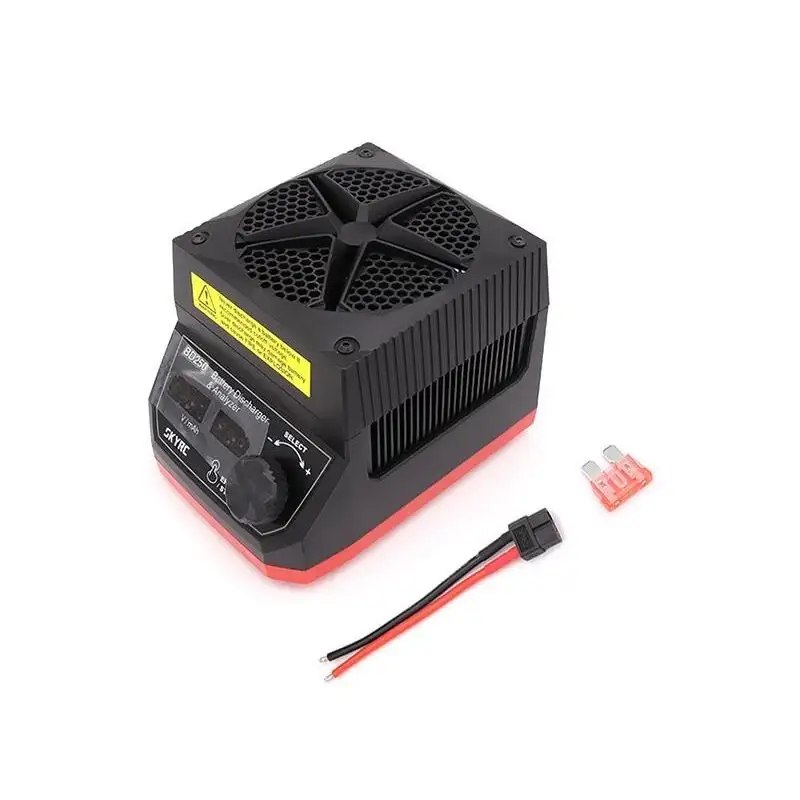

Package Includes:

1 x BD250 Discharger and Analyzer

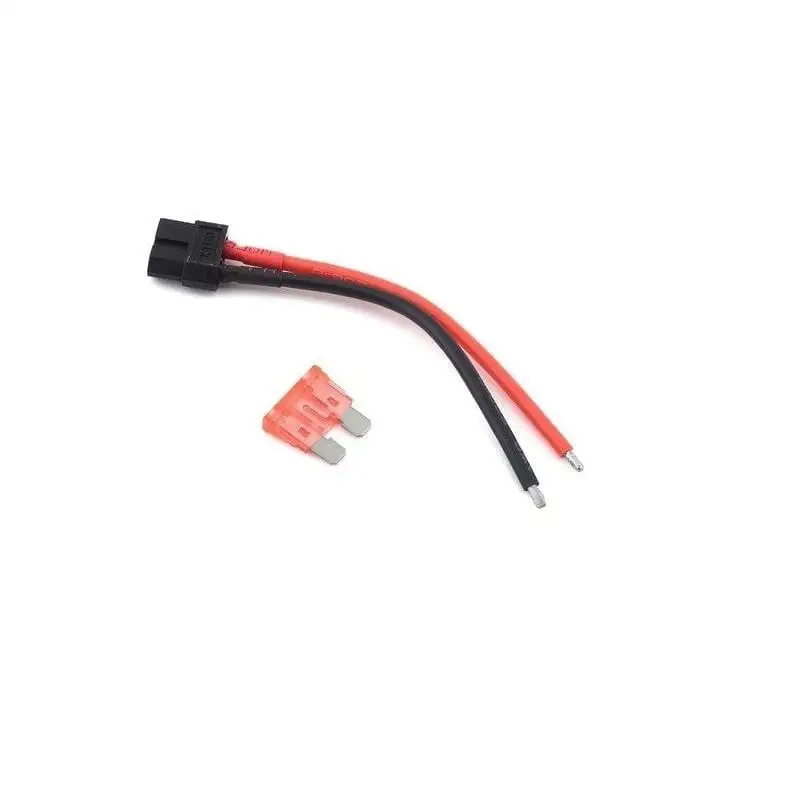

1 x XT60 Discharge Cable

1 x Replacement Fuse

Specifications:

Discharge Voltage Range (V)	5.40 35.00
Low Voltage Alert:	<5.2V
High Voltage Alert:	>35V
Maximum Discharge Power (W)	250
Dischage Current Range (A)	0.01 35.00
Current Consumption in Sleep Mode:	<100uA
Current Display Accuracy:	0.01-10.00A 60mA 10.00-35.00A 3%
Voltage Display Accuracy:	5.4-10V <80mV 10-20V <120mV 20-35V <160mV
Capacity Display Accuracy:	3%
Dimensions (mm) LxWxH	136.6 x 104.8 x 107
Weight (gm)	879
