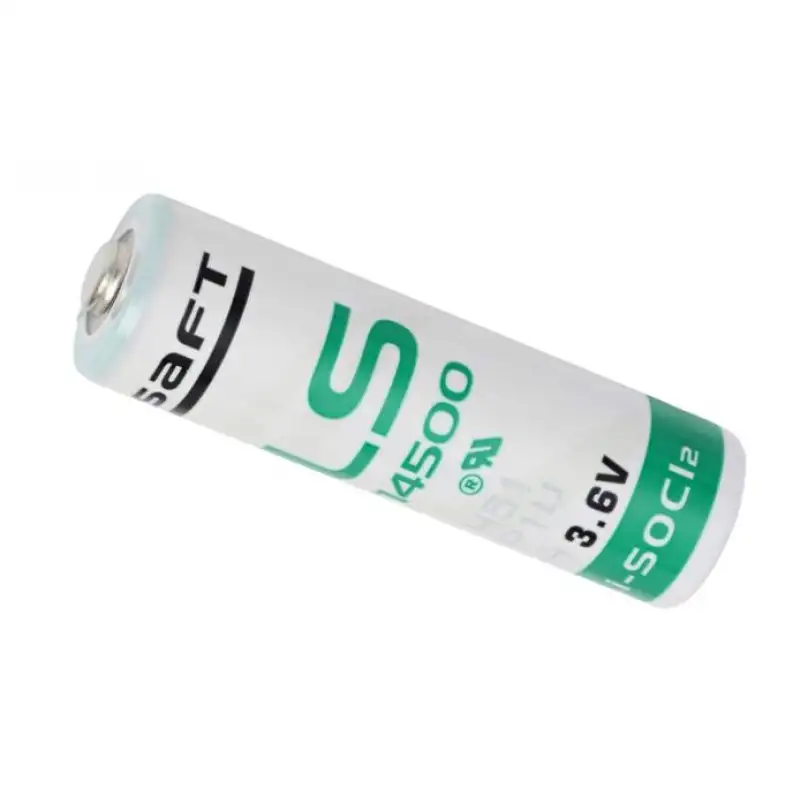

SAFT LS-14500 3.6V 2600mAH AA Li-SOCL2 Battery

3.6 V Primary lithium-thionyl chloride (Li-SOCl2) High energy density AA-size bobbin cell

Benefits:

• Enhanced capacity
• High voltage response, stable during most of the lifetime of the application
• Wide operating temperature range (- 60 °C/+ 85°C)
• Easy integration into compact system
• Superior resistance to atmospheric corrosion

Features:

• Stainless steel container and end caps (low magnetic signature)
• Hermetic glass-to-metal sealing
• Non-flammable electrolyte
• Low self-discharge rate (less than 1 % after 1 year of storage at + 20°C)
• Compliant with IEC 60079 -11 intrinsic safety standard
• Underwriters Laboratories (UL) Component Recognition (File Number MH 12609)
• Non-restricted for transport

Specifications:

• Brand : Saft
• Battery Type : Li-SOCI2
• Model Name: LS-14500
• Voltage : 3.6V
• Size : AA
• Capacity : 2600mAh
• Weight : 20gm
• Diameter : 14mm
• Length : 50mm

Applications:

• Utility metering
• Automatic meter reading
• Alarms and security devices
• Tollgate systems
• Memory back-up
• Tracking systems
• Automotive electronics
• Professional electronics

Package Includes:

1 x SAFT LS-14500 3.6V 2600mAH AA Li-SOCL2 Battery
