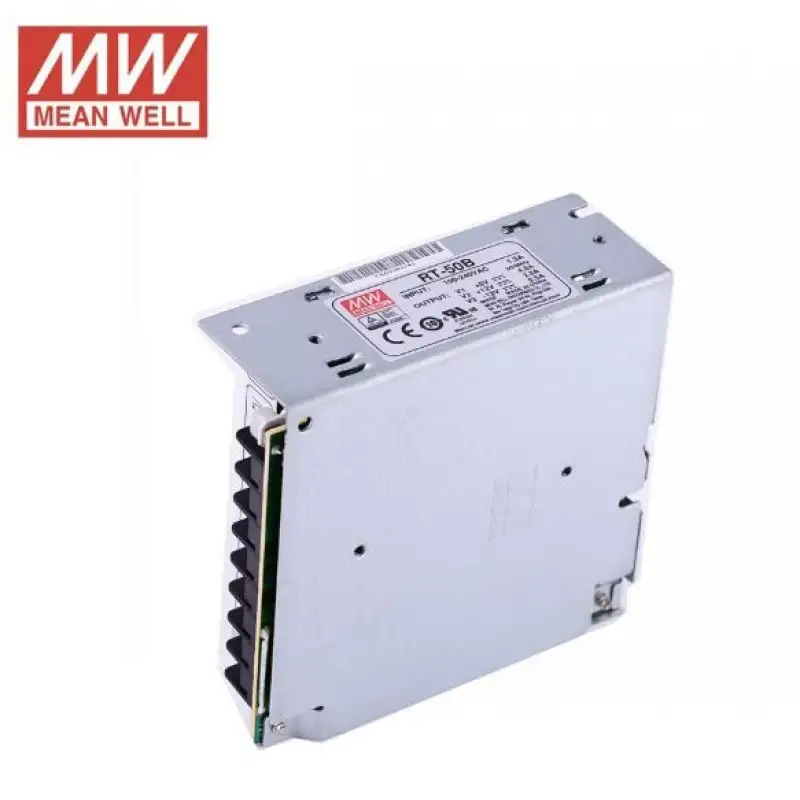

RT-50B Mean Well SMPS (5V 4A), (12V 2A) and (-12V 0.5A) - 50W Triple Output Metal Power Supply

Key Specifications:-

• Output Voltage-Channel 1         5 VDC
• Output Voltage-Channel 2         12 VDC
• Output Voltage-Channel 3         -12 VDC

• Output Current-Channel 1         4A
• Output Current-Channel 2         2A
• Output Current-Channel 3         0.5A

• Number of Outputs                   3 Output
• Output Power                           50 W
• Type                                        Enclosed Type Triple Output
• Features Standard

• Series RT (Reliable)

• Mechanical Form Enclosed

• Warranty 3 Years Warranty

• IP Level Non-Waterproof

• Input Voltage 88 VAC to 264 VAC, 125 VDC to 373 VDC


Features:-

• Universal AC input / Full range
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• LED indicator for power on
• 100% full load burn-in test
• All using 105°C long life electrolytic capacitors
• Withstand 300VAC surge input for 5 second
• High operating temperature up to 70°C
• Withstand 5G vibration test
• High efficiency, long life and high reliability
• 3 years warranty

Specifications:-

Manufacturer: MEAN WELL

Output Voltage-Channel 1:          5 VDC

Output Voltage-Channel 2: 12 VDC

Output Voltage-Channel 3: -12 VDC

Number of Outputs: 3 Output

Output Power: 50 W

Open Frame/Enclosed: Enclosed

Input Voltage: 88 VAC to 264 VAC, 125 VDC to 373 VDC

Input Current 0.8A/230VAC, 1.3A/115VAC

Output Current-Channel 1: 4 A

Output Current-Channel 2: 2 A

Output Current-Channel 3: 0.5 A

Operating Temperature: -25 TO +70 DEG CEL.

Voltage Adjustable Range: 4.75 ~ 5.5V

Frequency: 47 TO 63Hz

Protection: Short circuit / Overload / Over voltage

Industry: Commercial

Mounting Style: Chassis

Length: 99 mm

Width: 97 mm

Height: 36 mm

Safety Standards: UL62368-1, TUV EN62368-1 approved

Series: RT-50

Model: RT-50B

Brand: MEAN WELL

EMC Emission: Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 02

Unit Weight: 410 g
