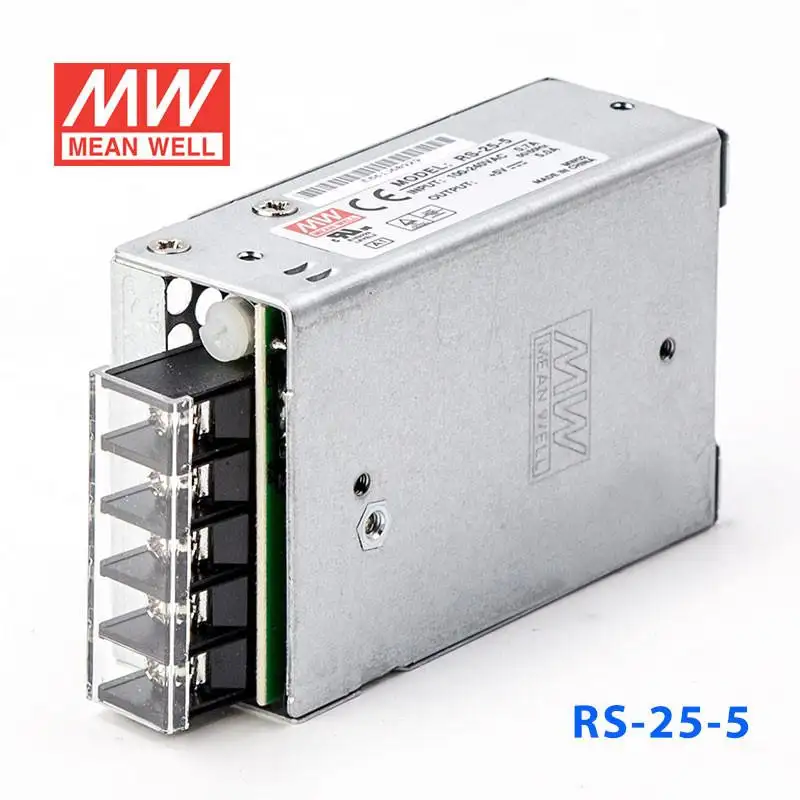

RS-25-5 Mean Well SMPS - 5V 5A - 25W Metal Power Supply

In Stock

Brand: Generic   |   SKU: 2940973

1,036.00

₹ 1,583.00

Save 35%
Tax Included and Shipping Rate Calculated at Checkout

Enter your pincode to check delivery options

Offer & Other Details

  • Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
  • Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
  • Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

Key Specifications:-

  • Output Voltage 5V
  • Type                         Enclosed Type
  • Approx. Wattage 25W
  • Features Standard
  • Series G3(Reliable)
  • Mechanical Form Enclosed
  • Warranty 3 Years Warranty
  • IP Level Non-Waterproof
  • Input Voltage 100-240V auto-select


Features:-

  • No load power consumption <0.5W
  • All using 105°C long life electrolytic capacitors
  • Protections: Short circuit / Overload / Over voltage / Over Temp.
  • Meet EMS EN50082-2/EN61000-6-2
  • heavy industry level (35~150W)
  • Withstand 300VAC surge input for 5 sec.
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • Miniature size, high power density
  • High efficiency, long life and high reliability
  • LED indicator for power on
  • 100% full load burn-in test
  • Suitable for critical applications
  • 3 years warranty


Specifications:-

AC input voltage range 88~264VAC, 125~373VDC
AC inrush current (max.) 30A at 230VAC
DC adjustment range ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
Overload protection 110%~180%
Over voltage protection 115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature -20~+70°C
Vibration 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W)
Connection Terminal block for input and output
Dimension (LxWxH) 78x 51x 28
Case No. 931A
Packing 60pcs /13.0kg



Related Documents:-

RS-25 Datasheet

RS-25-5 Test Report

CE Certificate (RS-25)

UL Certificate (RS-25)

CB Certificate (RS-25)

TUV Certificate (RS-25)

EMC Certificate(RS-25)
