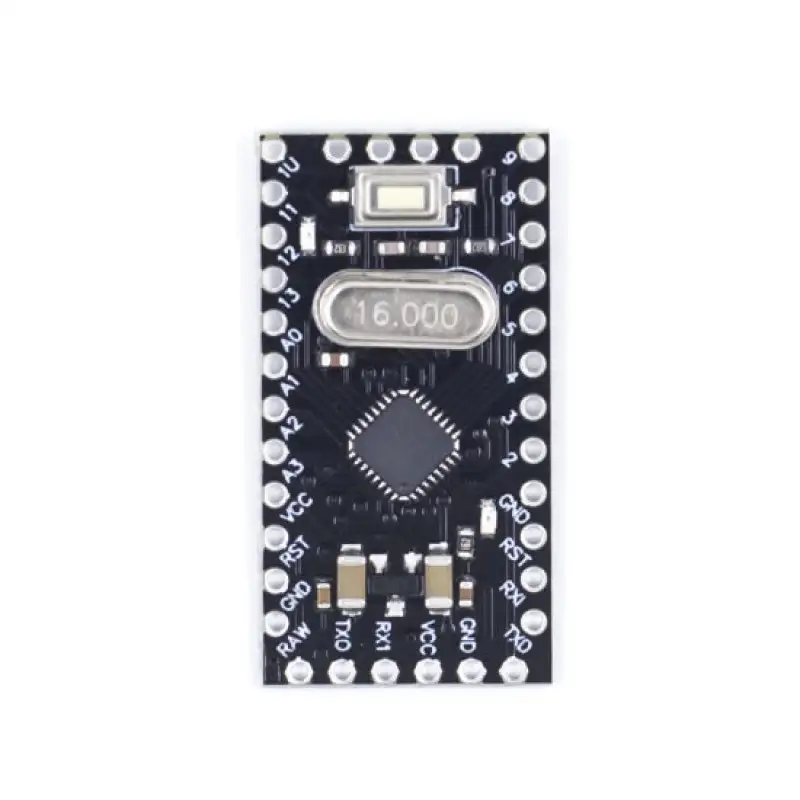

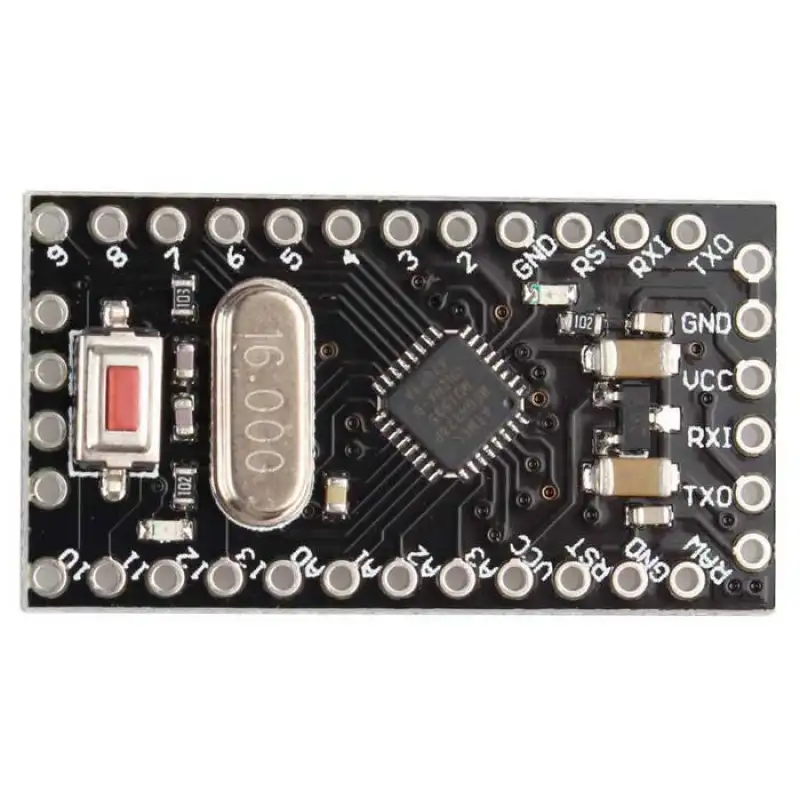

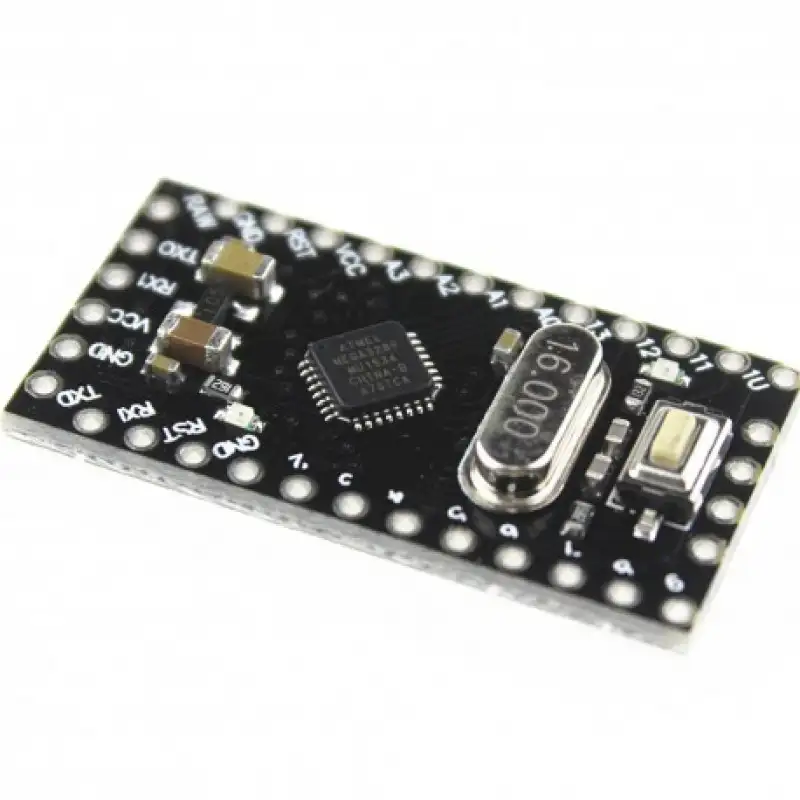

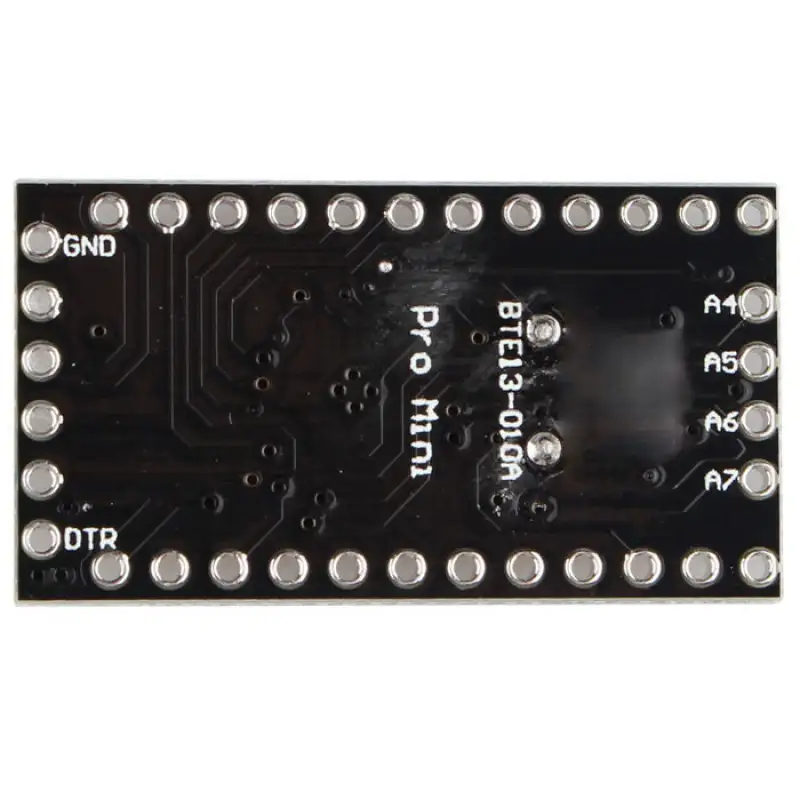

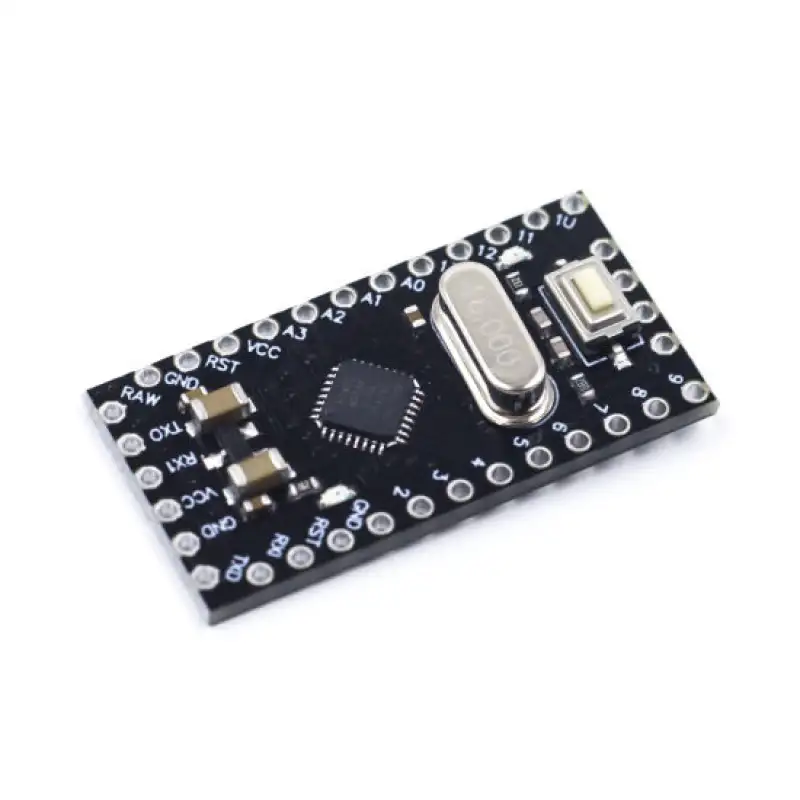

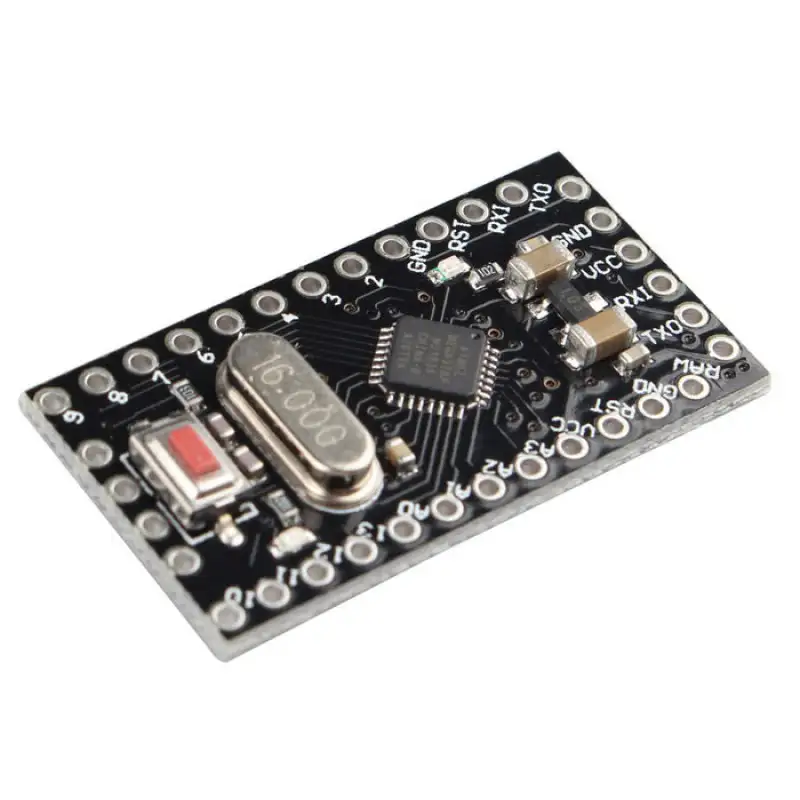

Pro Mini ATMEGA328P 5V/16M Black - Compatible

This is Pro Mini 5V/16MHz is a 3.3V running the 16MHz bootloader. Pro Mini ATMEGA328P comes without connectors. We recommend the first time users star t with the Uno R3.

Its a great board that will get you up and running quickly. The Pro series is meant for users that understand the limitations of system voltage (5V), lack of connectors, and USB off-board.

The Pro Mini is a microcontroller board base on theATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers.

A six pin header can be connected to an FTDI cable to provide USB power and communication to the board. The Pro Mini is intended for semi-permanent installation in objects or exhibitions. The pin layout is compatible with the Mini.

Features :

1. ATmega328 running at 16MHz with external resonator (0.5% tolerance).
2. 100% compatible board.
3. Max Output Current: 150mA.
4. Over-current protected.
5. Reverse polarity protected.
6. 0.8mm Thin PCB.
7. USB connection off-board.
8. Supports auto-reset.
9. Onboard Power and Status LEDs.

Package Includes:

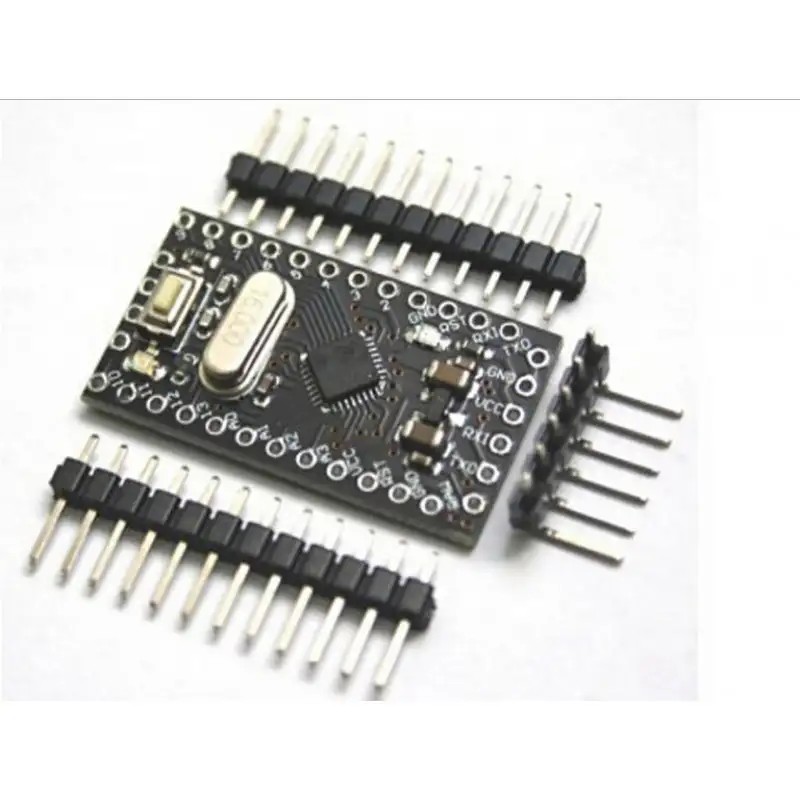

1 x Pro Mini ATMEGA328P 5V/16M Black- Standard version.

1 x Set of Berg connectors

Additional information

DC Input (V)	5 ~ 9
Clock Frequency (MHz)	16
Max Output Current (mA)	150
No. of Analog Pins	8
No. of Digital Pins	14
Length (mm)	33
Width (mm)	18
Height (mm)	6
Weight (gm)	5
