PL2303HX IC - USB to Serial Bridge Controller IC

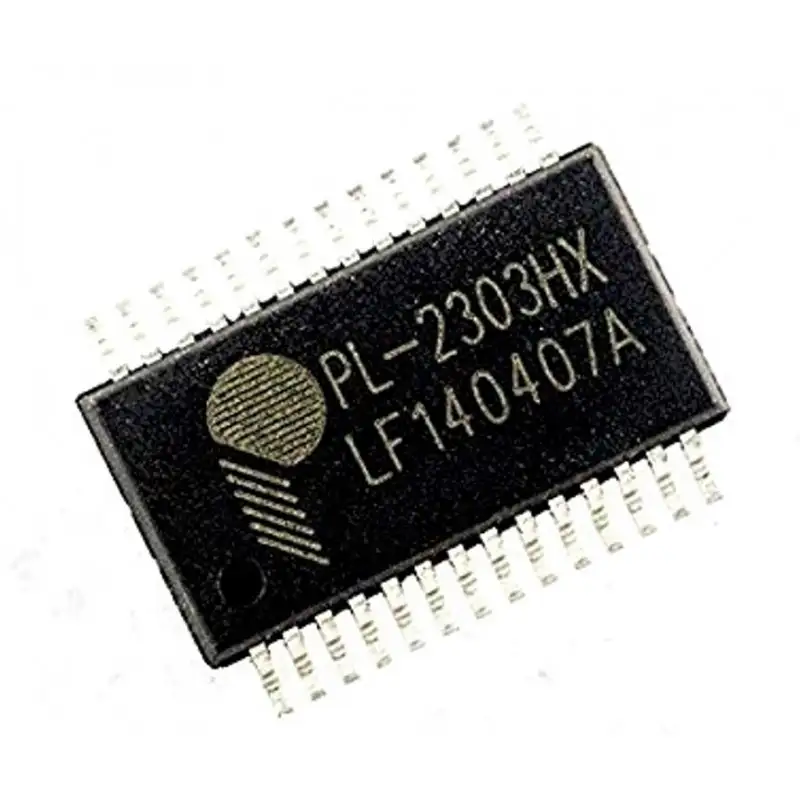

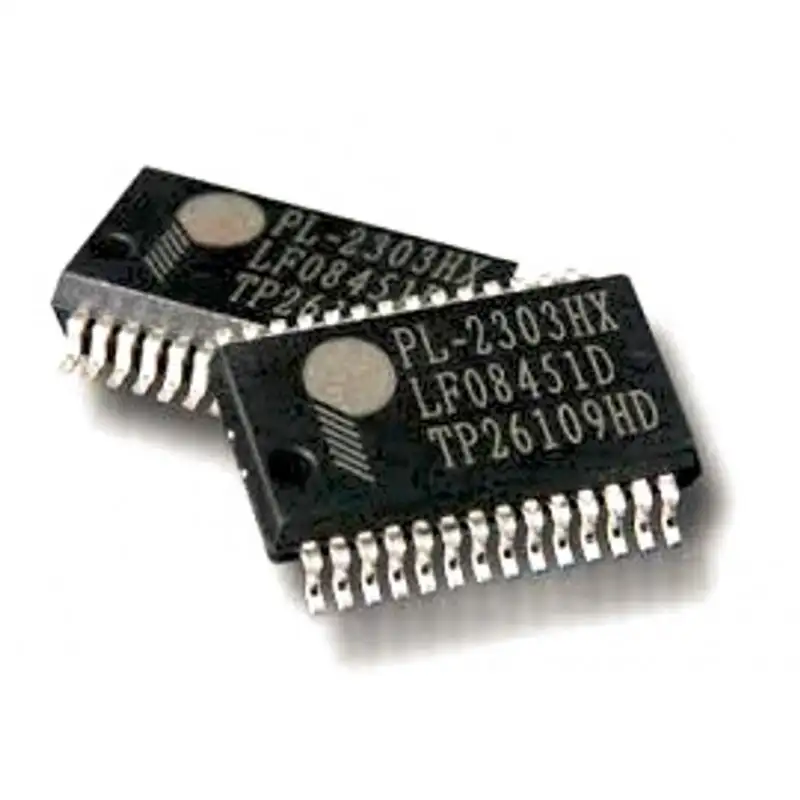

PL2303HX SSOP28 USB-to-Serial Bridge Controller IC provides a convenient solution for connecting an RS232-like full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host. PL-2303HXA highly compatible drivers could simulate the traditional COM port on most operating systems allowing the existing applications based on COM port to easily migrate and be made USB ready.

By taking advantage of USB bulk transfer mode, large data buffers, and automatic flow control, PL-2303HXA is capable of achieving higher throughput compared to traditional UART (Universal Asynchronous Receiver Transmitter) ports. When real RS232 signaling is not required, the baud rate higher than 115200 bps could be used for even higher performance. The flexible baud rate generator of PL-2303HXD could be programmed to generate any rate between 75 bps to 6M bps.

PL-2303HX is exclusively designed for mobile and embedded solutions in mind, providing a small footprint that could easily fit into any connectors and handheld devices. With very small power consumption in either operating or suspend mode, PL-2303HXA is perfect for bus-powered operation with plenty of power left for the attached devices. A flexible signal level requirement on the RS232-like serial port side also allows PL-2303HXA to connect directly to any 3.3V~1.8V range devices.

Features and Specifications:-

• Fully Compliant with USB Specification v2.0 (Full-Speed).
• On-Chip USB 1.1 transceiver, 5V ~ 3.3V regulator, and 12 MHz crystal oscillator.
• Supports RS232-like Serial Interface.
• Extensive Flow Control Mechanism.
• Configurable 512-byte bi-directional data buffer.
• Supports remote wake-up from MODEM input signals.
• Two general-purpose I/O (GPIO) pins.
• Optional external EEPROM for startup device configurations.
• Provides drivers support for Windows, Mac OS, Linux, and WinCE.
• Designed for Windows XP, Vista, 7 Certified Logo Drivers.
• USB-IF Logo Compliant with TID 40002448.
• Small footprint 28-pin SSOP IC package.
• RoHS compliant.

Package Includes:-

1 x PL2303HX IC - USB to Serial Bridge Controller IC
