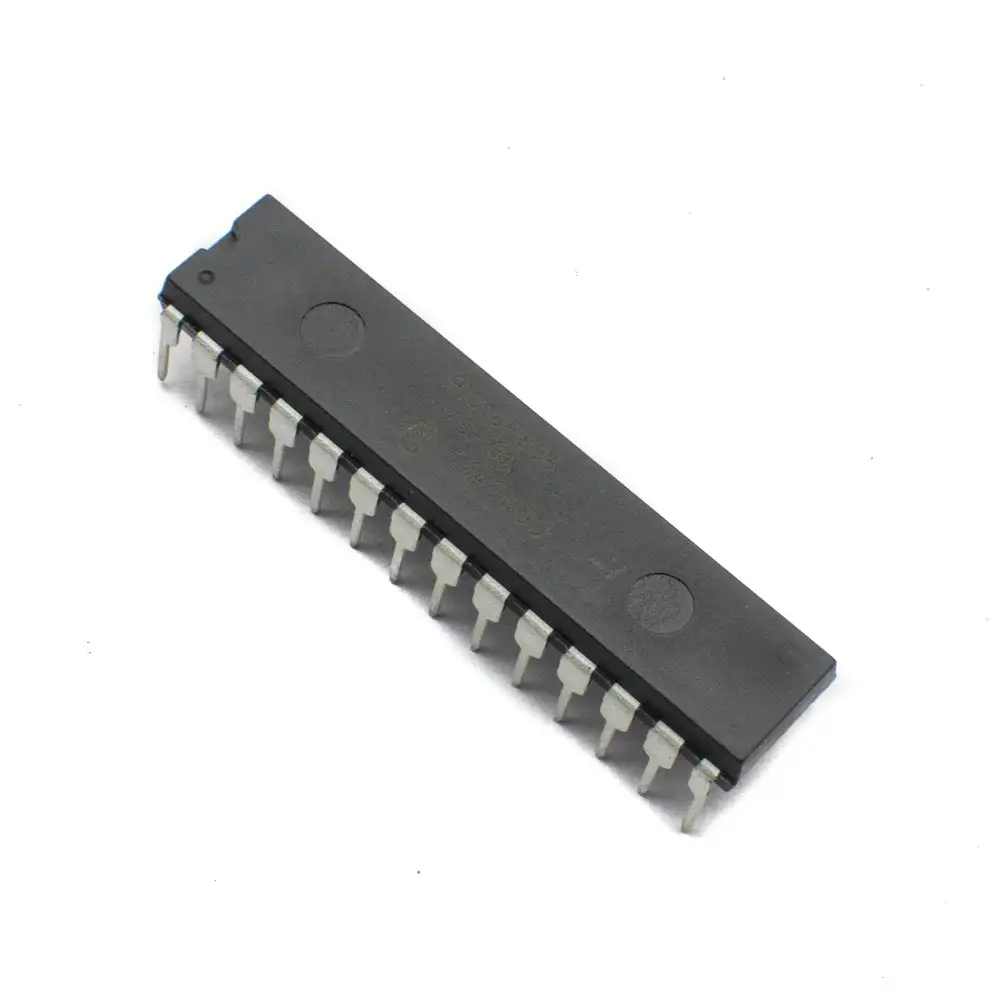

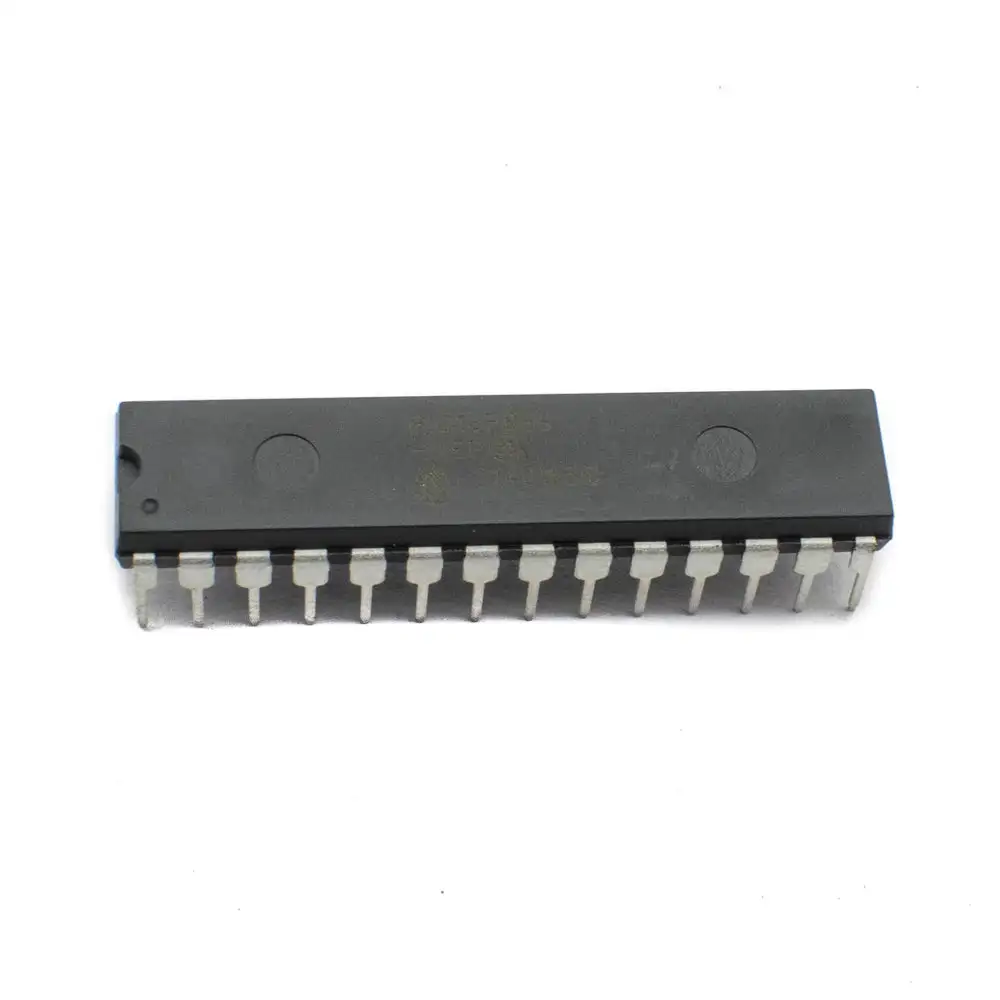

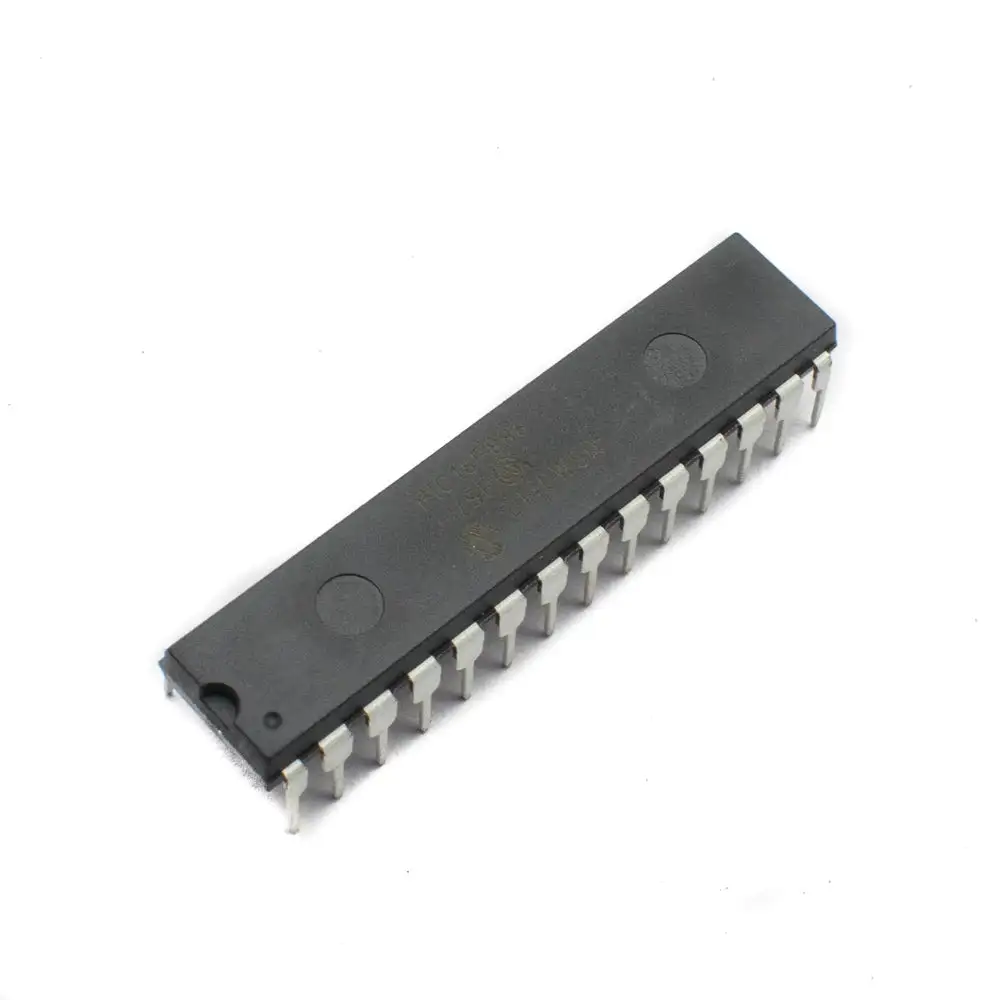

PIC16F886 8-Bit Microcontroller IC

PIC16F886 is a MICROCHIP TECHNOLOGY microcontroller from the 'PIC16F' series. It's an 8-Bit CMOS Microcontroller with nano-Watt Technology. Because of its functionality and low cost, this microcontroller is popular among amateurs and engineers.Because of its rapid flash memory rewrite cycle, the PIC16F886 is an excellent microcontroller for testing and creating applications. There are also a variety of instructional and support resources available online. The controller features 16KBytes of flash memory, which is sufficient for a wide range of applications. With 24 programmable input/output pins designed to handle 20mA current (direct LED driving capabilities), the system can readily communicate with a wide range of peripherals. With the Watchdog timer configured to automatically reset in the event of a mistake, the controller may be used to construct permanent installation applications.

Features

Part Number

PIC16F886 8-Bit

CPU

8-bit

Programmable pins

24

Total pins

28

Communication Interface

SPI Serial Interface(7,14,15,16 PINS) [Can be used for programming this controller]

UART Interface(17,18 PINS) [Can be used for programming this controller]

Two-wire Serial Interface or I2C(14,15 PINS) [Can be used to connect sensors and LCDs]

ICSP or In-Circuit Serial Programming Interface (27,28 Pins) [Can be used for programming this controller]

Analog Comparators

2

PWM channels

4

External Oscillator

Up to 20MHz

CPU Speed

1MIPS @ 1MHz

Power Save Modes

Available

Operating Voltage

2.0V to 5.5V

Maximum current to any I/O pin

IN: 25mA

OUT: 25mA

Operating Temperature

-40°C to +125°C

Package
