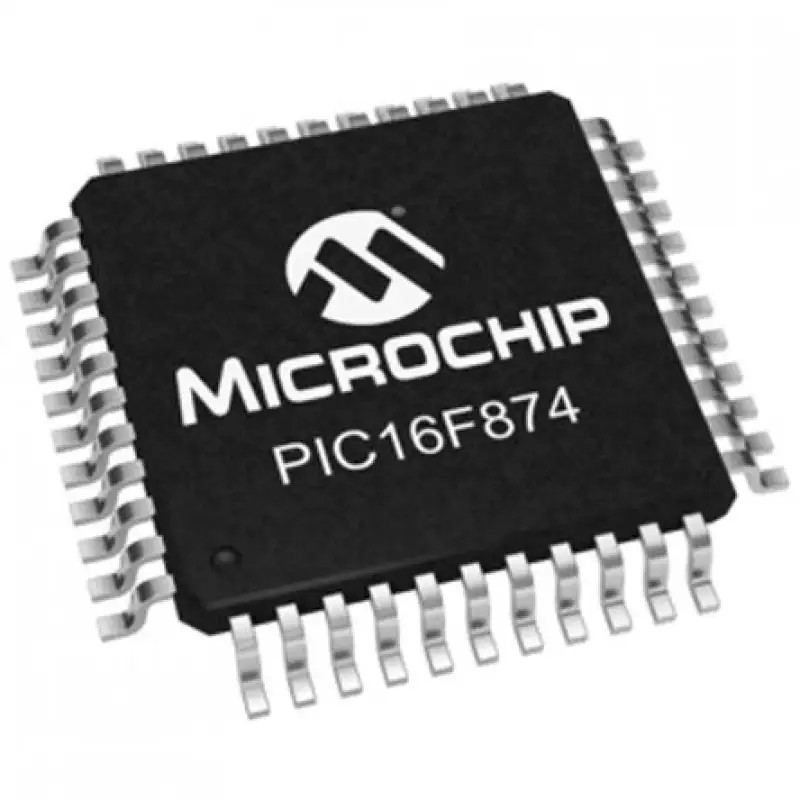

PIC16F874 Microcontroller - SMD TQFP-44 Package

The PIC16F874 family of microcontroller is based upon Microchip Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 3.5 Kbytes program memory, 128 bytes RAM and EEPROM of 64 bytes.

Specifications of PIC16F874 Microcontroller SMD Package:-

• Maximum Operating Temperature: +85 °C

• ADC Resolution: 10bit

• Pulse Width Modulation: 2 (CCP)

• Number of ADC Units: 1

• Number of UART Channels: 1

• Instruction Set Architecture: RISC

• ADCs: 1(8 x 10 bit)

• Package Type: TQFP

• Mounting Type: Surface Mount

• Data Bus Width: 8bit

• Number of PCI Channels: 0

• Width: 10.1mm

• Maximum Number of Ethernet Channels: 0

• Number of PWM Units: 2

• Height: 2.1mm

• Number of USART Channels: 1

• Dimensions: 10.1 x 10.1 x 2.1mm

• Number of Ethernet Channels: 0

• Timer Resolution: 8 bit, 16 bit

• Number of LIN Channels: 0

• Program Memory Type: Flash

• Program Memory Size: 128 B

• Length: 10.1mm

• Device Core: PIC

• Brand: Microchip

• ADC Channels: 8

• Minimum Operating Temperature: -40 °C

• Family Name: PIC16F

• USB Channels: 0

• RAM Size: 192 B

• Timers: 1 x 16 bit, 2 x 8 bit

• Number of CAN Channels: 0

• Pin Count: 44

• Number of Timers: 1, 2

• Number of I2C Channels: 1

• Number of SPI Channels: 1

• Maximum Frequency: 20MHz

• Typical Operating Supply Voltage: 2 → 5.5 V
